Name: Viewsonic TD1655 16" Portable Monitor (IPS, 1920 x 1080, 14ms, 250 cd/m2, 60Hz, Mini HDMI, Type C, Touch)
Brand: Viewsonic
Price: 1399.00 MYR
Availability: InStock

Viewsonic TD1655 16" Portable Monitor (IPS, 1920 x 1080, 14ms, 250 cd/m2, 60Hz, Mini HDMI, Type C, Touch)

-3 %

Description

PRODUCT DESCRIPTION

Viewsonic TD1630-3 16" Touch Portable Monitor

IPS, 1920 x 1080 | 14ms | 250 cd/m2 | 60Hz | Mini HDMI

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
* All Prices Exclude delivery/installation/activation fees. *

PACKAGE CONTENTS

Monitor

ADDITIONAL INFORMATION

View Official Website

Extend Your Content from Mobile Devices

Extend your screen anywhere with your built-in USB Type C laptop, tablet, or phone. It supports Windows, Android, Chrome, MacOS, and iOS.

Anywhere with Laptops, Tablets, and Phones

Audiovisual Extension while Power Charging

Broadcast your built-in Type C mobile device’s multimedia onto a bigger screen and charge (up to 60W) over one cable while powering from an external power bank/outlet over the other USB Type C cable.

*Power Charging:
1. For longer use, connect to an external power bank or outlet.
2. For temporary use, connect to your mobile device only.
1> Over 2 hours when powering from your phone - Tested with the phone's built-in battery at a capacity of 4,000 mAh.
a. The phone is on, but with a blank screen.
b. The portable monitor has a brightness value of 15 and a contrast value of 70.
c. Connected by a USB Type C cable.

2> Over 1.5 hours when powering from your laptop - Tested with the laptop's built-in battery at a capacity of 53,546 mAh.
a. The laptop is on; the screen is on.
b. The portable monitor has a brightness value of 100 and a contrast value of 70.
c. Connected by a USB Type C cable.

Flexible Setup with 2 x USB Type C

Touch Feedback Control

Control in a large screen with touch gives more intuitive and efficient reactions. The attached magnetic touch pen allows you to draw and write notes without leaving fingerprints.

*One-point touch support for MacOS; does not apply to iOS & iPadOS devices.

10-Point Fingertip/Touch Pen

Portable Size for Work & Fun

Larger, 16” display than most common laptops and weighing less than 1 kg. It perfectly outfits your mobile workplace, and can be used for multimedia play when taking a break.

16” Display, < 1 KG, < 1 CM

Working in Your Preferred Angles

View in a wide range of angles by adjusting the attached stand.

Up to 60 Degree Tilt

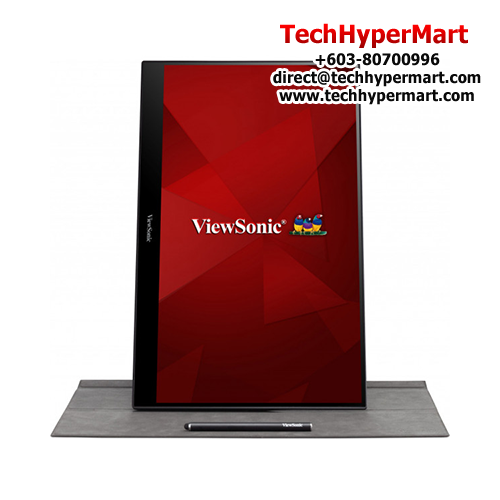

Supports Vertical Layout

Besides common horizontal content, you may setup a pivot screen for table-reviewing, programming, photo-editing, gaming, etc.

Pivot-able Display

Magnetic Cover and Mat

Avoid damage during carry, the detachable magnetic cover is easy to put on. Used as a mat, its anti-slip surface prevents the monitor from sliding away.

Anti-slip Cover

Robust One-piece Design

With the metal case and endurable hinge, the fold-able aluminum stand makes the whole monitor a one-piece design.

Metal Case & Aluminum Stand

Anti-scratch Touch Screen

Built-in 6H hardness screen, it’s resistant to surface damage, even if accidently scratched by your keys.

6H Hardness Screen

Dimensions & I/O Ports

USB Type C x2
Mini HDMI
Audio Out
Joy Key

Warranty
- 3 Years Viewsonic Warranty
- Manufactured and warranty provided by Viewsonic

PRODUCT SPECIFICATIONS

Model	TD1655 (Touch)
LCD PANEL	Display Size (in.): 16 Viewable Area (in.): 15.6 Panel Type: IPS Technology Resolution: 1920 x 1080 Resolution Type: FHD Static Contrast Ratio: 800:1 (typ) Dynamic Contrast Ratio: 50M:1 Light Source: LED Brightness: 250 cd/m2 (typ) Colors: 262K Color Space Support: 6 bit true Aspect Ratio: 16:9 Response Time (Typical GTG): 6.5ms Response Time (GTG w/OD): 6.599ms Response Time (Typical Tr+Tf): 30ms Viewing Angles: 178º horizontal, 178º vertical, CR>5; 170º horizontal, 170º vertical, CR>10 Backlight Life (Hours): 15000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 60 Blue Light Filter: Yes Color Gamut: NTSC: 45% size (Typ), sRGB: 64% size (Typ) Pixel Size: 0.179 mm (H) x 0.179 mm (V) Touch Screen: Projected Capacitive, 10-point multi-touch Surface Treatment: Glossy w/ anti-finger print, Hard Coating (≧6H) Cover Glass Thickness: 0.8mm
INPUT SIGNAL	Frequency Horizontal: 15 ~ 82KHz Frequency Vertical: 50 ~ 75Hz
COMPATIBILITY	PC Resolution (max): 1920x1080 Mac® Resolution (max): 1920x1080 PC Operating System: Windows 10 certified; macOS tested Mac® Resolution (min): 1920x1080
CONNECTOR	USB 3.1 Type C: 2 3.5mm Audio Out: 1 Mini HDMI: 1 Power in: External power adapter
AUDIO	Speaker : 0.8W x 2
VIDEO INPUT	Digital Sync: TMDS - mini HDMI (v1.4), Micro-Packet - Type C
USB	Upstream : Type C
POWER	Eco Mode (Conserve): 6W Eco Mode (optimized): 6.9W Consumption (typical): 8W Consumption (max): 8.3W Voltage: AC 100-240V, 50/60 Hz Stand-by: 0.5W Power Supply: External
ERGONOMICS	Tilt (Forward/Back): 20º / 60º
SPECIAL FEATURES	10-point Optical Touch Display
OPERATING CONDITIONS	Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90%
DIMENSIONS (L X H X P)	Packaging (mm): 440 x 288 x 89 Physical (mm): 355 x 223 x 16 Physical Without Stand (mm): 355 x 223 x 16
WEIGHT	Net (kg): 1 Net Without Stand (kg): 1 Gross (kg): 2.3
WALL MOUNT	VESA® : 75mm x 75mm
REGULATIONS	cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI
* Prices, Features, Package Content and Specifications are subject to change without prior notification. *

Viewsonic TD1655 16" Portable Monitor (IPS, 1920 x 1080, 14ms, 250 cd/m2, 60Hz, Mini HDMI, Type C, Touch)

Specifications
Reviews

Monitor Technical Information
Monitor Control	Physical Controls: Up, Right, Down, Left, Power On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Monitor Resolution	1920 x 1080
Monitor Panel Type	IPS
Monitor Refresh Rate HZ	60Hz
Monitor Brightness [cd/m²]	250 cd/m2
Monitor Response Time	14ms
Monitor Aspect Ratio	16:9
Monitor Contrast Ratio	50,000,000:1
Monitor Video
Monitor Tearing Prevention Technology	Speaker
Monitor Interface
Monitor Ports / Connectivity	Mini HDMI, IPS
Monitor Audio
Monitor Input/Output Connector‎	Digital Sync: TMDS - mini HDMI (v1.4), Micro-Packet - Type C
Monitor Additional 1
Monitor Dimensions	Packaging (mm): 440 x 288 x 89 Physical (mm): 355 x 223 x 16 Physical Without Stand (mm): 355 x 223 x 16
Monitor Weight	Net (kg): 1
