Name: Epson LQ-2090IIN Dot Matrix Printer (A3, 24-pin, 136 columns, 487cps (10cpi), 1+6 copies, Parallel, USB Port, Network)
Brand: Epson
SKU: LQ-2090IIN
Price: 3749.00 MYR
Availability: InStock

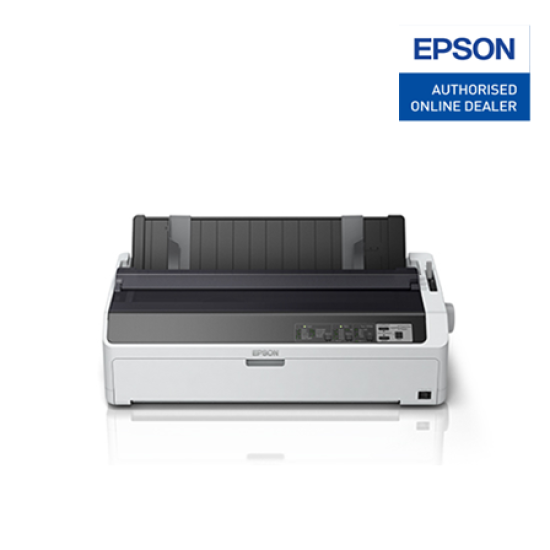

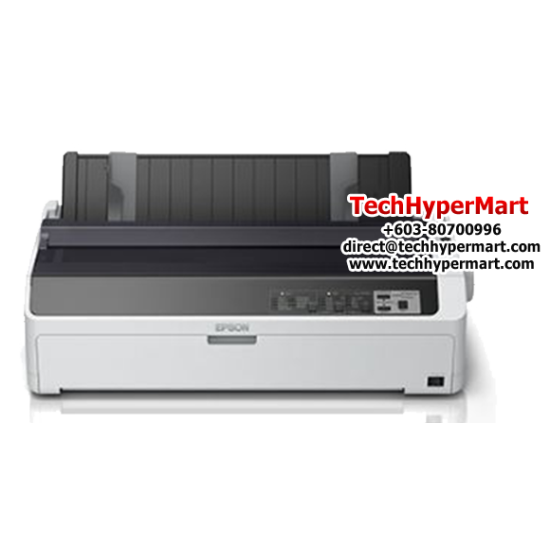

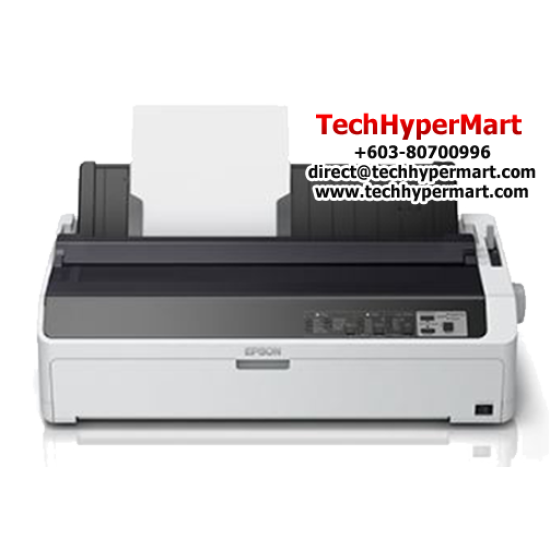

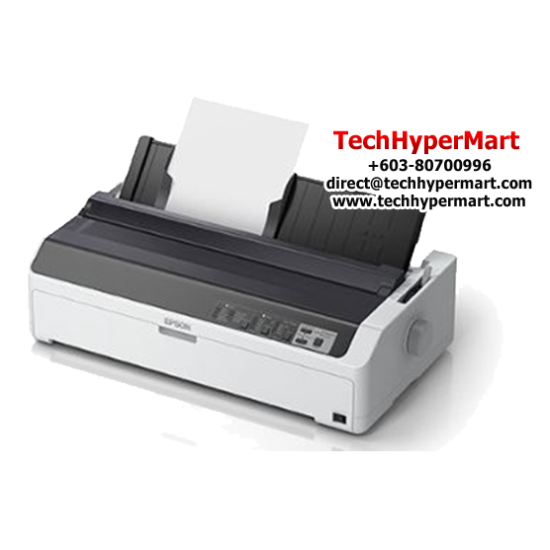

Epson LQ-2090IIN Dot Matrix Printer (A3, 24-pin, 136 columns, 487cps (10cpi), 1+6 copies, Parallel, USB Port, Network)

-3 %

Description

PRODUCT DESCRIPTION

Epson LQ-2090IIN Dot Matrix Printer

24-pin Wide Carriage | Speed: up to 550 cps (10cpi) | MTBF: 25,000 Power on Hours | USB and Parallel ports

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

Dot Matrix Printer

ADDITIONAL INFORMATION

View Official Website

Warranty
- 1 year Epson Warranty
- Manufactured and warranty provided by Epson

SPECIFICATIONS

Model	Printer LQ-2090IIN Dot Matrix printer
Printing Technology	Print Method: Impact dot matrix Control Panel: 6 switches and 10 LEDs Print Direction: Bi-direction with logic seeking Number of Pins in Head: 24 pins Control Code: ESC/P2, IBM PPDS
Print Speed	Ultra High Speed Draft: 10cpi: 550cps High Speed Draft: 10 / 12 cpi: 487 / 584 cps Draft: 10 / 12 cpi: 366 / 439 cps Letter Quality: 10cpi: 121cps
Reliability	Printhead life: 400 million strokes / wire Mean Print Volume Between Failure (MVBF): 50 million lines (except printhead) Mean Time Between Failure (MTBF): 25,000 Power On Hours (POH) (25% Duty)
Print Characteristics	Character Sets: 1 Italic and 12 graphical character tables: Italic table, PC437 (US, Standard Europe), PC850 (Multilingual), PC860 (Portuguese)*1 PC861 (Icelandic), PC865 (Nordic), PC863 (Canadian-French), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC858, ISO 8859-15 Bitmap Fonts: 10, 12, 15 cpi Scalable Fonts: Epson Roman / Sans Serif / Roman T / Sans Serif H: 10.5 pt., 8 pt. - 32 pt. (every 2 pt.) Barcode: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET
Paper Path	Manual Insertion: Front or rear in-top out Push Tractor: Front or rear in, top out Pull Tractor: Front, rear or bottom in, top out
Paper Media	Cut Sheet (Single Sheet): Entry: Front Length: 100 - 420 mm \| (3.9 - 16.5”) Width: 100 - 420 mm \| (3.9 - 16.5”) Thickness: 0.065 - 0.14 mm \| (0.0025 - 0.0055”) Entry: Rear Length: 100 - 420 mm \| (3.9 - 16.5”) Width: 100 - 420 mm \| (3.9 - 16.5”) Thickness: 0.065 - 0.14 mm \| (0.0025 - 0.0055”) Cut Sheet (Multi-part Forms): Entry: Front Length: 100 - 420 mm \| (3.9 - 16.5”) Width: 100 - 420 mm \| (3.9 - 16.5”) Thickness: 0.12 - 0.46 mm \| (0.0047 - 0.018”) Copies: 1 Original + 5 copies Continuous Paper (Single Sheet / Multi-part): Entry: Front, Rear, Bottom Length: 101.6 - 558.8 mm \| (4.0 - 22.0”) Width: 101.6 - 406.4 mm \| (4.0 - 16.0”) Thickness: 0.065 - 0.49 mm \| (0.0025 - 0.019”) Copies: 1 Original + 6 copies Envelope (No.6): Entry: Rear Length: 92mm \| (3.6”) Width: 165mm \| (6.5”) Thickness: 0.16 - 0.52 mm \| (0.0063 - 0.0205”) Envelope (No.10): Entry: Rear Length: 105mm \| (4.1”) Width: 241mm \| (9.5”) Thickness: 0.16 - 0.52 mm \| (0.0063 - 0.0205”) Label (Base Sheet): Entry: Bottom Length: 101.6 - 558.8 mm \| (4.0 - 22.0”) Width: 101.6 - 406.4 mm \| (4.0 - 16.0”) Thickness: 0.16 - 0.19 mm \| (0.0063 - 0.0075”) Card: Entry: Front, Rear Length: 100 - 148 mm \| (3.9 - 5.8”) Width: 100 - 148 mm \| (3.9 - 5.8”) Thickness: 0.22mm \| (0.0087”) Roll Paper: Entry: Rear Width: 216mm \| (8.5”) Thickness: 0.07 - 0.09 mm \| (0.0028 - 0.035”) Line Spacing: 4.23mm (1/6”) or programmable in increments of 0.0706mm (1/360”)
Electrical Specifications	Rated Voltage: AC 220 - 240 V Rated Frequency: 50Hz - 60Hz Operating: Approx. 49W Sleep: Approx. 0.5W
Environmental Conditions (Operating)	Temperature: 5 - 35 °C 3 Humidty: 10 - 80% RH 3
Acoustic Noise	Acoustic Noise: 55dB
Input Data Buffer	Input Data Buffer: 128KB
Interface	Interface: USB 2.0, Bi-directional parallel (IEEE-1284 nibble mode supported), Serial, 100base-Tx wired LAN
Printable Columns	Pitch: 10cpi: 136 columns
Ribbon Cartridge	Standard: Fabric Ribbon Cartridge (Black) Ribbon Life: Approx. 8 million Characters*2
Supported Operating System	Printer Driver: Microsoft Windows XP / Vista / 7 / 8 / 10 Utility: Epson Status Monitor 3: Microsoft Windows XP / Vista / 7 / 8 / 10 Epson Setting Utility: Microsoft Windows XP / Vista / 7 / 8 / 10
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*

Epson LQ-2090IIN Dot Matrix Printer (A3, 24-pin, 136 columns, 487cps (10cpi), 1+6 copies, Parallel, USB Port, Network)

Specifications
Reviews

Dot-Matrix Specifications
Dot-Matrix Control Panel	6 switches and 10 LEDs
Dot-Matrix Print Direction	Bi-direction
Dot-Matrix Print Method	Impact dot matrix
Dot-Matrix Print Speed	550cps (high speed draft@10cpi)
Dot-Matrix Printhead Type	24 pins
Dot-Matrix Technology2	Dot Matrix printer
Dot-Matrix Additional Specs
Dot-Matrix Easy connectivity	Parallel, USB Port, Serial, built in 100base-Tx wired LAN
Dot-Matrix Mean Time Between Failure	25,000 Power On Hours
Dot-Matrix Multi-part flexibility	1+5 copies
