APC Smart-UPS X 1500VA Rack/Tower LCD 230V (SMX1500RMI2U)

APC Smart-UPS X 1500VA Rack/Tower LCD 230V (SMX1500RMI2U)
APC Smart-UPS X 1500VA Rack/Tower LCD 230V (SMX1500RMI2U)
APC Smart-UPS X 1500VA Rack/Tower LCD 230V (SMX1500RMI2U)
APC Smart-UPS X 1500VA Rack/Tower LCD 230V (SMX1500RMI2U)
APC Smart-UPS X 1500VA Rack/Tower LCD 230V (SMX1500RMI2U)
APC Smart-UPS X 1500VA Rack/Tower LCD 230V (SMX1500RMI2U)
Product Description Product Description
Product Description

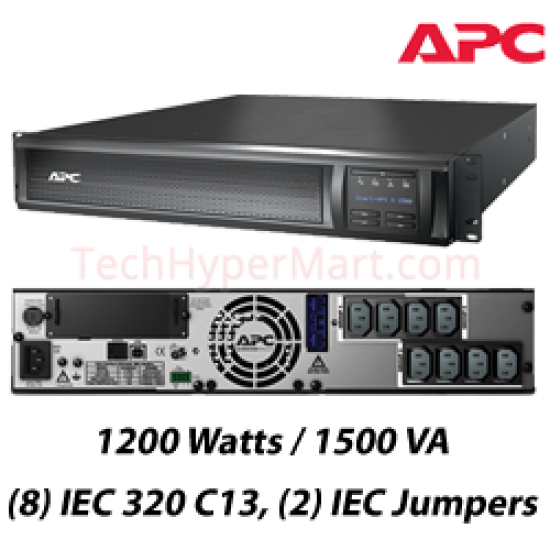

APC Smart-UPS X 1500VA Rack/Tower LCD 230V (SMX1500RMI2U)

1200 Watts / 1500 VA | Nominal Voltage 230V | (8) IEC 320 C13, (2) IEC Jumpers Output Connections | IEC-320 C14 Input Connections







* Order Online for faster procedure & shipping.
* Please Call to make confirmation before coming to shop to ensure stock availability.
* Model, specification, product code, images & product color may vary from actual products.

Package Contents
  • UPS



Additional Information
Features

SMX1500RMI2U Features

- EPO
Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.

- High online efficiency
Reduces utlility costs, generates less heat.

- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

- High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.

- Energy meter
Provides actual kilowatt hours of usage for energy conscious users.

- Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

- Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

- Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime.

- Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

- Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

- Scalable runtime
Allows additional run time to be quickly added as needed.

- Cold-start capable
Provides temporary battery power when the utility power is out.

- Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

- Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

- SmartSlot
Customize UPS capabilities with management cards.

- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Availability

- Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

- Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

- Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

- Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

- Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

- Disconnected battery notification
Warns when a battery is not available to provide backup power.

Manageability

- Network manageable
Provides remote power management of the UPS over the network.

- Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.

- LED status indicators
Quickly understand unit and power status with visual indicators.

- Serial connectivity
Provides management of the UPS via a serial port.

- USB connectivity
Provides management of the UPS via a USB port (not available on all models).

- Disconnected battery notification
Warns when a battery is not available to provide backup power.

Serviceability

- User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

- Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

- Predictive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.

- Resettable circuit breakers
Enables a quick recovery from overload events.

- Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Adaptability

- Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

- Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Safety

- Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Warranty
- 3 Year for UPS, 2 Year for Battery (APC Service Center)
- TechHyperMart Products Warranty Terms & Conditions

Specifications

Specifications
* View official website *
Model SMX1500RMI2U
Output  Output Power Capacity: 1200 Watts / 1500 VA

Max Configurable Power: 1200 Watts / 1500 VA

Nominal Output Voltage: 230V

Output Voltage Distortion: Less than 5%

Output Frequency (sync to mains): 50/60Hz +/- 3 Hz

Topology: Line Interactive

Waveform Type: Sine wave

Output Connections:
(8) IEC 320 C13
(2) IEC Jumpers
Input  Nominal Input Voltage: 230V

Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)

Input Connections: IEC-320 C14

Cord Length: 1.83 meters

Input voltage range for main operations: 160 - 286V

Input voltage adjustable range for mains operation: 151 - 302V

Input Breaker Capacity: 10 A
Batteries & Runtime  Battery Type:
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time: 3 hour(s)

Replacement Battery: APCRBC115

RBC™ Quantity: 1

Extended Run Options:
APC Smart-UPS X 1500VA Rack/Tower LCD 230V
Communications & Management  Interface Port(s): SmartSlot, USB

Available SmartSlot™ Interface Quantity: 1

Control panel: Multi-function LCD status and control console

Audible Alarm:
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO): Yes
Surge Protection and Filtering  Surge energy rating: 645 Joules

Filtering:
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical  Maximum Height: 89.00 mm

Maximum Width: 432.00 mm

Maximum Depth: 490.00 mm

Rack Height: 2U

Net Weight: 24.82 KG

Shipping Weight: 30.00 KG

Shipping Height: 246.00 mm

Shipping Width: 589.00 mm

Shipping Depth: 620.00 mm

Color: Black

Units per Pallet: 8.00
Environmental  Operating Environment: 0 - 45 °C

Operating Relative Humidity: 0 - 95%

Operating Elevation: 0-3000 meters

Storage Temperature: -15 - 45 °C

Storage Relative Humidity; 0 - 95%

Storage Elevation: 0-15000 meters

Audible noise at 1 meter from surface of unit: 40.00 dBA

Online Thermal Dissipation: 133.00 BTU/hr
Conformance  Regulatory Approvals:
C-tick, CE, EN 50091-1, EN 50091-2, VDE

Standard Warranty:
3 years repair or replace (excluding battery) and 2 year for battery
Sustainable Offer Status  RoHS: Compliant

REACH: Contains No SVHCs
* Features, Package Content and Specifications are subject to change without prior notification.*


APC Smart-UPS X 1500VA Rack/Tower LCD 230V (SMX1500RMI2U)
AVR / UPS Specifications
AVR / UPS Backup Time -
AVR / UPS Capacity 1500 VA
AVR / UPS Output (8) IEC 320 C13 (2) IEC Jumpers
AVR / UPS Protection
AVR / UPS Protection Surge Protection and Filtering
AVR / UPS Dimensions
AVR / UPS Dimension Maximum Height: 89.00 mm Maximum Width: 432.00 mm Maximum Depth: 490.00 mm
AVR / UPS Weight 24.82 KG
