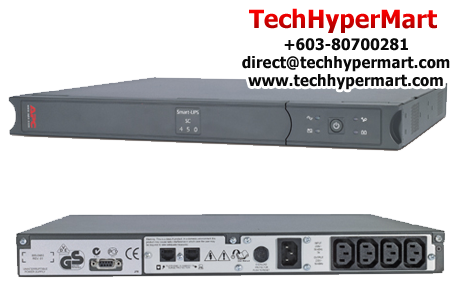

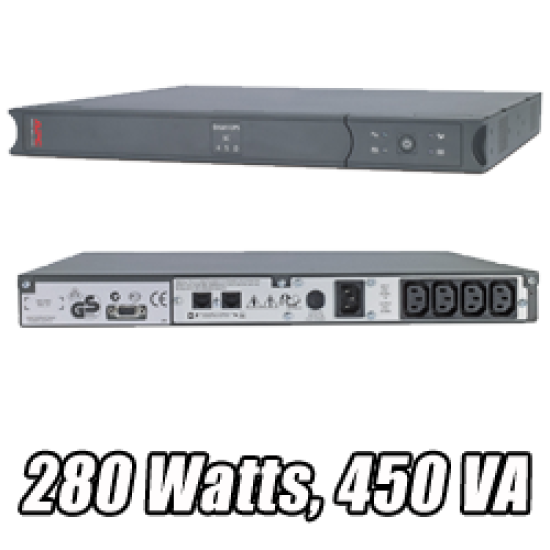

APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower (SC450RMI1U)

APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower (SC450RMI1U)
APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower (SC450RMI1U)
APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower (SC450RMI1U)
APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower (SC450RMI1U)
APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower (SC450RMI1U)
APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower (SC450RMI1U)
Product Description
APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower (SC450RMI1U)

280 Watts, 450 VA | Input & Output voltage 230V | DB-9 RS-232





*Order Online for faster procedure & shipping.
* Please Call to make confirmation before coming to shop to ensure stock availability.
* Model, specification, product code, images & product color may vary from actual products.
Package Contents
  • UPS
  • User Manual

Additional Information
Features

Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Multiple mounting methods
Allows for standardization on one product for use in different environments.

Front-access servicing
Simplifies installation and maintenance while minimizing space requirements.

Availability
Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Manageability
Network manageable

Provides remote management of the UPS over the network.

Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.

LED status indicators
Quickly understand unit and power status with visual indicators.

Serial Connectivity
Provides management of the UPS via a serial port.

USB connectivity
Provides management of the UPS via a USB port (not available on all models).

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Serviceability
User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Predictive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.

Resettable circuit breakers
Enables a quick recovery from overload events.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Adaptability
Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Safety
Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Warranty
- 2 years Manufactorer Limited Warranty

Specifications

Specifications
* View Official Website *
Model SC450RMI1U
Output  Output Power Capacity:280 Watts / 450 VA

Max Configurable Power:280 Watts / 450 VA

Nominal Output Voltage:230V

Output Voltage Distortion:Less than 5% at full load

Output Frequency (sync to mains):
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal

Topology:Line Interactive

Waveform Type:Stepped approximation to a sinewave

Output Connections:
(4) IEC 320 C13 IEC 320 C13
(2) IEC Jumpers
Input  Nominal Input Voltage:230V

Input Frequency:50/60 Hz +/- 3 Hz (auto sensing)

Input Connections:IEC-320 C14

Input voltage range for main operations:160 - 286V

Input voltage adjustable range for mains operation:151 - 302V
Batteries & Runtime  Battery Type:
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time:5 hour(s)

Replacement Battery:RBC18

RBC™ Quantity:1
Communications & Management  Interface Port(s):DB-9 RS-232

Control panel:
LED status display with On Line : On Battery : Replace Battery and Overload indicators

Audible Alarm:
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO):Optional
Surge Protection and Filtering  Surge energy rating:320 Joules

Filtering:
Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449

Data Line Protection:
RJ-11 2-Way Modem/Fax/DSL splitter with protection (four wire dual lines), RJ45 10/100 Base-T Ethernet protection
Physical  Maximum Height:44.00 mm

Maximum Width:432.00 mm

Maximum Depth:383.00 mm

Rack Height:1U

Net Weight:10.18 KG

Shipping Weight:11.73 KG

Shipping Height:164.00 mm

Shipping Width:476.00 mm

Shipping Depth:589.00 mm

Color:Grey

Units per Pallet:24.00
Environmental  Operating Environment:0 - 40 °C

Operating Relative Humidity:0 - 95%

Operating Elevation:0-3000 meters

Storage Temperature:-15 - 45 °C

Storage Relative Humidity:0 - 95%

Storage Elevation:0-15000 meters

Audible noise at 1 meter from surface of unit:38.00 dBA

Online Thermal Dissipation:38.00 BTU/hr
Conformance  Regulatory Approvals:C-tick, CE, GOST, VDE

Standard Warranty:2 years repair or replace
Sustainable Offer Status RoHS:Compliant

PEP:Available in Documentation tab

EOLI:Available in Documentation tab

Other Environmental Compliance:China RoHS
* Features, Package Content and Specifications are subject to change without prior notification.*
APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower (SC450RMI1U)
AVR / UPS Specifications
AVR / UPS Backup Time -
AVR / UPS Capacity 450VA
AVR / UPS Output (4) IEC 320 C13 IEC 320 C13 (2) IEC Jumpers
AVR / UPS Protection
AVR / UPS Protection Surge Protection and Filtering
AVR / UPS Dimensions
AVR / UPS Dimension Maximum Height:44.00 mm Maximum Width:432.00 mm Maximum Depth:383.00 mm
AVR / UPS Weight 10.18 KG
