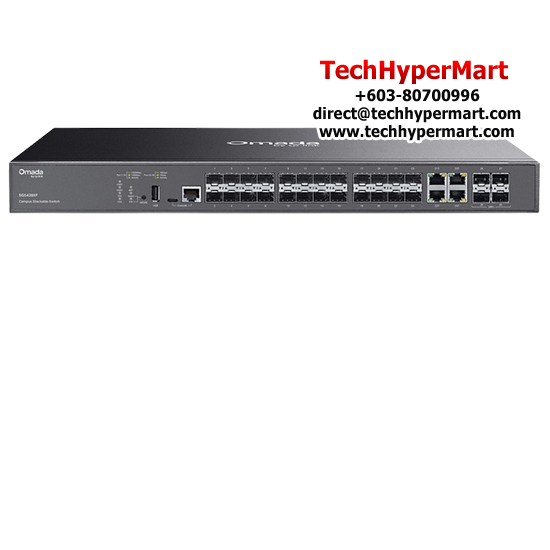

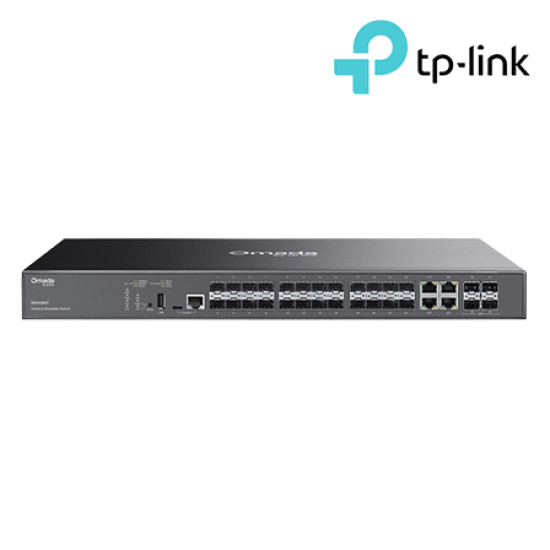

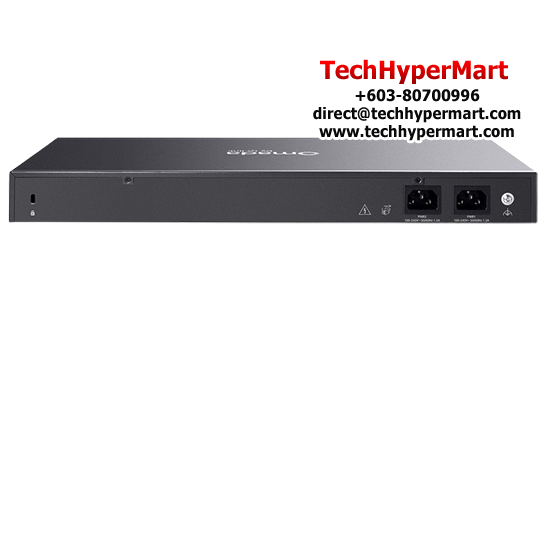

Name: TP-Link SG5428XF Managed Switch (24-Port, 4× Gigabit RJ45/SFP Combo Ports)
Brand: TP-Link
SKU: SG5428XF
Price: 5899.00 MYR
Availability: InStock

TP-Link SG5428XF Managed Switch (24-Port, 4× Gigabit RJ45/SFP Combo Ports)

Description

PRODUCT DESCRIPTION

TP-Link SG5428XF Managed Switch

24-Port | 4× Gigabit RJ45/SFP Combo Ports

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

Switches

ADDITIONAL INFORMATION

View Official Website

Warranty
- 3 Years TP-Link Warranty
- Manufactured and warranty provided by TP-Link

SPECIFICATIONS

Model	SG5428XF
HARDWARE FEATURES	Interface • 20× 100/1000 Mbps SFP Slots • 4× Gigabit RJ45/SFP Combo Ports • 4× 1/10 Gbps SFP+ Slots* • 1× USB 2.0 Port • 1× RJ45 Console Port • 1× USB Type-C Console Port Fan Quantity 1 Fan Power Supply 100-240 V~50/60 Hz Dimensions ( W x D x H ) 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) Mounting Rackmountable Max. Power Consumption • 28.3 W (220V/50Hz @ 25 °C) • 28.98 W (110V/60Hz @ 25 °C) Max. Heat Dissipation • 96.503 BTU/hr (220V/50Hz @ 25 °C) • 98.822 BTU/hr (110V/60Hz @ 25 °C)
PERFORMANCE	Switching Capacity 128 Gbps per Unit Stacking • Stacking Number: 4 • Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) • Stacking Bandwidth: Up to 80 Gbps (4 stacking ports) Packet Forwarding Rate 95.23 Mpps MAC Address Table 16 K Packet Buffer Memory 12 Mbit Jumbo Frame 9 KB
SOFTWARE FEATURES	Quality of Service • Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Storm Control • Voice VLAN • User-Defined OUI • Smoother Performance • Action for Flows - QoS remark (802.1P Remark, DSCP Remark) L3 Features • IP Interfaces: - IPv4: Max 128, IPv6: Max 128 • ARP - Static Entries 512 - Dynamic Entries 3,600 • ND Dynamic Entries 3,600 • Static Route - IPv4: Max 512, IPv6: Max 128 • Host Route - IPv4: Max 1,024, IPv6: Max 890 • Network Route - IPv4: Max 1,796, IPv6: Max 450 • RIP: Version v1/v2 • RIPng • OSPF: Version V2/V3 • Proxy ARP • DHCP Server: - Max 64 IP Pools - Max 8,000 Leases - Max 1,000 Manual Binding Entries • DHCP Relay: - Relayed Interface - Relayed VLAN L2 and L2+ Features • Link Aggregation • Spanning Tree Protocol • Port-based and VLAN-based Loopback Detection • 802.3x Flow Control • ERPS • Mirroring • RSPAN • MAC Address Table • Multicast - IGMP Snooping - MLD Snooping - L2 Multicast Table: Max 2,000 - Fast Leave - Multicast VLAN Registration (MVR) - Static Multicast Groups - Multicast Filtering Advanced Features • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† ISP Features: • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • DDM • sFlow VLAN • Max 4K VLAN Group (802.1q VLAN) • 802.1Q Tagged VLAN • MAC VLAN Entries: 60 • Multicast VLAN • Management VLAN • VLAN VPN (QinQ): Max 256 entries • GVRP • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries • Voice VLAN • Private VLAN Security • Port Isolation • CPU-Defend • ARP Inspection (Dynamic ARP Inspection) • DoS Defend • IP-MAC-Port Binding -1,024 Entries - DHCP Snooping - ARP Scanning - ARP Detection - IPv4 Source Guard • IPv6-MAC-Port Binding -1,024 Entries - DHCPv6 Snooping - ND Snooping - ND Detection - IPv6 Source Guard • DHCP Filter • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unknown-unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - RADIUS authentication and accountability support • AAA (including TACACS+) • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv2 • IP/Port/MAC-based access control
Management Features	Omada App Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management • Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later) • Omada Hardware Controller (Requires built-in version 5.15.20 or later) • Omada Software Controller (Requires built-in version 5.15.20 or later) Cloud Access Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning Yes. Requiring the use of the Omada Cloud-Based Controller. Management Features • Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log • IEEE 802.3az Energy Efficient Ethernet (EEE)
OTHERS	System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. Environment • Operating Temperature: -5 °C to 45 °C (23 °F to 113 °F) • Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*
