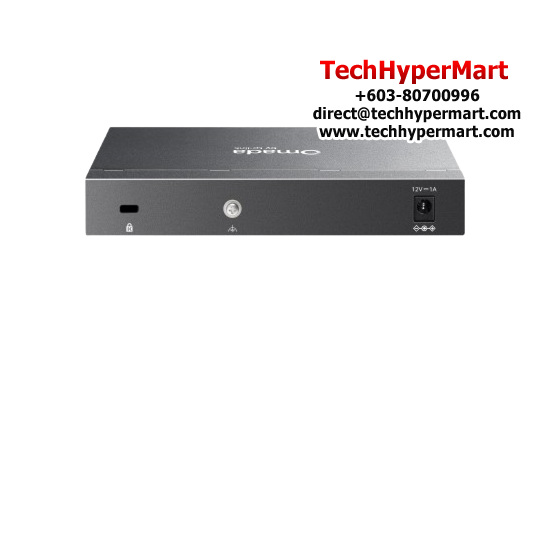

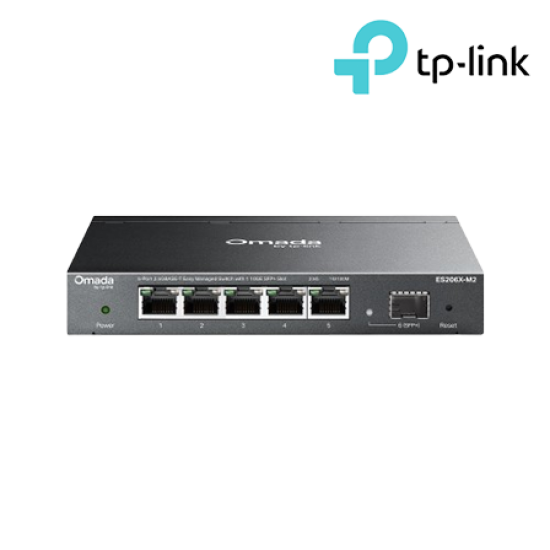

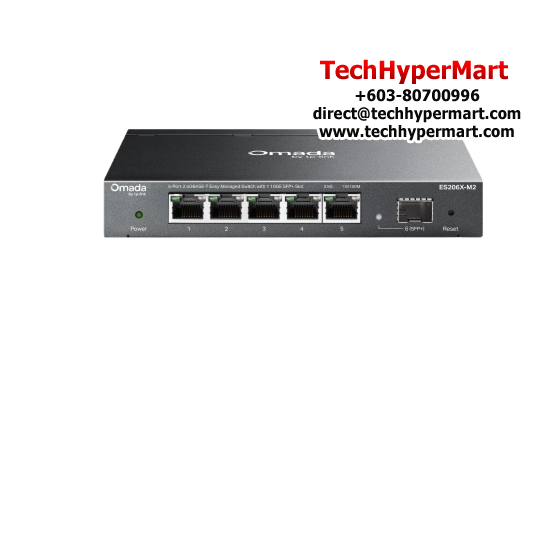

Name: TP-Link ES206X-M2 Managed Switch (5-Port, 5× 2.5 Gbps RJ45 Ports)
Brand: TP-Link
SKU: ES206X-M2
Price: 1729.00 MYR
Availability: InStock

TP-Link ES206X-M2 Managed Switch (5-Port, 5× 2.5 Gbps RJ45 Ports)

Description

PRODUCT DESCRIPTION

TP-Link ES206X-M2 Managed Switch

5-Port | 5× 2.5 Gbps RJ45 Ports

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

Switches

ADDITIONAL INFORMATION

View Official Website

Warranty
- 3 Years TP-Link Warranty
- Manufactured and warranty provided by TP-Link

SPECIFICATIONS

Model	ES206X-M2
HARDWARE FEATURES	Interface • 5× 2.5 Gbps RJ45 Ports • 1× 10 Gbps SFP+ Slot • Auto-Negotiation/Auto MDI/MDIX Fan Quantity Fanless Installation • Desktop • Wall Mount Physical Security Lock √ Power Supply DC Power Adapter (Output: 12 VDC / 1 A) Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm) Surge Protection ±6kV for Ethernet Ports
PERFORMANCE	Packet Buffer Memory 640 KB Jumbo Frame 10 KB Switching Capacity 45 Gbps Packet Forwarding Rate 33.48 Mpps MAC Address Table 16K
SOFTWARE FEATURES	Quality of Service • Port-based/802.1p/DSCP QoS△ • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control L2 Features • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP L2 Multicast • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave VLAN • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID Transmission Method Store-And-Forward Management Features Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller Management Features • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration†
OTHERS	Certification FCC, CE, RoHS Environment • Operating Temperature: -5℃~40℃ (23℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*
