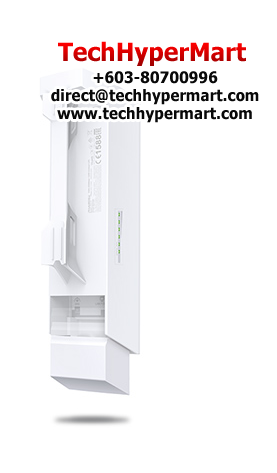

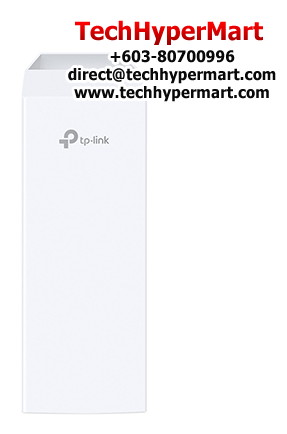

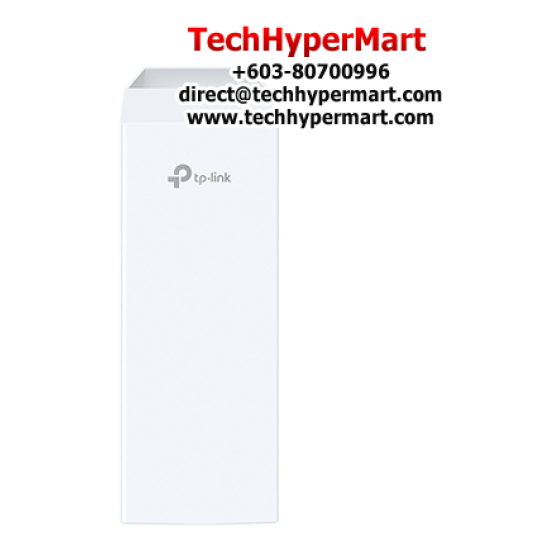

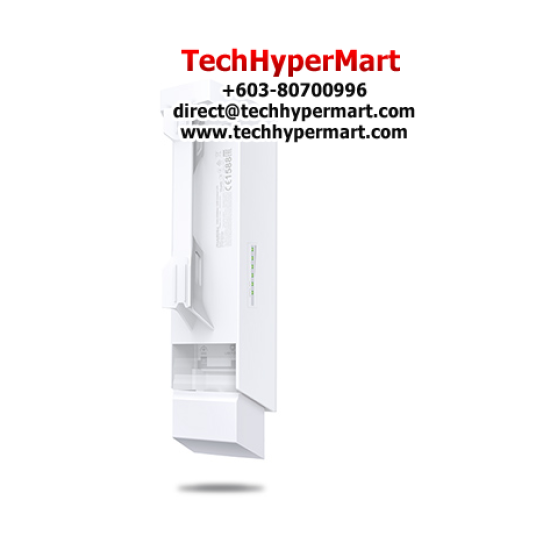

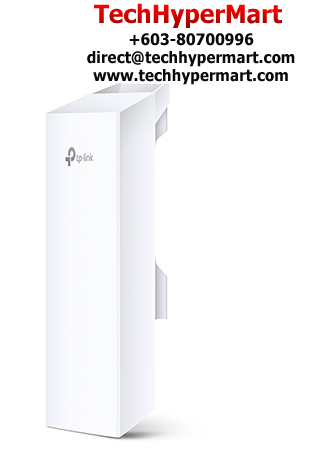

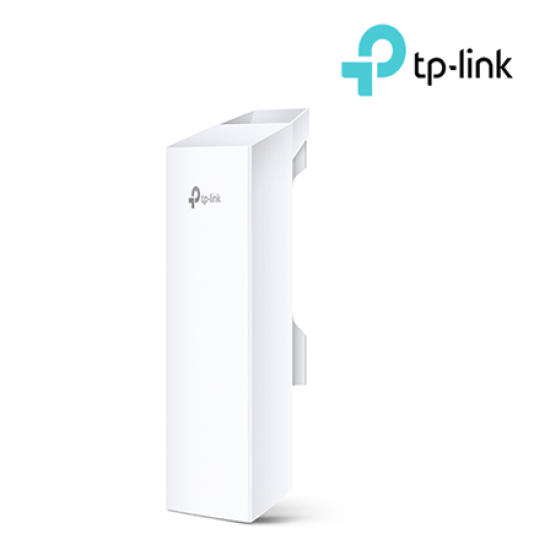

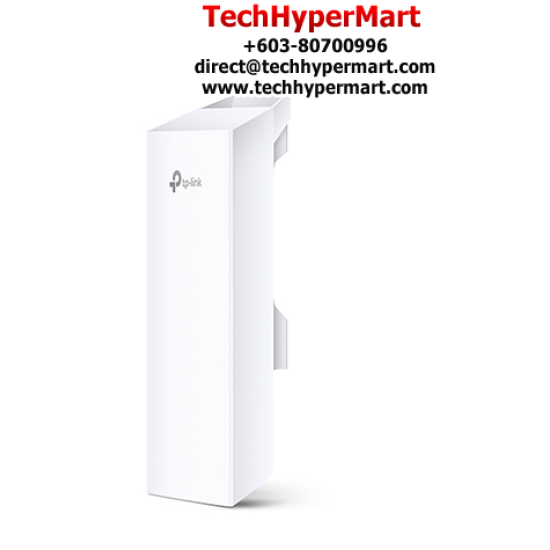

TP-Link CPE510 Outdoor Antenna (5GHz 300Mbps, 2x2 Antenna, 1 10/100Mbps)

  • Brand: TP-Link
  • Product Code: CPE510
  • Availability: In Stock
Price:

RM399

Visit Product Official Website




 PRODUCT DESCRIPTION

TP-Link CPE510 Outdoor Antenna

5GHz 300Mbps | 2x2 Antenna | 1 10/100Mbps




Force feedback









* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*



  PACKAGE CONTENTS

  • Outdoor Antenna

 ADDITIONAL INFORMATION

View Official Website



Warranty
- 3 Years TP-Link Warranty
-
Manufactured and warranty provided by TP-Link


  SPECIFICATIONS


Model  CPE510
HARDWARE FEATURES
Processor  Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
Memory  64MB DDR2 RAM, 8MB Flash
Interface   1 10/100Mbps Shielded Ethernet Port (Passive PoE in)
1 Grounding Terminal
1 Reset Button
Power Supply  Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption  10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H )  224 x 79 x 60 mm
Antenna Type  Built-in 13dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 45° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet
Protection  15KV ESD Protection
6KV Lightning Protection
Enclosure   Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
WIRELESS FEATURES
Wireless Standards  IEEE 802.11a/n (with Pharos MAXtream disabled)
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds  Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency   5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Transmission Power  23dBm/200mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
SOFTWARE FEATURES
Wireless Configurations  haros MAXtream TDMA Technology
802.11a/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management  Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
System Tools  Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
System-level Optimizations  Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog
POE ADAPTER FEATURES
Dimensions(W x D x H)  110*57*33.5mm
Input Current   0.8A Max @ 100VAC
Input Voltage  100VA~240VAC @ 50Hz~60Hz
Output 24VDC, 1.0A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency   >80%
Output Voltage  24VDC(+4,5pins; -7,8pins)
Input 100-240VAC, 50/60Hz
Power Status LEDs  0~0.8A: Green
0.8A~1.0A: Red
Certifications   CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Interfaces  1 AC Jack with Earth Ground
1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)
Button  Remote Reset Button
OTHERS
Certification  CE, FCC, RoHS, IPX5
System Requirements  Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment  Operating Temperature: -30°C~70°C (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*
Networking Specifications
Networking Antennas Built-in 13dBi 2x2 Dual-polarized Directional Antenna
Networking Frequency Wireless 5GHz 300Mbps,5.15~5.85GHz
Networking Operation mode Outdoor Antenna
  • Warranty Time:3 Years TP-Link Warranty

  • Warranty Provided:TP-Link
