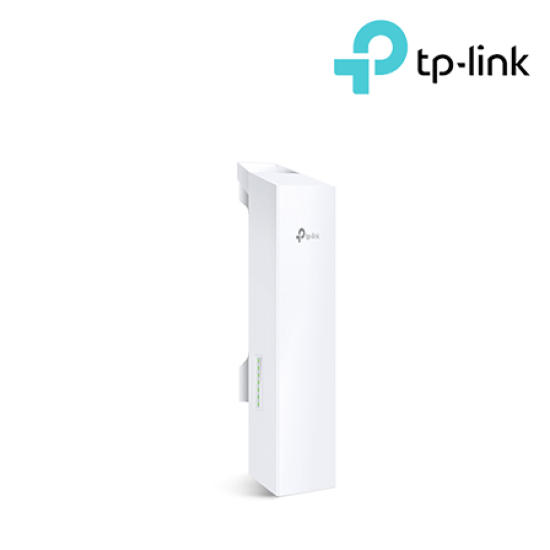

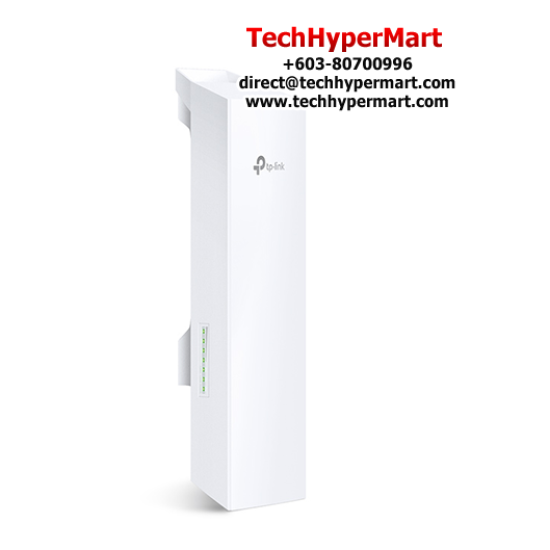

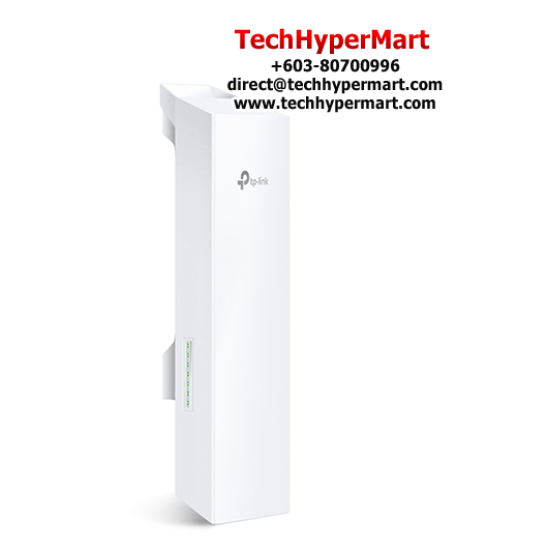

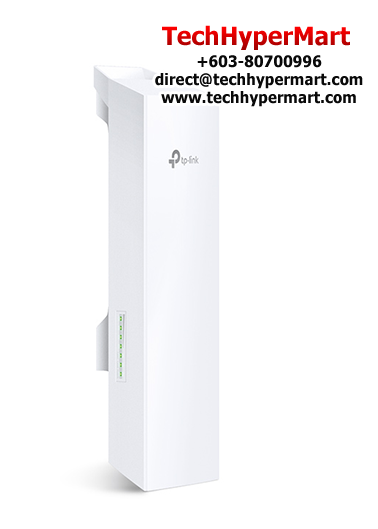

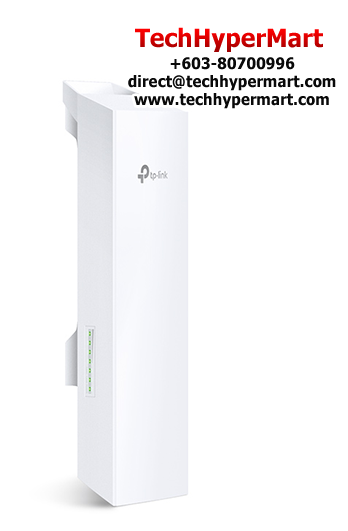

Name: TP-Link CPE220 Outdoor Antenna (2.4GHz 300Mbps, 2x2 Antenna, 1 10/100Mbps)
Brand: TP-Link
SKU: CPE220
Price: 289.00 MYR
Availability: InStock

TP-Link CPE220 Outdoor Antenna (2.4GHz 300Mbps, 2x2 Antenna, 1 10/100Mbps)

Description

PRODUCT DESCRIPTION

TP-Link CPE220 Outdoor Antenna

2.4GHz 300Mbps | 2x2 Antenna | 1 10/100Mbps

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

Outdoor Antenna

ADDITIONAL INFORMATION

View Official Website

Warranty
- 3 Years TP-Link Warranty
- Manufactured and warranty provided by TP-Link

SPECIFICATIONS

Model	CPE220
HARDWARE FEATURES	Processor Qualcomm Atheros 560MHz CPU, MIPS 24Kc Memory 64MB DDR2 RAM, 8MB Flash Interface 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 10/100Mbps Shielded Ethernet Port (LAN1) 1 Grounding Terminal 1 Reset Button Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC Power Consumption 10.8 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. Dimensions ( W x D x H ) 11×3.1×2.1 inch (276×79×60 mm) Antenna Type Built-in 12dBi 2x2 Dual-polarized Directional Antenna Beam Width: 60° (H-Plane) / 30° (E-Plane) Note: For more details, please refer to datasheet Protection 15KV ESD Protection 6KV Lightning Protection Enclosure Outdoor ASA stabilized plastic material IPX5 waterproof Certification
WIRELESS FEATURES	Wireless Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled) Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled) Wireless Speeds Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) Frequency 2.4~2.483GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. Transmission Power 30dBm/1000mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
SOFTWARE FEATURES	Wireless Configurations Pharos MAXtream TDMA Technology 802.11b/g/n Modes Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia Management Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server System Tools Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute System-level Optimizations Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog
POE ADAPTER FEATURES	Dimensions(W x D x H) 85.8×43.9×31.9 mm Interfaces 1 AC Jack with Earth Ground 1 10/100/1000Mbps Shielded Ethernet Port (Power + Data) 1 10/100/1000Mbps Shielded Ethernet Port (Data) Button Remote Reset Button Power Status LEDs Green Input 100-240VAC, 50/60Hz Output 24VDC, 0.5A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) Efficiency >80% Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
OTHERS	Certification CE, FCC, RoHS, IPX5 Package Contents Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. Environment Operating Temperature: -40℃~70℃ (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*

TP-Link CPE220 Outdoor Antenna (2.4GHz 300Mbps, 2x2 Antenna, 1 10/100Mbps)

Specifications
Reviews

Networking Specifications
Networking Antennas	Built-in 13dBi 2x2 Dual-polarized Directional Antenna
Networking Frequency	Wireless 5GHz 300Mbps,5.15~5.85GHz
Networking Operation mode	Outdoor Antenna
