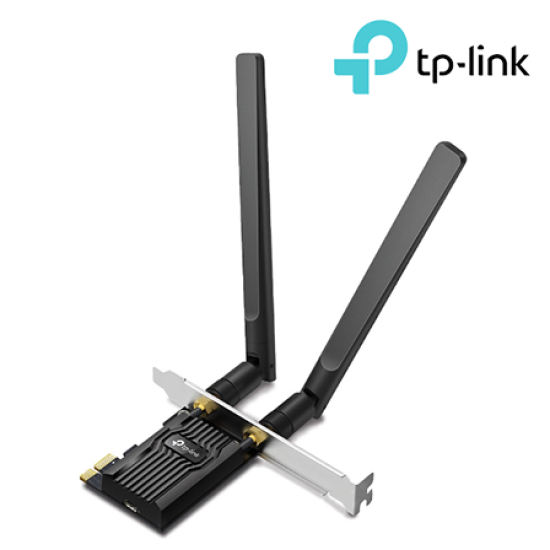

Name: TP-Link Archer TX20E PCIE Adapter (AX1800 Dual Band, PCI Express, 1201 Mbps)
Brand: TP-Link
SKU: Archer TX20E
Price: 119.00 MYR
Availability: InStock

TP-Link Archer TX20E PCIE Adapter (AX1800 Dual Band, PCI Express, 1201 Mbps)

Description

PRODUCT DESCRIPTION

TP-Link Archer TX20E PCIE Adapter

AX1800 Dual Band | PCI Express | 1201 Mbps

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

PCIE Adapter

ADDITIONAL INFORMATION

View Official Website

Warranty
- 3 Years TP-Link Warranty
- Manufactured and warranty provided by TP-Link

SPECIFICATIONS

Model	Archer TX20E
HARDWARE FEATURES	Dimensions 4.76 × 3.09 × 0.82 in (120.8 × 78.5 × 20.9 mm) Antenna Type Two High-Gain Dual Band Antennas Chipset Realtek Wi-Fi 6 Chipset
WIRELESS FEATURES	Wireless Standards IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/g/b 2.4 GHz Bluetooth 5.2 WLAN Signal Rate 5 GHz 11ax: Up to 1201 Mbps(dynamic) 11ac: Up to 867 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) WLAN Reception Sensitivity 5 GHz : 11ax HE80: -57.0dBm 11ax HE40: -60.0dBm 11ax HE20: -63.0dBm 11ac VHT80: -59.5dBm 11ac VHT40: -62.5dBm 11ac VHT20: -67.5dBm 11n HT40: -69.5dBm 11n HT20: -72.5dBm 11a 54Mbps: -74.0dBm 11a 6Mbps: -94.5dBm 2.4GHz : 11ax HE40: -60.0dBm 11ax HE20: -63.0dBm 11n HT40: -69.5dBm 11n HT20: -72.5dBm 11g 54Mbps: -74.0dBm 11b 11Mbps: -88.0dBm WLAN Transmit Power 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP) 2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP) WLAN Modes Infrastructure mode Wireless Security Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
OTHERS	Certification CE, FCC, RoHS Package Contents Archer TX20E Two High-Gain Dual Band Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD System Requirements Windows 11/10(64-bit) only Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*

TP-Link Archer TX20E PCIE Adapter (AX1800 Dual Band, PCI Express, 1201 Mbps)

Specifications
Reviews

USB Hub Spec
Networking Interfaces	PCI Express
Networking Specifications
Networking Antennas	1201 Mbps
Networking Frequency	AX1800 Dual Band
Networking Operation mode	PCI Adapter
