D-Link DPH-120SE Voice Phone (1 x 10/100Mbps, 1 Line LCD display, 128x48 pixels, AC power plug)

  • Brand: D-Link
  • Product Code: DPH-120SE
  • Availability: In Stock
Price:

RM359

Visit Product Official Website




 PRODUCT DESCRIPTION

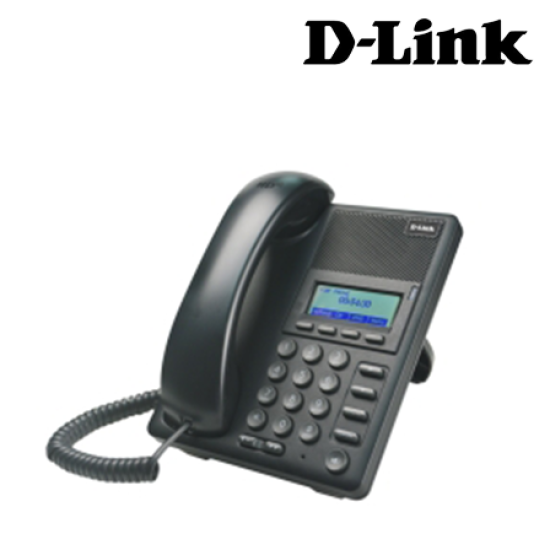

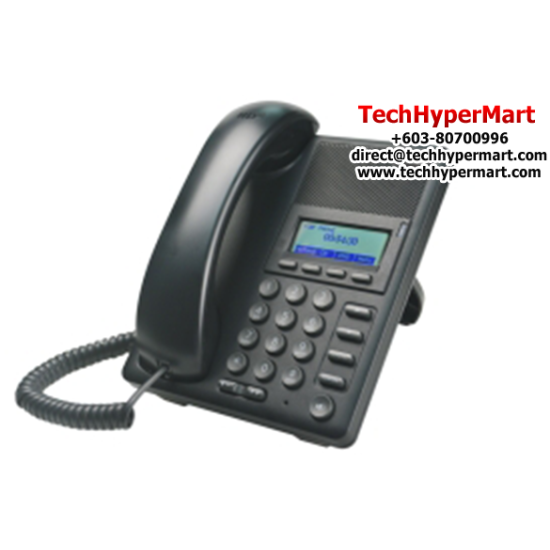

D-Link DPH-120SE Voice Phone

1 x 10/100Mbps | 1 Line LCD display | 128x48 pixels | AC power plug










* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
* All Prices Exclude delivery/installation/activation fees. *


  PACKAGE CONTENTS

  • Voice Phone


 ADDITIONAL INFORMATION

Warranty
- 1 Year D-Link Warranty
-
Manufactured and warranty provided by D-Link

  PRODUCT SPECIFICATIONS

Model DPH-120SE
General features Interfaces
• WAN Port: 10/100 BASE-T RJ-45 with PoE support for Internet connection
• LAN Port: 10/100 BASE-T RJ-45 for PC
• Headset : RJ9
• Handset : RJ9

LEDs
• Power

Display
• Large dot matrix LCD display
• Display Resolution: 128x48 pixels

Keyboard
• 4 programmable soft keys
• Navigation keys
• Headset
• Volume adjustment (-/+)
• Redial
• Speaker phone
• Dial phone numbers (including * and #)

CPU
• Broadcom

SDRAM
• 16 MB

Flash Memory
• 4 MB

Power Plug
• AC power plug

Phone features
• Vxworks OS
• Support SIP2.0 (RFC3261)
• SIP support 2 SIP servers, and backup SIP proxy servers
• Supports SIP UDP / TCP/ TLS
• SIP support SIP domain, SIP authentication (none, basic, MD5), DNS name of server, Peer to Peer / IP Call

Audio Features
• HD voice: HD handset
• Codec: G.711A/u, G.7231 high/low, G.729AB, G.722, G.726-32
• DTMF: In-band, RFC 2833 and SIP INFO
• Full duplex hands- free speaker phone with acoustic echo cancellation
• Voice Activity Detection (VAD)
• Comfort Noise Generation (CNG)
• Background noise suppression
• Adaptive jitter buffers
• Packet loss concealment
• SRTP
• mute

Advanced Features
• Call forwarding (busy/no answer/always)
• Call transfer (unattended/attended/semi-attended)
• Call holding
• Call waiting
• 3 way call conference
• BLF list
• Join call
• Call pickup
• Call park
• Redial
• Call back
• Call completion
• Hot desking
• Auto redial
• Predial
• SIP messaging, MWI
• Flexible dial plan
• Barring function for outgoing calls
• Do not disturb
• Auto answer
• Caller ID display
• CLIR(rejects anonymous calls)
• CLIP(to make an anonymous call)
• Dial without registration
• Call logs with missed calls/incoming calls/outgoing calls. Each support 300 records
• Phonebook: 500 records
• Speed Dial (abbreviated? dialing)
• Hotline/Warm-line
• Call rejection
• Black List/ White List
• Intercom
• Password dial, DTMF hidden
• Action URL/ active URI
• Voice codec setting for each SIP line
• LDAP, XML phonebook
• Web dial
• Keypad lock, Emergency call

Network/ Security Features
• Bridge mode and route
• PPPoE for xDSL
• 802.3af PoE
• VLAN??€Voice VLAN/Data VLAN??‰
• 802.1X
• NAT (NAPT)
• NAT transverse :Support STUN client
• DHCP client on WAN/ DHCP server on LAN
• Main DNS and secondary DNS server
• DNS Relay
• SNTP Client
• Firewall and DMZ
• Web management access restricted
• VPN (L2TP)
• ping, Trace route, telnet

Maintenance & Management
• WEB, telnet and LCD menu management
• Management with different account right
• Recover firmware and factory reset
• Upgrade firmware via HTTP, HTTPS, FTP, TFTP
• DHCP option66 and custom option for auto provisioning
• Auto Provisioning to upgrade configuration file with AES encryption
• TR-069 and Syslog
Physical Parameters Dimensions
• 250 x 205 x 60 mm

Weight
• 0.84kg

Power Supply
• DC 5 V/600 mA, power adapter
• Ethernet cable (PoE) 802.3af

Power consumption:
• IDLE: 2.5W
• Active: 2.8W

Operation Temperature:
• 0 to 40 °C

Relative Humidity:
• 10% to 65%…

Certification
• FCC
• CCC
• CE
• RoHS
 * Prices, Features, Package Content and Specifications are subject to change without prior notification.*

Voice Phone Specs
Voice Phone Interface 1 x 10/100Mbps
Voice Phone Standard Gigabit
Voice Phone Display 1 Line LCD display
  • Warranty Time:1 Years D-Link Warranty

  • warranty provided:D-Link
