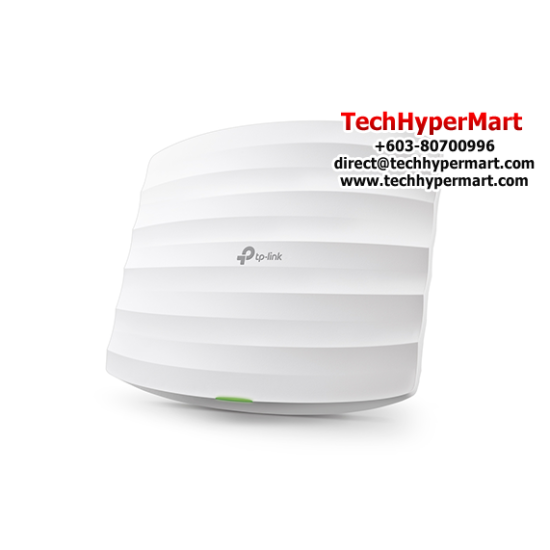

Name: TP-Link EAP223 Access Point (1350Mbps Wireless AC, 3 Internal Omni Antenna, 2.4 GHz and 5 GHz)
Brand: TP-Link
SKU: EAP223
Price: 409.00 MYR
Availability: InStock

TP-Link EAP223 Access Point (1350Mbps Wireless AC, 3 Internal Omni Antenna, 2.4 GHz and 5 GHz)

Description

PRODUCT DESCRIPTION

TP-Link EAP223 Access Point

1350Mbps Wireless AC | 3 Internal Omni Antenna | 2.4 GHz and 5 GHz

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

Router

ADDITIONAL INFORMATION

View Official Website

Warranty
- 3 Years TP-Link Warranty
- Manufactured and warranty provided by TP-Link

SPECIFICATIONS

Model	EAP223
HARDWARE FEATURES	Interface Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af/at PoE and Passive PoE) Physical Security Lock Yes Button Reset Power Supply • 802.3af/at PoE • 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included) Power Consumption EU: 9.7W US: 12.1W Dimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm) Antenna Type 3 Internal Omni • 2.4 GHz: 4 dBi • 5 GHz: 5 dBi Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES	Wireless Standards IEEE 802.11ac/n/g/b/a Frequency 2.4 GHz and 5 GHz Signal Rate • 5 GHz:Up to 867 Mbps • 2.4 GHz:Up to 450 Mbps Wireless Functions • Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz band, 7 for 5GHz band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming* • Omada Mesh* • Band Steering • Load Balance • MU-MIMO • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client Wireless Security • Captive Portal Authentication* • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support Transmission Power • CE: ≤20 dBm(2.4 GHz, EIRP) ≤23 dBm(5 GHz, EIRP) • FCC: ≤24 dBm(2.4 GHz) ≤22 dBm(5 GHz)
MANAGEMENT	Omada App Yes Centralized Management • Omada Hardware Controller OC300 • Omada Hardware Controller OC200 • Omada Software Controller • Omada Cloud-Based Controller Cloud Access Yes, through • OC300 • OC200 • Omada Software Controller • Omada Cloud-Based Controller Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1,v2c System Logging Local/Remote Syslog Local/Remote Syslog SSH Yes Web-based Management HTTP/HTTPS L3 Management Yes Multi-site Management Yes Management VLAN Yes Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
OTHERS	Certification CE, FCC, RoHS Package Contents • AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223 • Mounting Kits • Installation Guide System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*

TP-Link EAP223 Access Point (1350Mbps Wireless AC, 3 Internal Omni Antenna, 2.4 GHz and 5 GHz)

Specifications
Reviews

USB Hub Spec
Networking Interfaces	Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af/at PoE and Passive PoE)
Networking Specifications
Networking Antennas	3 Internal Omni
Networking Frequency	2.4 GHz and 5 GHz
Networking Operation mode	Routers
