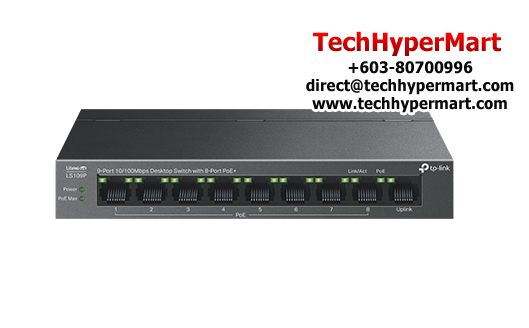

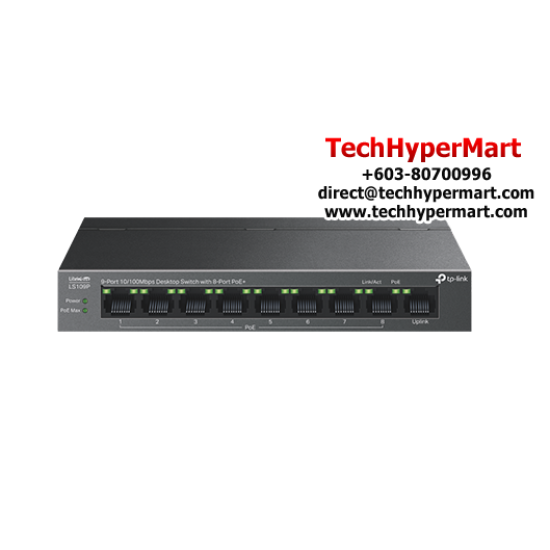

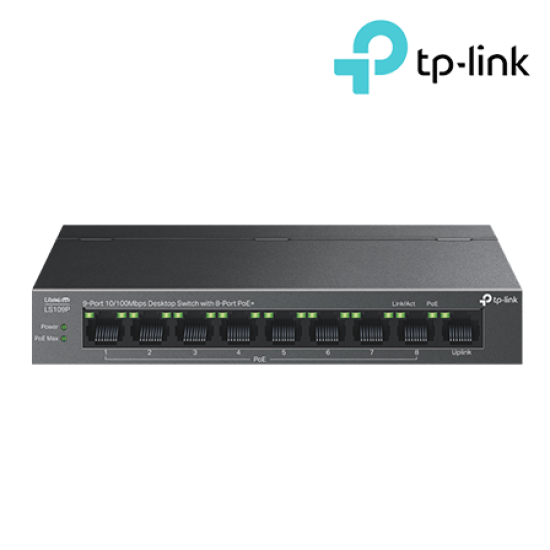

Name: TP-Link LS109P Switch (9-Port, 1.8 Gbps, 9× 10/100 Mbps, 1.3392 Mpps)
Brand: TP-Link
SKU: LS109P
Price: 239.00 MYR
Availability: InStock

TP-Link LS109P Switch (9-Port, 1.8 Gbps, 9× 10/100 Mbps, 1.3392 Mpps)

Description

PRODUCT DESCRIPTION

TP-Link LS109P Switch

9-Port | 1.8 Gbps | 9× 10/100 Mbps | 1.3392 Mpps

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

Switches

ADDITIONAL INFORMATION

View Official Website

Warranty
- 3 Years TP-Link Warranty
- Manufactured and warranty provided by TP-Link

SPECIFICATIONS

Model	LS109P
HARDWARE FEATURES	Installation • Desktop • Wall Mounting Interface • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports) • AUTO Negotiation • AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Power Supply External Power Adapter (Output: 53.5VDC / 1.31A) PoE Ports (RJ45) • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8, up to 30 W PoE output per port • Power Supply: 63 W LED Indicator • Power • Link/Act • PoE Status • PoE MAX Dimensions ( W x D x H ) 6.7×3.9×1.1 in (171×98×27 mm) Max Power Consumption • 3.67 W (220 V/50 Hz no PD connected) • 73.24 W (220 V/50 Hz with 63 W PD connected) Max Heat Dissipation • 12.48 BTU/h (220 V/50 Hz no PD connected) • 249 BTU/h (220 V/50 Hz with 63 W PD connected)
PERFORMANCE	Switching Capacity 1.8 Gbps Packet Forwarding Rate 1.3392 Mpps MAC Address Table 2K Jumbo Frame 1.5 KB
SOFTWARE FEATURES	Advanced Features • Extend Mode Button (Ports 1–4/1–8, Up to 250 m PoE power supply and data transmission) • Isolation Mode Button (Ports 1–8) • PoE Auto Recovery Button (Ports 1–8) • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • Green Technology Transfer Method Store and Forward
OTHERS	Certification CE, FCC, RoHS Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*

TP-Link LS109P Switch (9-Port, 1.8 Gbps, 9× 10/100 Mbps, 1.3392 Mpps)

Specifications
Reviews

Switch Specs
Switch Port	9 Port
Switch Capacity	9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports)
Switch Dimensions	170 × 100 × 38.5 mm
Switch Case	-
Switch Mount	-
