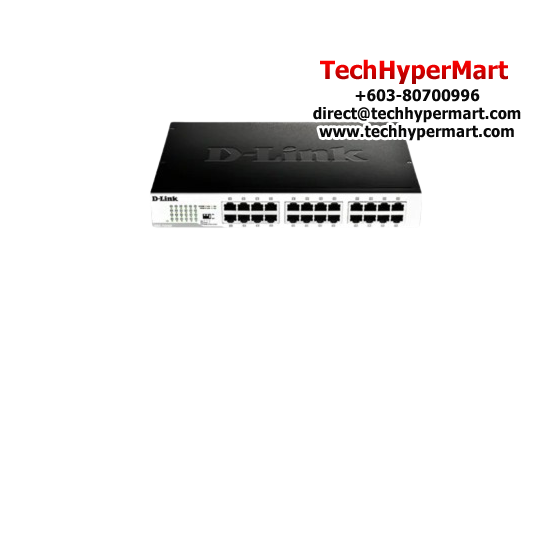

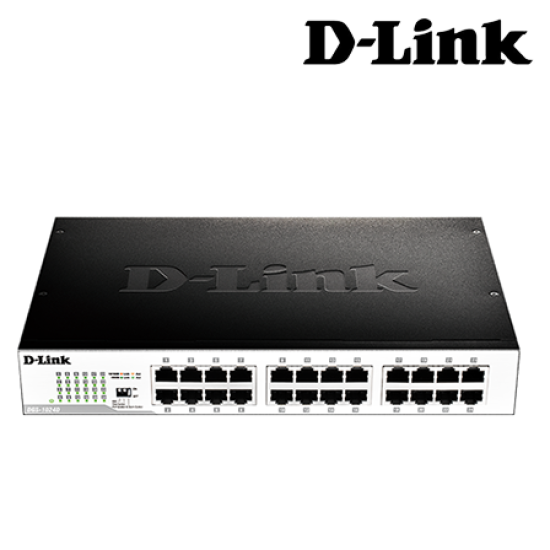

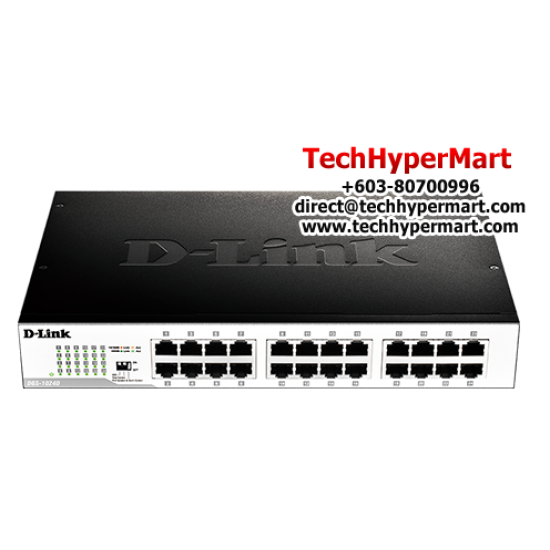

Name: D-Link DGS-1024D Managed Switch (24-Port, 48 Gbps)
Brand: D-Link
SKU: DGS-1024D
Price: 399.00 MYR
Availability: InStock

D-Link DGS-1024D Managed Switch (24-Port, 48 Gbps)

Description

PRODUCT DESCRIPTION

D-Link DGS-1024D Managed Switch

24-Port | 48 Gbps

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

Switches

ADDITIONAL INFORMATION

View Official Website

Warranty
- Lifetime D-Link Warranty
- Manufactured and warranty provided by D-Link

SPECIFICATIONS

Model	DGS-1024D
General	Number of Ports • 24 10/100/1000 Mbps ports Standards • IEEE 802.3 10BASE-T • IEEE 802.3u 100BASE-TX • IEEE 802.3ab 1000BASE-T • IEEE 802.1p Quality of Service (QoS) • IEEE 802.3x Flow Control supported for full-duplex • Auto-negotiation • IEEE 802.3az Energy-Efficient Ethernet (EEE) Data Transfer Rates • Ethernet: 10 Mbps/20 Mbps (half-duplex/full-duplex) • Fast Ethernet: 100 Mbps/200 Mbps (half-duplex/full-duplex) • Gigabit Ethernet: 2000 Mbps (full-duplex) Network Cables • Ethernet: 2-pair UTP Cat.3/4/5/5e, Unshielded Twisted Pair (UTP) Cable • Fast Ethernet: 2-pair UTP Cat.5/5e, Unshielded Twisted Pair (UTP) Cable • Gigabit Ethernet: 4-pair UTP Cat.5/5e, Unshielded Twisted Pair (UTP) Cable
Functionality	D-Link Green Features • Power saving by link status and cable length Security • Storm Control QoS (Quality of Service) • 802.1p priority • 8 queues Cable Diagnostics • Indicated through port LEDs
Switching Features	Protocol • CSMA/CD Switching Capacity • 48 Gbps Max. Forwarding Rate • 35.71 mpps Packet Buffer RAM • 512 KBytes per device Filtering Address Table • 8K MAC addresses per device Packet Filtering/Forwarding Rate • Ethernet: 14,880 pps per port • Fast Ethernet: 148,800 pps per port • Gigabit Ethernet: 1,488,000 pps per port MAC Address Learning • Self-learning, auto-aging Forwarding Mode • Store-and-forward
Physical	Indicator LEDs • Power LED (per device) • Link/Activity/Speed LEDs (per port) DIP Switch • Energy-Efficient Ethernet (EEE) • Flow Control • Port Isolation and Storm Control AC Inputs • Internal universal power supply • 100~240 V AC; 50 to 60 Hz, 0.3 A max Maximum Power Consumption • 13.3 W Standby Power Consumption • 4.4 W Maximum Heat Dissipation • 45.35 BTU/h MTBF • 863,100 hours Acoustic Value • 0 dB(A) Fanless Dimensions • 280 x 180 x 44 mm (11.02 x 7.09 x 1.73 inch) Weight • 1.30 kg (2.87 lbs) Operating Temperature • 0 ºC to 40 ºC (32 ºF to 104 ºF) Storage Temperature • -10 ºC to 70 ºC (14 ºF to 158 ºF) Operating Humidity • 0% to 95% RH, non-condensing Storage Humidity • 0% to 95% RH
Certifications	Emission Certifications (EMI) • ICES-003 Class A • FCC Class A • RCM Class A • BSMI Class A • CE Class A • VCCI A • CCC • KCC Safety • cUL/UL • CE LVD • CCC • CB • BSMI
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*
