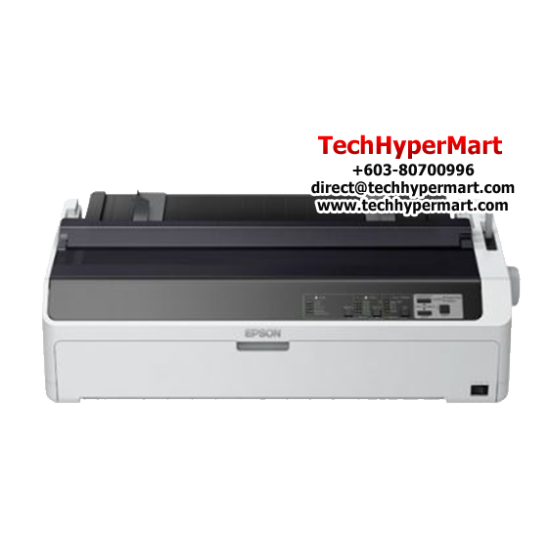

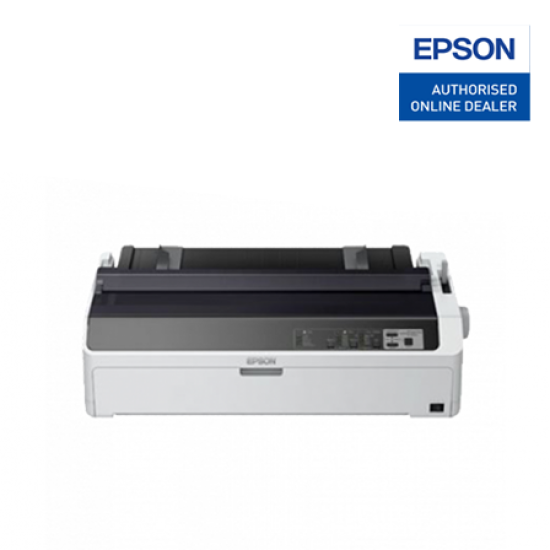

Name: Epson FX-2190II Dot Matrix Printer (A3, 9-pin, 136 columns, Up to 612cps, 1+6 copies, USB and Parallel)
Brand: Epson
SKU: FX-2190II
Price: 3069.00 MYR
Availability: InStock

Epson FX-2190II Dot Matrix Printer (A3, 9-pin, 136 columns, Up to 612cps, 1+6 copies, USB and Parallel)

-3 %

Description

PRODUCT DESCRIPTION

Epson FX-2190II Dot Matrix Printer

9-pin wide carriage | Speed: up to 612cps | MTBF: 25,000 Power on Hours | USB and Parallel ports

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

Dot Matrix Printer

ADDITIONAL INFORMATION

View Official Website

Warranty
- 1 year Epson Warranty
- Manufactured and warranty provided by Epson

SPECIFICATIONS

Model	Printer LQ-2090II Dot Matrix printer
Printing Technology	Control Panel: 6 switches and 10 LEDs Print Direction: Bi-direction with logic seeking Printing Method: Impact dot matrix Number of Pins in Head: 9 pins Control Code: ESC/P2, IBM PPDS
Reliability	Printhead life: 400 million strokes / wire Mean Print Volume Between Failure (MVBF): 52 million lines (except print head) Mean Time Between Failure (MTBF): 25,000 Power On Hours (POH) (25% Duty)
Print Characteristics	Bitmap Fonts: Epson Draft: 10, 12, 15 cpi Scalable Fonts: Epson Roman / Epson Sans Serif Barcode: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET
Paper Media	Cut Sheet (Single Sheet): Entry: Front Length: 100 - 420 mm \| (3.9 - 16.5”) Width: 100 - 420 mm \| (3.9 - 16.5”) Thickness: 0.065 - 0.14 mm \| (0.0025 - 0.0055”) Entry: Rear Length: 100 - 420 mm \| (3.9 - 16.5”) Width: 100 - 420 mm \| (3.9 - 16.5”) Thickness: 0.065 - 0.14 mm \| (0.0025 - 0.0055”) Cut Sheet (Multi-part Sheet): Entry: Front Length: 100 - 420 mm \| (3.9 - 16.5”) Width: 100 - 420 mm \| (3.9 - 16.5”) Thickness: 0.12 - 0.46 mm \| (0.0047 - 0.018”) Entry: Rear Length: 100 - 420 mm \| (3.9 - 16.5”) Width: 100 - 420 mm \| (3.9 - 16.5”) Thickness: 0.12 - 0.46 mm \| (0.0047 - 0.018”) Continuous Paper (Single Sheet / Multi-part): Copies: Original + 4 copies Entry: Front / Rear / Bottom Length: 101.6 - 558.8 mm \| (4.0 - 22.0”) Width: 101.6 - 406.4 mm \| (4.0 - 16.0”) Thickness: 0.065 - 0.46 mm \| (0.0025 - 0.018”) Envelope (No.6): Entry: Rear Length: 92 mm \| (3.6”) Width: 165 mm \| (6.5”) Thickness: 0.16 - 0.52 mm \| (0.0063 - 0.0205”) Envelope (No.10): Entry: Rear Length: 105 mm \| (4.1”) Width: 241 mm \| (9.5”) Thickness: 0.16 - 0.52 mm \| (0.0063 - 0.0205”) Label (Base Sheet): Entry: Buttom Length: 101.6 - 558.8 mm \| (4.0 - 22.0”) Width: 101.6 - 406.4 mm \| (4.0 - 16.0”) Thickness: 0.16 - 0.19 mm \| (0.0063 - 0.0075”) Card: Entry: Front / Rear Length: 100 - 148 mm \| (3.9 - 5.8”) Width: 100 - 148 mm \| (3.9 - 5.8”) Thickness: 0.22 mm \| (0.0087”) Roll Paper: Entry: Rear Diameter: 127mm \| (5”) Width: 216 mm \| (8.5”) Thickness: 0.07 - 0.09 mm \| (0.0028 - 0.035”) Line Spacing: 4.23mm (1/6”) or programmable in increments of 0.059mm (1/432”)
General	Operating Systems: Printer Driver: Microsoft Windows XP / Vista / 7 / 8 / 10 Utility Epson Status Monitor 3: Microsoft Windows XP / Vista / 7 / 8 / 10 Epson Setting Utility: Microsoft Windows XP / Vista / 7 / 8 / 10
Electrical Specifications	Rated Voltage: AC 220 - 240 V Rated Frequency: 50 Hz - 60 Hz Operating: 54W Sleep: 0.5W Power Off: 0.1W in power off modePower Off: 0.1W in power off mode
Consumables	Ribbon Cartridge Black: Standard: Fabric Ribbon Cartridge (Black) Ribbon Life: Approx. 12 million Characters*1
Environmental Conditions (Operating)	Temperature: 5 - 35 °C2 Humidty: 10 - 80% RH2
Acoustic Noise	Acoustic Noise: 55 dB
Input Data Buffer	Input Data Buffer: 128KB
Interface	Interface: USB 2.0, Bi-directional parallel (IEEE-1284 nibble mode supported)
Printable Columns	Pitch: 10cpi: 136 cpl
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*

Epson FX-2190II Dot Matrix Printer (A3, 9-pin, 136 columns, Up to 612cps, 1+6 copies, USB and Parallel)

Specifications
Reviews

Dot-Matrix Specifications
Dot-Matrix Control Panel	6 switches and 10 LEDs
Dot-Matrix Print Direction	Bi-direction with logic seeking
Dot-Matrix Print Method	Impact dot matrix
Dot-Matrix Print Speed	columns, 612cps (high speed draft@10cpi)
Dot-Matrix Printhead Type	9 pins
Dot-Matrix Technology2	Dot Matrix printer
Dot-Matrix Additional Specs
Dot-Matrix Easy connectivity	USB 2.0, Bi-directional parallel (IEEE-1284 nibble mode supported)
Dot-Matrix Mean Time Between Failure	25,000 Power On Hours
Dot-Matrix Multi-part flexibility	1+6 copies
