D-Link DGS-1210-26 Managed Switches (24 Port Web Smart Gigabit Switch, 2 SFP Port, Network Security Features)

Description

Untitled 9

PRODUCT DESCRIPTION

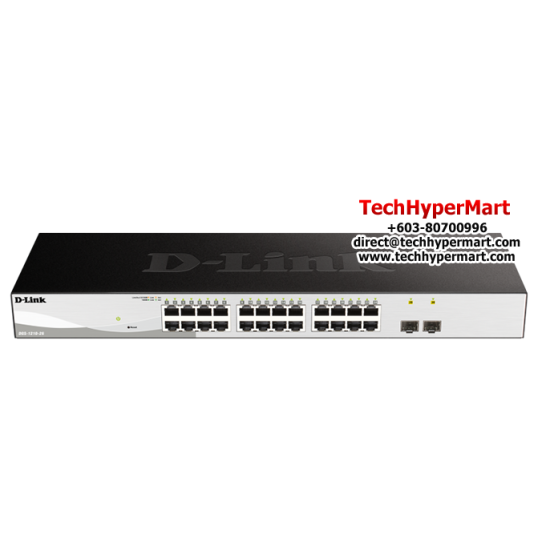

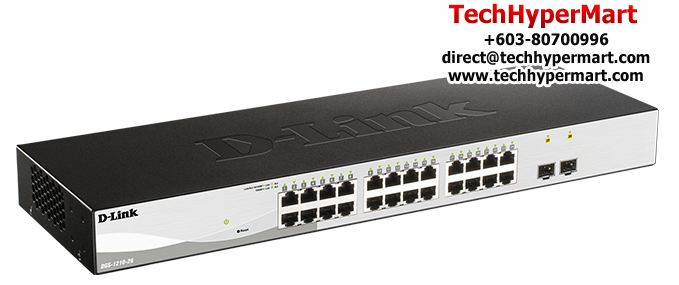

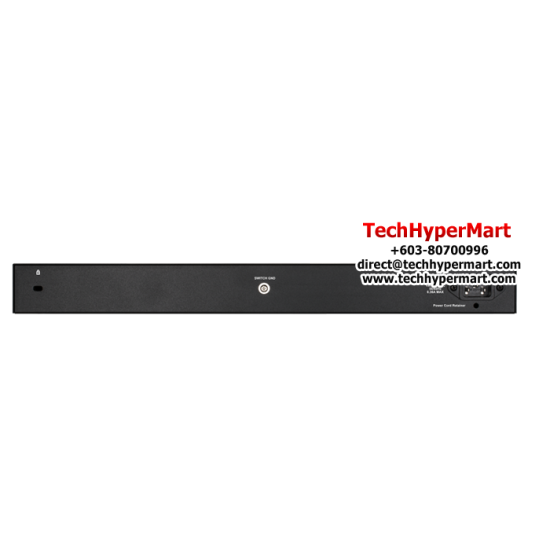

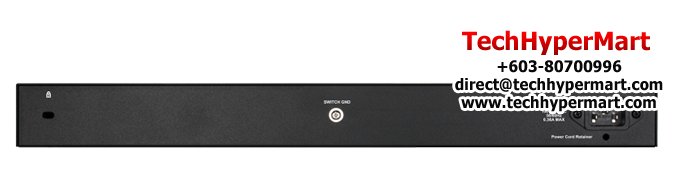

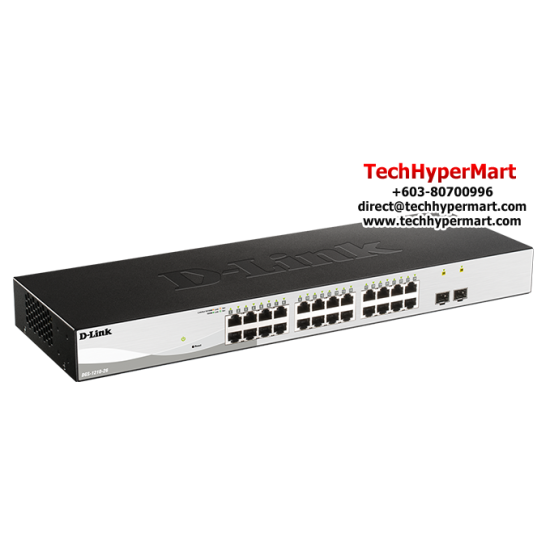

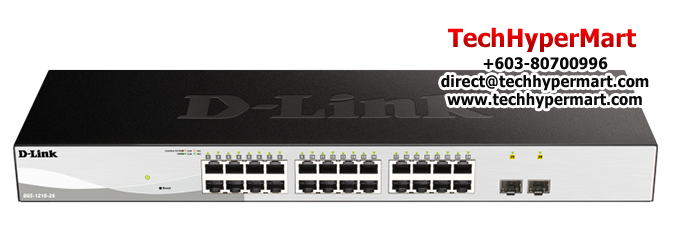

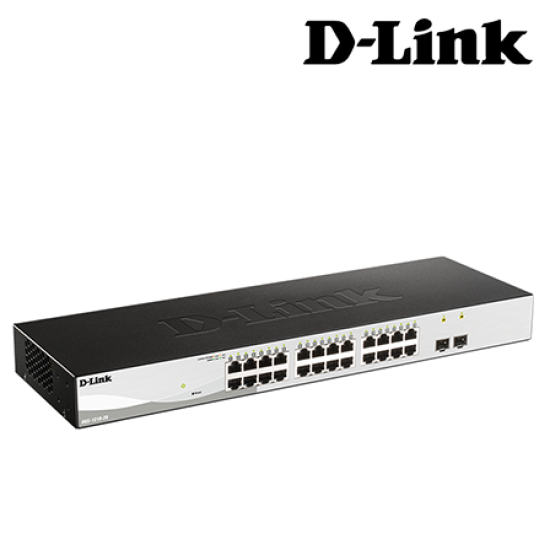

D-Link DGS-1210-26 Managed Switches

24 Port Web Smart Gigabit Switch | 2 SFP Port | Network Security Features

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

Switches

ADDITIONAL INFORMATION

View Official Website

Warranty
- D-Link Lifetime Warranty
- Manufactured and warranty provided by D-LInk

SPECIFICATIONS

Model	DGS-1210-26
Technical Specifications	General Hardware Version • Rev. F 24 x 10/100/1000BASE-T Ports 2 x 100/1000Mbps GbE/SFP Ports Port Standards & Functions • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper) • IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic • IEEE 802.3x Flow Control Network Cables • UTP Cat. 5, Cat. 5e (100 m max.) Duplex Mode • Full/half-duplex for 10/100 Mbps • Full-duplex for 1000 Mbps Media Interface Exchange • Auto MDI/MDIX adjustment for all twisted-pair ports Switching Capacity • 52 Gbps Transmission Method • Store-and-forward MAC Address Table • 8K entries Static MAC Addresses • 256 entries Max. 64 Byte Packet Fwd Rate • 77.4 Mpps Packet Buffer Memory • 4.1 Mbits CPU Memory • DDR3 128 MB Flash Memory • 32 MB
Physical & Environmental	Power Input • 100 to 240 VAC; 50/60 Hz Internal Universal Power Max. Power Consumption • 15.22W/100V Standby Power Consumption • 5.01 W/100V; 5.06W/240V Acoustics • 0 dB(A) Heat Dissipation • 51.93 BTU/hr (100V); 51.57 BTU/hr (240V) Operating Temperature • 23°F to 122°F (-5°C to 50°C) Storage Temperature • -4°F to 158°F (-20°C to 70°C) Operating Humidity • 10% to 90% relative humidity Storage Humidity • 10% to 90% relative humidity Dimensions (W x D x H) • 17.3” x 5.5” x 1.73”; (440 x 140 x 44 mm) Weight • 4.54 lb (2.06 kg) MTBF • 1,082,534 hours EMI Certifications • CE Class A, VCCI Class A, FCC Class A, BSMI, CCC Safety Certifications • CB, UL, BSMI, CCC
Software Features - All Models	L2 Features • MAC Address Table • 8K entries • IGMP Snooping • IGMP v1/v2 Snooping • IGMP v3 awareness • Supports 256 IGMP groups • Supports at least 64 static multicast addresses • IGMP per VLAN • Supports IGMP Snooping Querier • Loopback Detection • 802.3ad Link Aggregation: • Maximum of 8 groups/8 ports per group • LLDP • LLDP-MED • Jumbo Frame • Up to 10,000 bytes • Spanning Tree Protocol • 802.1D STP • 802.1W RSTP • 802.1s MSTP • Flow Control • 802.3x Flow Control • HOL Blocking Prevention • Port Mirroring • One-to-One • Many-to-One • Supports Mirroring for Tx/Rx/Both • Multicast Filtering • Forwards all unregistered groups • Filters all unregistered groups • Configurable MDI/MDIX • MLD snooping v1/v2 (256 groups) VLAN • 802.1Q • VLAN Group • Max. 256 static VLAN groups • Configurable VID from 1 - 4094 • Asymmetric VLAN • Auto Voice VLAN • Max. 10 user-defined OUI • Max. 8 default OUI • Auto Surveillance VLAN Quality of Service (QoS) • 802.1p Quality of Service • 8 queues per port • Queue Handling • Strict • Weighted Round Robin (WRR) • Bandwidth Control • Port-based (ingress/egress, min granularity 10/100/1000 is 16 Kbps) • QoS based on: • 802.1p priority queues • DSCP • MAC address • EtherType • IP address • Protocol type • ToS • IP preference • IPv6 Traffic Class • TCP/UDP port L3 Features • IP interface • Supports 4 interfaces • IPv6 Neighbor Discovery (ND) • Static routing • 124 IPv4 static route entries • 50 IPv6 static route entries Access Control List (ACL) • Max. 50 access lists • Max. 768 rules shared by IPv4, MAC, and IPv6 • Each rule can only be associated with a single port • ACL based on • MAC address • 802.1p priority mask • VID mask • Source/destination MAC address mask • EtherType mask • IP address • Source/destination IP address mask • DSCP mask • Protocol type mask • TCP/UDP port number mask • IPv6 address • Source/destination IP address mask • DSCP mask • Protocol type mask • TCP/UDP port number mask • IPv6 traffic class mask Security • Broadcast/Multicast/Unicast Storm Control • D-Link Safeguard Engine • Traffic segmentation • SSH v2 • TLS v1.0 • DoS attack prevention • 802.1X Port-based Access Control • Port Security • Supports up to 64 MAC addresses per port • ARP Spoofing Prevention • Max. 127 entries • DHCP Server Screening • IP-MAC-Port Binding (Smart Binding) • ARP Inspection • Max. 256 entries • IPv4 Inspection • Max. 127 entries • IPv6 Inspection • Max. 63 entries • DHCP Snooping • Max. 512 entries AAA • 802.1X Authentication • Supports local/RADIUS database • Supports port-based access control • Supports EAP, OTP, TLS, TTLS, PEAP • Max. 128 entries when using local database • IPv6 RADIUS server • Support MD5 authentication OAM • Cable diagnostics • Factory reset Management • Web-based GUI • D-Link Network Assistant Utility • Compact CLI • Telnet Server • TFTP Client • Configurable MDI/MDIX • SNMP • Supports v1/v2c/v3 • SNMP Trap • Backup/upgrade firmware • Smart Wizard • Upload/download configuration file • BootP/DHCP Client • System Log • Max. 500 log entries • SNTP • ICMP v6 • IPv4/v6 Dual Stack • DHCP Auto Configuration • Time setting • SNTP • RMONv1 • Trusted host • Dual image • Dual configuration Green v3.0 Technology • Link Status • System hibernation • Port shut off • Cable length detection MIBs • RFC1212 Concise MIB Definitions • RFC1213 MIBII • RFC1215 MIB Traps Convention • RFC1493 Bridge MIB • RFC1157, RFC2573, RFC2575, RFC2576 SNMP MIB • RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, FC1906, RFC1907, RFC1908, RFC2578, RFC3418 SNMPv2 MIB • RFC271, RFC1757, RFC2819 RMON MIB • RFC2021 RMONv2 MIB • RFC1398, RFC1643, RFC1650, RFC2358, RFC2665 Ether-like MIB • RFC2674 802.1p MIB • Interface Group MIB • RFC2618 RADIUS Authentication Client MIB • RFC4022 MIB for TCP • RFC4113 MIB for UDP • RFC2389 MIB for Diffserv. • RFC2620 RADIUS Accounting Client MIB • Private MIB • DDP MIB • LLDP-MED MIB RFC Standards • RFC791 IP • RFC768 UDP • RFC793 TCP • RFC792 ICMPv4 • RFC2463, RFC4443 ICMPv6 • RFC826 ARP • RFC1321, RFC2284, RFC2865, RFC2716, RFC3580 Extensible Authentication Protocol (EAP) • RFC2573 SNMP Applications • RFC2461, RFC4861 Neighbor Discovery for IPv6 • RFC2462, RFC4862 IPv6 Stateless Address Auto-configuration (SLAAC) • RFC2464 IPv6 over Ethernet and definition • RFC4291 IPv6 Addressing Architecture • RFC2893, RFC4213 IPv4/IPv6 dual stack function Warranty Information • Warranty: Lifetime 1 Optional 1 Gbps SFP Transceivers • DGS-712 1000BASE-T SFP Transceiver • DEM-310GT 1000BASE-LX SFP Transceiver, Single-mode • DEM-311GT 1000BASE-SX SFP Transceiver, Multimode
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*
