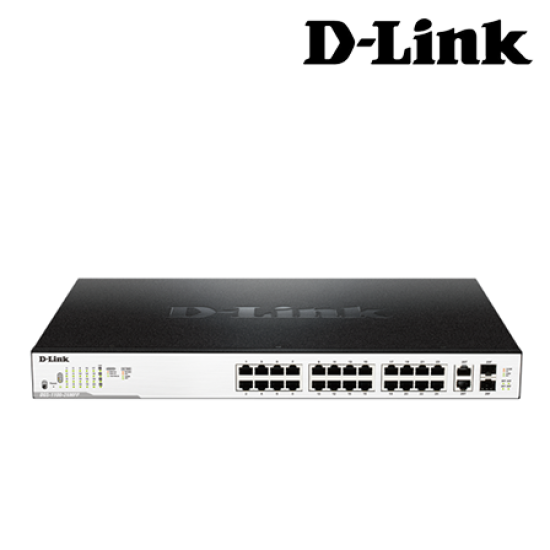

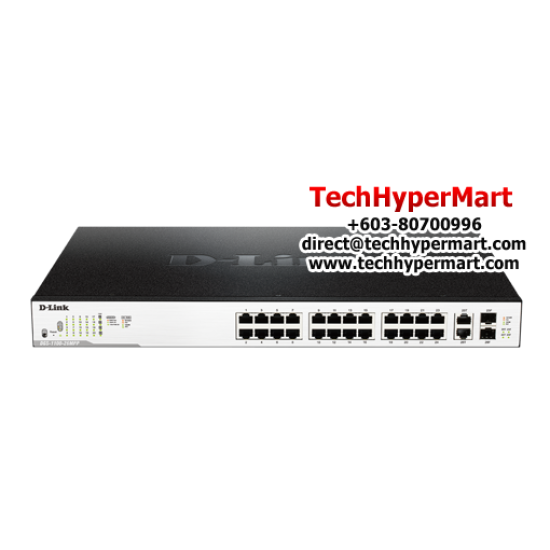

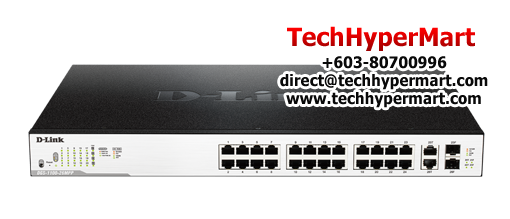

Name: D-Link DGS-1100-26MPP EasySmart Switches (26 Port, Automatic Confguration)
Brand: D-Link
SKU: DGS-1100-26MPP
Price: 2799.00 MYR
Availability: InStock

D-Link DGS-1100-26MPP EasySmart Switches (26 Port, Automatic Confguration)

Hot

Description

PRODUCT DESCRIPTION

D-Link DGS-1100-26MPP EasySmart Switches

26 Port | Automatic Confguration | PoE Support

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

Switches

ADDITIONAL INFORMATION

View Official Website

Warranty
- D-Link Lifetime Warranty
- Manufactured and warranty provided by D-LInk

SPECIFICATIONS

Model
Specifications	Hardware Version Rev B Number of Ports 8 x 10/100/1000 and 2 x Gigabit SFP Port Standard & Functions IEEE 802.3, 802.3u, 802.3ab compliant IEEE 802.3x Flow Control IEEE 802.3az EEE compliant 802.3af 802.3at Half/Full-duplex operation at 10/100Mbps Full-duplex operation at 1000Mbps Auto-Negotiation for each port Auto MDI/MDIX Switching Capacity 20Gbps Max. Forwarding Rate 14.88 Mpps MAC Address Table Size 16K Entries Packet Buffer 1.5Mbytes Forwarding Mode Store and Forward
Power over Ethernet	PoE Standard 802.3af/at PoE Capable Ports Ports 1-8 PoE Power Budget 130W
Physical & Environmental	Power Input 100 to 240 VAC, 50 to 60 Hz Internal Universal Power Supply Max. Power Consumption 141.4 W PoE on; 11.8 W PoE off Standy Power Consumption 10. W Ventilation One Fan Acoustics 45.4 dB(A) Heat Dissipation 570.5 BTU/hr Operating Temperature 23 to 122 °F (-5 to 50 °C) Storage Temperature -40 to 158 °F (-40 to 70 °C) Operating Humidity 0% to 95% non-condensing Storage Humidity 0% to 95% non-condensing Dimensions (W x D x H) 11” x 7.1” x 1.73” (280mm x 180mm x 44 mm) Weight 4.03 lbs (1.83 kg) Certifications FCC Class A CE Class A VCCI Class ASafety UL/cUL CE LVD MTBF 291,575 Hours
Software Features	VLAN Port-based VLAN 802.1Q Tagged VLAN Surveillance VLAN Voice VLAN Management VLAN Asymmetric VLAN (DGS-1100-10MP/-16/-24/-24P/-26MP) VLAN Group Supports 128 static VLAN groups Max. 4094 VIDs
L2 Features	Flow Control 802.3x Flow Control HOL Blocking Prevention Jumbo Frames up to 9216 Bytes IGMP Snooping IGMPv1/v2 Snooping IGMPv3 Awareness Supports 64 Groups 802.3ad Link Aggregation 5 groups, 8 ports per group G.8032 ERPS~Loopback Detection Cable Diagnostics LLDP Port Mirroring One-to-One Many-to-One Statistics Tx Ok Tx Error Rx Ok Rx Error Spanning Tree Protocol 802.1D STP 802.1w RSTP SNTP QoS 802.1p Quality of Service 8 queues per port Queue Handling Strict Weighted Round Robin (WRR) Deficit Rount Robin (DRR) Bandwidth Control Port Based Ingress: minimum granularity 8 Kbps Egress: minimum granularity 64 Kbps Security D-Link Safeguard Traffic Segmentation Broadcast/Multicast/Unknown Unicast Storm Control DoS Attack Prevention SSL Static MAC Address Max. 64 entries
Management	Web-Based GUI Supports IPv4/IPv6 SNMPv1/v2c D-Link Network Assistant Utility
D-Link Green	Power Saving by Link Status LED Shut-off Port Shut-off System hibernation Compliant with Energy Efficient Ethernet (IEEE 802.3az) RoHS Compliant RFC Standards (DGS-1100-05/-08/-08P) RFC 768 UDP RFC 791 IP RFC 792 ICMP RFC 793 TCP RFC 826 ARP RFC 951 BootP Client RFC 1542 BootP/DHCP client RFC 1945 HTTP/1.0 RFC 2647 802.1p RFC 2236, 4451 IGMP Snooping MIB/RFC Standards RFC 768 UDP RFC 791 IP RFC 792 ICMP RFC 793 TCP RFC 826 ARP RFC 951 BootP Client RFC 1542 BootP/DHCP client RFC 2236 IGMP Snooping RFC 1213 MIB II RFC 1493 Bridge MIB
Ordering Information	DGS-1100-10MP 10-Port Gigabit Smart Managed Desktop/Rackmount PoE+ Switch including 2 Gigabit SFP Ports Limited Lifetime Warranty Optional SFP Transceivers DEM-712 1000BASE-T SFP Transceiver DEM-310GT 1000BASE-LX Single-mode Fiber SFP Transceiver DEM-311GT 1000BASE-SX Multimode fiber SFP Transceiver
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*
