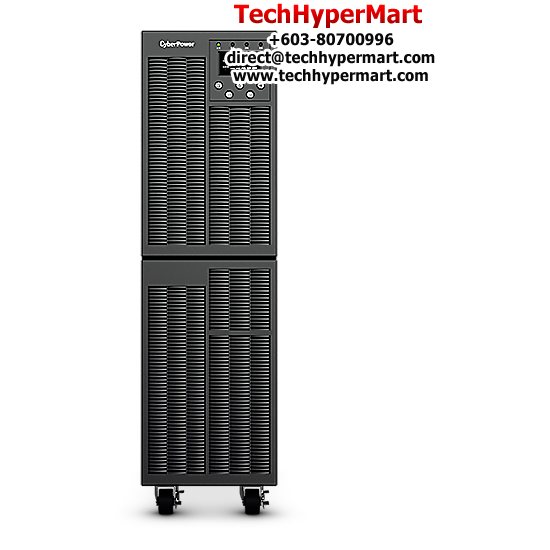

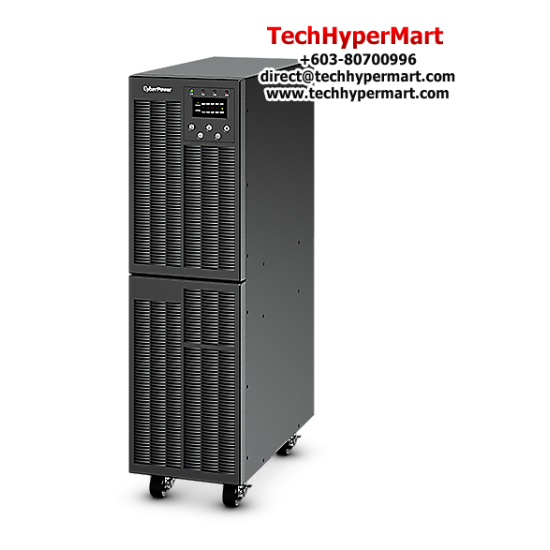

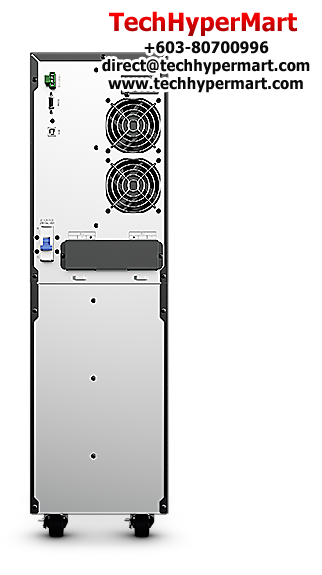

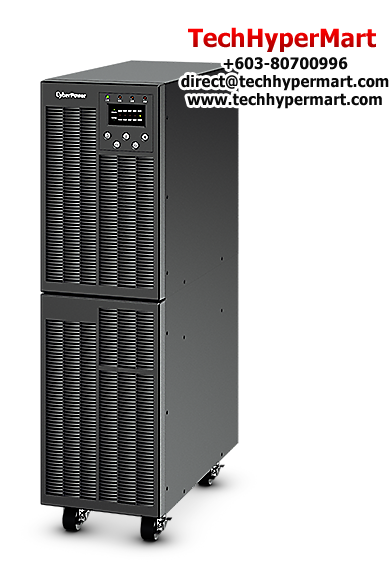

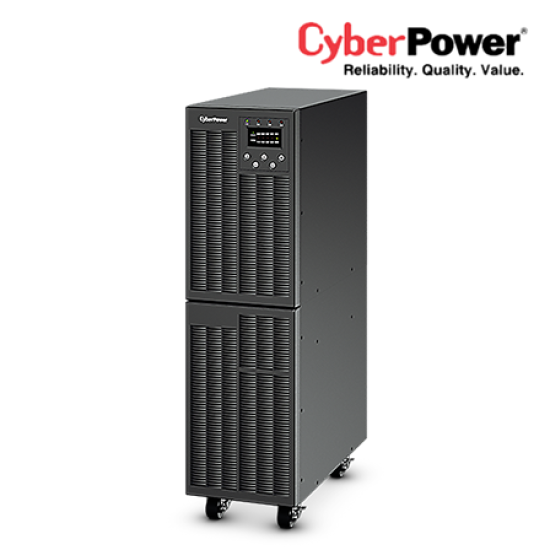

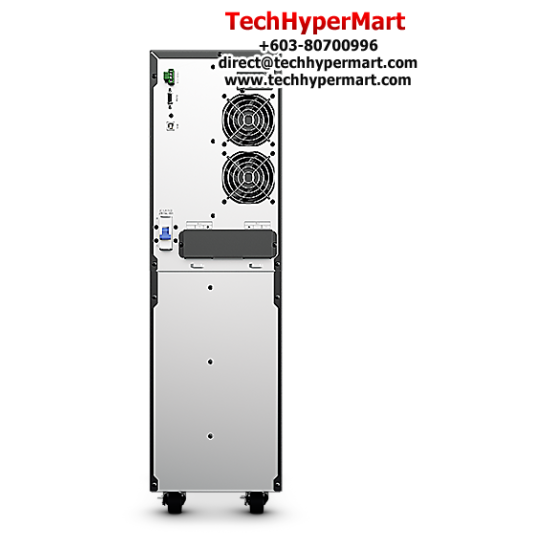

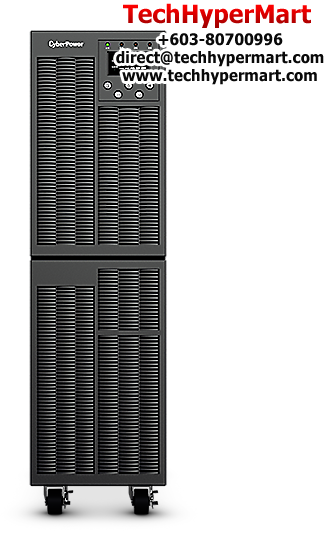

Name: CyberPower OLS6000EC UPS (6000VA, 4800 Watts, 208 ± 1% VAC, Hardwire Terminal Block x 1)
Brand: CyberPower
SKU: OLS6000EC
Price: 6779.00 MYR
Availability: InStock

CyberPower OLS6000EC UPS (6000VA, 4800 Watts, 208 ± 1% VAC, Hardwire Terminal Block x 1)

Description

PRODUCT DESCRIPTION

CyberPower OLS6000EC UPS

6000VA | 4800 Watts | 208 ± 1% VAC | Hardwire Terminal Block x 1

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
* All Prices Exclude delivery/installation/activation fees. *

PACKAGE CONTENTS

ADDITIONAL INFORMATION

View Official Website

Warranty
- 2 Years CyberPower Warranty
- Manufactured and warranty provided by CyberPower

PRODUCT SPECIFICATIONS

Model	OLS6000EC
General	Phase: Single Phase UPS Topology: Online Double Conversion Energy Saving Technology: Online ECO Mode Efficiency > 96% Active PFC Compatibility: Yes
Input	Generator Compatibility: Yes Nominal Input Voltage ( Vac ): 220 Input Voltage Range ( Vac ): 110 ~ 276 Adjustable Voltage Range ( Vac ): 0~80% Load for 110 ~ 276 Vac 0~100% Load for 176 ~ 276 Vac Input Frequency ( Hz ): 60 ± 6 50 ± 5 Input Frequency Detection: Auto-sensing Rated Input Current ( A ): 27.3 Input Power Factor: 0.99 Input Connector Type: Hardwire Terminal Block
Output	Capacity (VA): 6000 Capacity (Watts): 4800 On Battery Waveform: Pure Sine Wave On Battery Voltage(s) ( Vac ): 208 ± 1% 220 ± 1% 230 ± 1% 240 ± 1% Output Voltage Setting: Configurable On Battery Frequency ( Hz ): 60 ± 0.1% 50 ± 0.1% Output Frequency Setting: Configurable Power Factor: 0.8 ECO Mode Voltage Tolerance: ± 10 % Overload Protection: Internal Current Limiting , Circuit Breaker , Fuse Overload Protection (Line Mode): 105~125% Load for 1 min, 125~135% Load for 30 sec, 135~150% Load for 1 sec, >150% Load Immediately Overload Protection (Battery Mode): 105~125% Load for 1 min, 125~135% Load for 30 sec, >135% Load Immediately Overload Protection (Bypass Mode): 125~150% Load for 1 min, 150~170% Load for 10 sec, >170% Load for 1 sec Crest Factor 3 : 1 Harmonic Distortion (Linear Load)： THD<2% Harmonic Distortion (Non-linear Load): THD<5% Internal Bypass: Automatic Bypass Outlet(s) - Total: 1 Outlet Type: Hardwire Terminal Block x 1 Typical Transfer Time ( ms ): 0
Battery	Runtime at Half Load ( min ): 13 Runtime at Full Load ( min ): 5 Typical Recharge Time ( Hours ): 7 Maximum Charging Current ( A ): 1 Start On Battery: Yes Smart Battery Management (SBM): Yes User-replaceable: No Battery Type: Sealed Lead-acid Single Battery Capacity ( AH ): 12 V 7 AH
Surge Protection & Filtering	Surge Suppression ( Joules ): 445 EMI/RFI Filtration: Yes
Management & Communications	LED Indicators: Power On , Line Mode , Battery Mode , Bypass Mode , Battery Capacity , Low Battery , Overload , UPS Fault HID Compliant USB Port(s): 1 Serial Port: RS232 Dry Contact (with Relay): Optional Emergency Power Off (EPO) Port: Yes Audible Alarms: Battery Mode , Low Battery , Overload , Overcharge , Overheat , UPS Fault Management Cable ( pcs ): USB Cable x1 Power Management Software: PowerPanel® Business SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
Physical	Form Factor: Tower Enclosure Construction: Metal Color: Black
Physical Size - UPS Module	Dimensions (WxHxD) (in.): 7.71 x 27.64 x 16.22 Dimensions (WxHxD) (mm.): 196 x 702 x 412 Weight (lbs.): 119 Weight (kg.): 54
Shipping Dimensions	Dimensions (WxHxD) (in.): 13.78 x 36.89 x 22.28 Dimensions (WxHxD) (mm.): 350 x 937 x 566 Weight (lbs.): 133.8 Weight (kg.): 60.7
Environmental	Operating Temperature (°F): 32 ~ 104 Operating Temperature (°C): 0 ~ 40 Operating Relative Humidity (Non-condensing) ( % ): 0 ~ 90 Operating Elevation ( feet/meters ): =1000, Load Derated 1% per 100m from 1000m and 2000m Storage Temperature (°F): 5 ~ 113 Storage Temperature (°C): -15 ~ 45 Storage Relative Humidity (Non-condensing) ( % ): 0 ~ 95 Storage Elevation ( feet/meters ): 0-50,000 feet (0-15,000 meters) Online Thermal Dissipation ( BTU/hr ): 1425 Audible Noise at 1.5M from Surface of Unit ( dBA ): 60
Certifications	RoHS: Yes
* Prices, Features, Package Content and Specifications are subject to change without prior notification. *

CyberPower OLS6000EC UPS (6000VA, 4800 Watts, 208 ± 1% VAC, Hardwire Terminal Block x 1)

Specifications
Reviews

AVR / UPS Specifications
AVR / UPS Backup Time	-
AVR / UPS Capacity	6000VA
AVR / UPS Output	4800VAC
AVR / UPS Protection
AVR / UPS Protection	Internal Current Limiting , Circuit Breaker , Fuse
AVR / UPS Dimensions
AVR / UPS Dimension	196 x 702 x 412
AVR / UPS Weight	54kg
