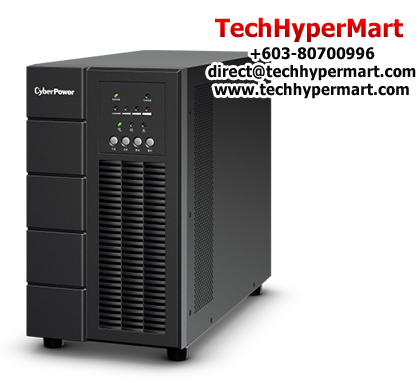

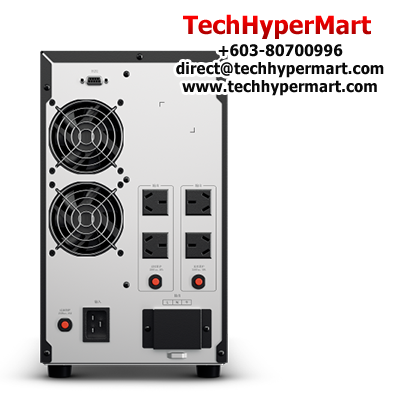

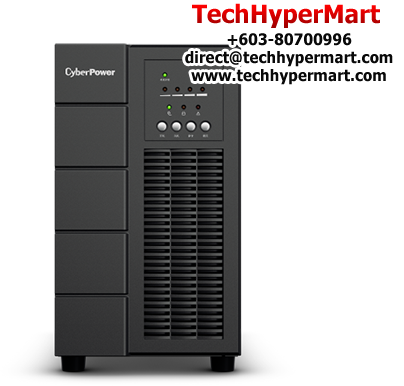

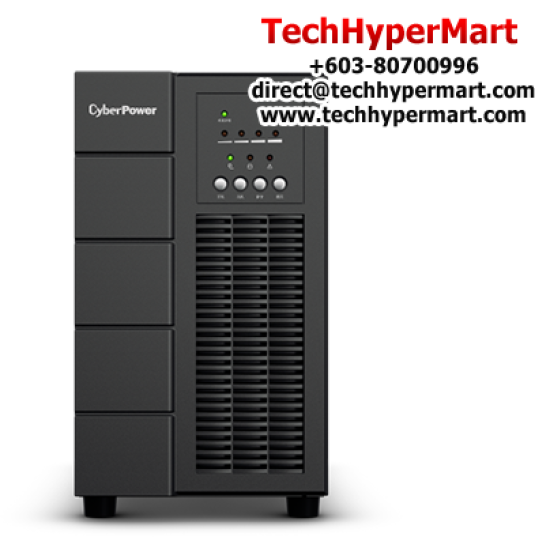

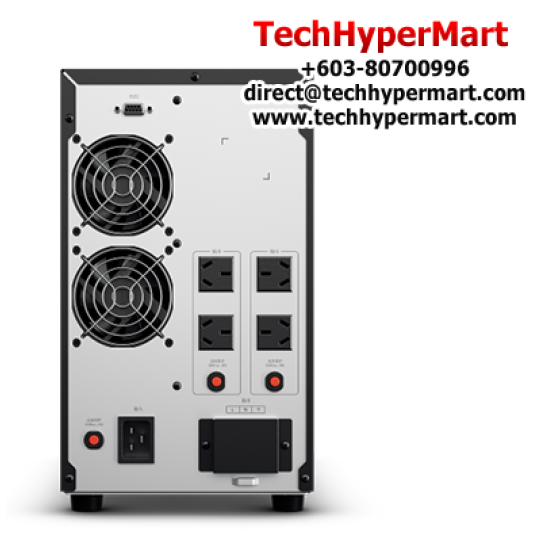

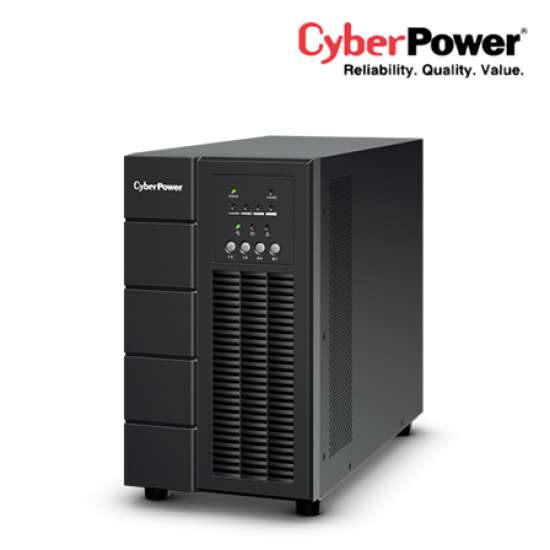

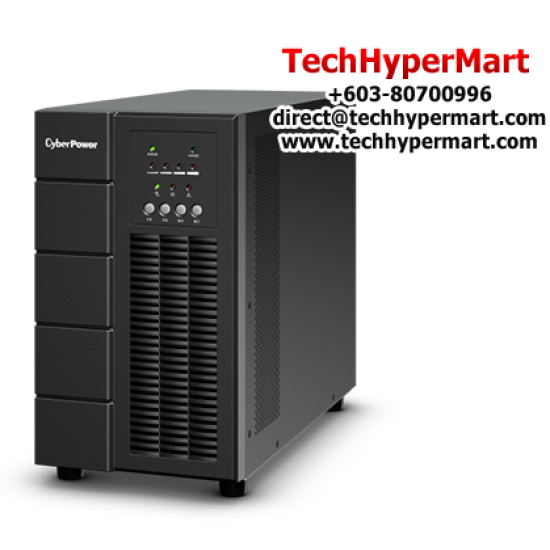

Name: CyberPower OLS3000EC UPS (3000VA, 2400 Watts, 208 ± 1% VAC, CN x4)
Brand: CyberPower
SKU: OLS3000EC
Price: 2999.00 MYR
Availability: InStock

CyberPower OLS3000EC UPS (3000VA, 2400 Watts, 208 ± 1% VAC, CN x4)

Description

PRODUCT DESCRIPTION

CyberPower OLS3000EC UPS

3000VA | 2400 Watts | 208 ± 1% VAC | CN x4

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
* All Prices Exclude delivery/installation/activation fees. *

PACKAGE CONTENTS

ADDITIONAL INFORMATION

View Official Website

Warranty
- 2 Years CyberPower Warranty
- Manufactured and warranty provided by CyberPower

PRODUCT SPECIFICATIONS

Model	OLS3000EC
General	Phase: Single Phase UPS Topology: Online Double Conversion Energy Saving Technology: Online ECO Mode Efficiency > 95% Active PFC Compatibility: Yes
Input	Generator Compatibility: Yes Nominal Input Voltage ( Vac ): 220 ± 10% Input Voltage Range ( Vac ): 190 ~ 300 Adjustable Voltage Range ( Vac ): 0~50% Load for 110 ~ 300 Vac 0~60% Load for 140 ~ 300 Vac 0~80% Load for 160 ~ 300 Vac 0~100% Load for 190 ~ 300 Vac Input Frequency ( Hz ): 50 ± 10 60 ± 10 Input Frequency Detection: Auto-sensing Rated Input Current ( A ): 13 Input Power Factor: 0.98 Input Connector Type: IEC C20 Detachable Power Cord Plug Type: CN x 1 Power Cord Length (ft.): 5.9 Power Cord Length (m.): 1.8
Output	Capacity (VA): 3000 Capacity (Watts): 2400 On Battery Waveform: Pure Sine Wave On Battery Voltage(s) ( Vac ): 208 ± 1% 220 ± 1% 230 ± 1% 240 ± 1% Output Voltage Setting: Configurable On Battery Frequency ( Hz ): 50 ± 0.5% 60 ± 0.5% Output Frequency Setting: Configurable Power Factor: 0.8 ECO Mode Voltage Tolerance: ± 15 % Overload Protection: Internal Current Limiting , Circuit Breaker , Fuse Overload Protection (Line Mode): 110~120% Load for 1 min, >120% Load Immediately Overload Protection (Battery Mode): 110~120% Load for 10 sec, >120% Load Immediately Overload Protection (Bypass Mode): >130% Load Immediately Crest Factor: 3 : 1 Harmonic Distortion (Linear Load): THD<3% Harmonic Distortion (Non-linear Load): THD<5% Internal Bypass: Automatic Bypass , Manual Bypass Maintenance Bypass: Yes Outlet(s) - Total: 5 Outlet Type: Hardwire Terminal Block x 1 CN x 4 Outlet(s) - Battery & Surge Protected: 4 Typical Transfer Time ( ms ): 0
Battery	Runtime at Half Load ( min ): 10 Runtime at Full Load ( min ): 3.5 Typical Recharge Time ( Hours ): 5 Maximum Charging Current ( A ): 1 Start On Battery: Yes Smart Battery Management (SBM): Yes User-replaceable: No Battery Type: Sealed Lead-acid Battery Quantity (Each RBP) ( pcs ): 6 Battery Voltage (Each RBP) ( V ): 72 Single Battery Capacity ( AH ): 12 V 7 AH
Surge Protection & Filtering	Surge Suppression ( Joules ): 440 EMI/RFI Filtration: Yes
Management & Communications	LED Indicators: Power On , Line Mode , Battery Mode , Bypass Mode , Battery Capacity , Low Battery , Overload , UPS Fault , Replace Battery Serial Port: RS232 Audible Alarms: Battery Mode , Low Battery , Overload , Overcharge , Overheat , UPS Fault , Replace Battery Management Cable ( pcs ): Power Cord x1 Power Management Software: PowerPanel® Business SNMP/HTTP Remote Monitoring: External Slot via RS232
Physical	Form Factor: Tower Enclosure Construction: Metal Color: Black
Physical Size - UPS Module	Dimensions (WxHxD) (in.): 7.72 x 13.5 x 16.38 Dimensions (WxHxD) (mm.): 196 x 343 x 416 Weight (lbs.): 49.9 Weight (kg.): 22.6
Shipping Dimensions	Dimensions (WxHxD) (in.): 11.6 x 18.03 x 20.43 Dimensions (WxHxD) (mm.): 295 x 458 x 519 Weight (lbs.): 56.44 Weight (kg.): 25.6
Environmental	Operating Temperature (°F): 32 ~ 104 Operating Temperature (°C): 0 ~ 40 Operating Relative Humidity (Non-condensing) ( % ): 20 ~ 90 Operating Elevation ( feet/meters ): 0-5,000 feet (0-1,500 meters) Storage Temperature (°F): -4 ~ 122 Storage Temperature (°C): -20 ~ 50 Storage Relative Humidity (Non-condensing) ( % ): 10 ~ 90 Storage Elevation ( feet/meters ): 0-5,000 feet (0-1,500 meters) Online Thermal Dissipation ( BTU/hr ): 1126 Audible Noise at 1.5M from Surface of Unit ( dBA ): 45
Certifications	Certifications: CE RoHS: Yes
* Prices, Features, Package Content and Specifications are subject to change without prior notification. *

CyberPower OLS3000EC UPS (3000VA, 2400 Watts, 208 ± 1% VAC, CN x4)

Specifications
Reviews

AVR / UPS Specifications
AVR / UPS Backup Time	-
AVR / UPS Capacity	3000VA
AVR / UPS Output	2400VAC
AVR / UPS Protection
AVR / UPS Protection	Internal Current Limiting , Circuit Breaker , Fuse
AVR / UPS Dimensions
AVR / UPS Dimension	196 x 343 x 416
AVR / UPS Weight	22.6kg
