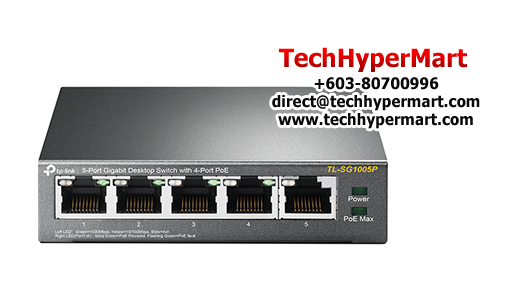

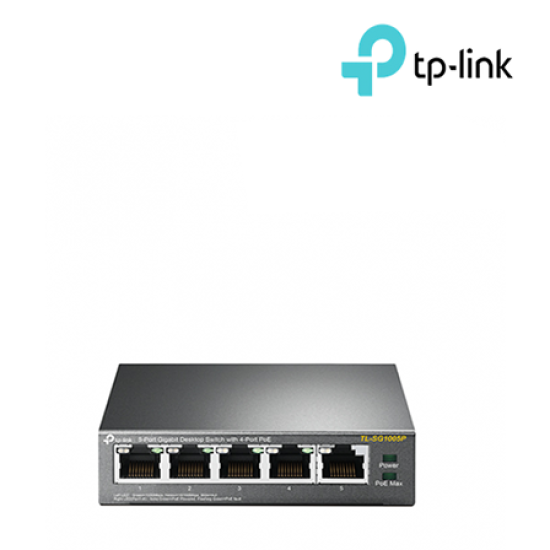

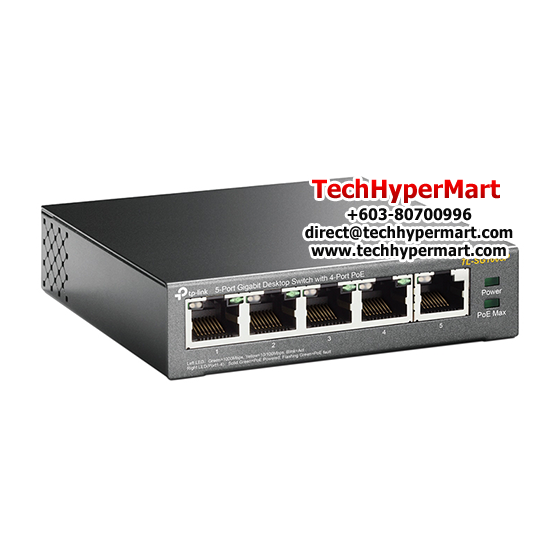

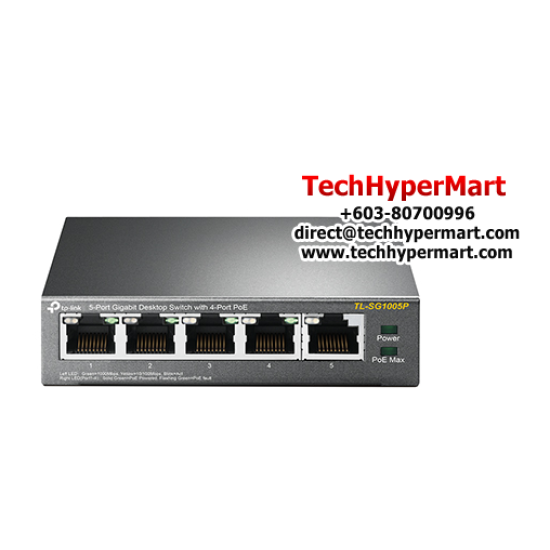

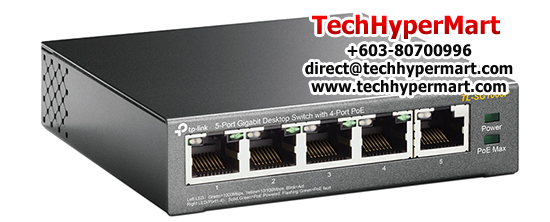

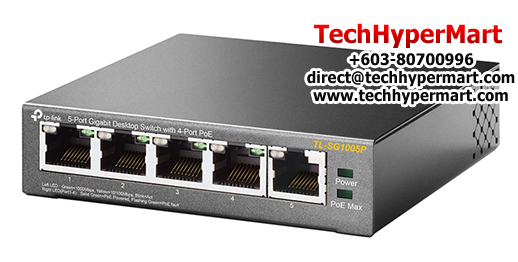

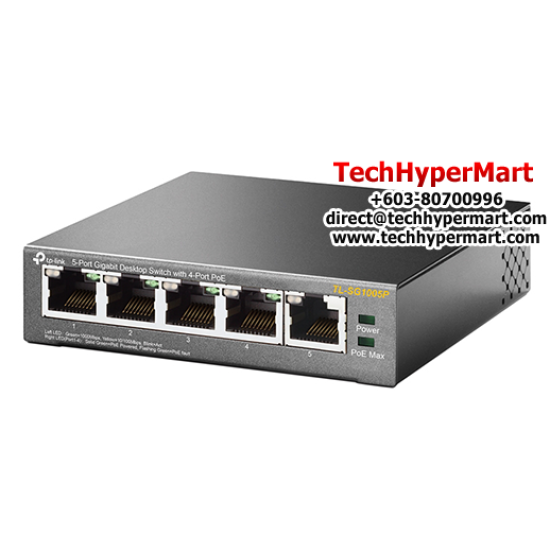

Name: TP-Link TL-SG1005P Unmanaged POE Switch (5-Port, 5 10/100/1000Mbps RJ45 ports)
Brand: TP-Link
SKU: TL-SG1005P
Price: 229.00 MYR
Availability: InStock

TP-Link TL-SG1005P Unmanaged POE Switch (5-Port, 5 10/100/1000Mbps RJ45 ports)

Description

PRODUCT DESCRIPTION

TP-Link TL-SG1005P Unmanaged POE Switch

5-Port | 5 10/100/1000Mbps RJ45 ports | Supports PoE Power up to 15.4W

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

Switches

ADDITIONAL INFORMATION

View Official Website

Warranty
- 3 Years TP-Link Warranty
- Manufactured and warranty provided by TP-Link

SPECIFICATIONS

Model	TL-SG1005P
Hardware Features
Interface	5 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
External Power Supply	External Power Adapter(Output: 48VDC / 1.25A) PoE Ports (RJ45) Standard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 56W
Backbound Bandwidth	10Gbps
Mac Address Table	2K
Dimensions ( W x D x H )	3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Max Power Consumption	3.95W(220/50Hz. no PD connected) 64.44W(220/50Hz. with 55W PD connected)
Max Heat Dissipation	13.48BTU/h(no PD connected) 219.87BTU/h(with 56W PD connected)
Software Features
Advanced Features	Compatible With IEEE 802.3af Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping
Transfer Method	Store-And-Forward
others
Certification	FCC, CE, RoHS
Package Contents	TL-SG1005P, Power Adapter, Installation Guide
Consumption	4.26 watts (max. no PD connected) 63.31 watts (max. with 56w PD connected)
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*
