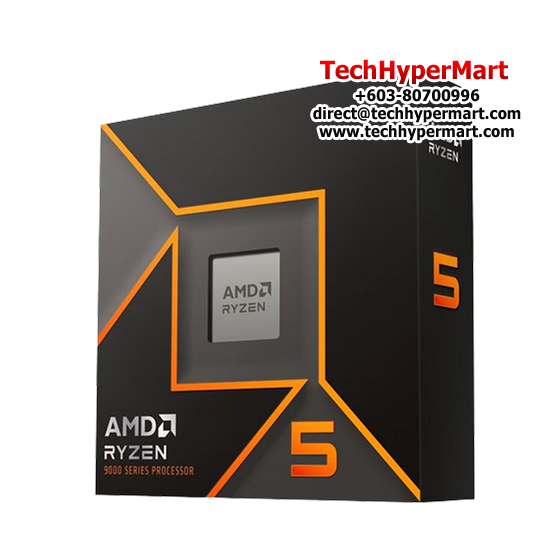

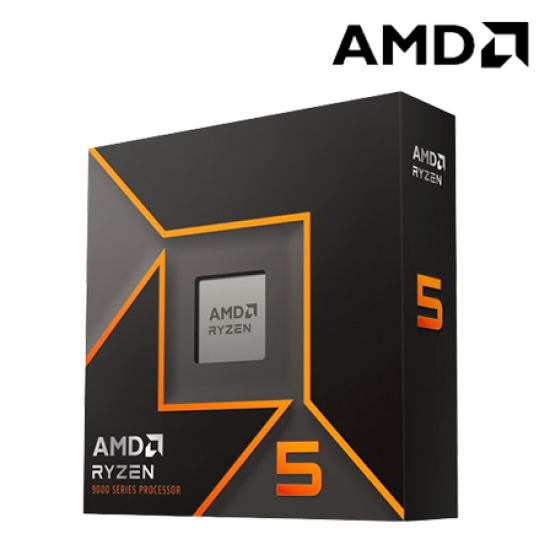

AMD RYZEN 5 9600X CPU Processor (6MB Cache, 5.4GHz, Socket AM5, 6 Cores)

Description

PRODUCT DESCRIPTION

AMD RYZEN 5 9600X CPU Processor

6MB Cache | 5.4GHz | Socket AM5 | 6 Cores

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
* All Prices Exclude delivery/installation/activation fees. *

PACKAGE CONTENTS

Processor

ADDITIONAL INFORMATION

View Official Website

Warranty
- 3 Years AMD Warranty
- Manufactured and warranty provided by AMD

PRODUCT SPECIFICATIONS

Model	AMD RYZEN-5-9600X
Specifications	Name AMD Ryzen™ 5 9600X Family Ryzen Series Ryzen 9000 Series Form Factor Desktops , Boxed Processor Market Segment Enthusiast Desktop AMD PRO Technologies No Consumer Use Yes Regional Availability Global Former Codename Granite Ridge AM5 Architecture Zen 5 # of CPU Cores 6 Multithreading (SMT) Yes # of Threads 12 Max. Boost Clock Up to 5.4 GHz Base Clock 3.9 GHz L1 Cache 480 KB L2 Cache 6 MB L3 Cache 32 MB Default TDP 65W Processor Technology for CPU Cores TSMC 4nm FinFET Processor Technology for I/O Die TSMC 6nm FinFET Package Die Count 2 Unlocked for Overclocking Yes AMD EXPO™ Memory Overclocking Technology Yes Precision Boost Overdrive Yes Curve Optimizer Voltage Offsets Yes AMD Ryzen™ Master Support Yes CPU Socket AM5 Supporting Chipsets A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 CPU Boost Technology Precision Boost 2 Instruction Set x86-64 Supported Extensions AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 Thermal Solution (PIB) Not Included Recommended Cooler Premium air cooler recommended for optimal performance Max. Operating Temperature (Tjmax) 95°C Launch Date 08/08/2024 *OS Support Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity	Native USB 3.2 Gen 2 (10Gbps) Ports 4 Native USB 2.0 (480Mbps) Ports 1 PCI Express® Version PCIe® 5.0 Native PCIe® Lanes (Total/Usable) 28 , 24 Additional Usable PCIe Lanes from Motherboard X870E 8x Gen4 X870 4x Gen4 X670E 12x Gen4 X670 12x Gen4 B650E 8x Gen4 B650 8x Gen4 NVMe Support Boot , RAID0 , RAID1 , RAID5 , RAID10 System Memory Type DDR5 Memory Channels 2 Max. Memory 192 GB System Memory Subtype UDIMM Max Memory Speed 2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600 ECC Support Yes (Requires mobo support)
Graphics Capabilities	Graphics Model AMD Radeon™ Graphics Graphics Core Count 2 Graphics Frequency 2200 MHz USB Type-C® DisplayPort™ Alternate Mode Yes
Product IDs	Product ID Boxed 100-100001405WOF Product ID Tray 100-000001405 Key Feature Supported Technologies AMD EXPO™ Technology , AMD Ryzen™ Technologies
* Prices, Features, Package Content and Specifications are subject to change without prior notification. *

AMD RYZEN 5 9600X CPU Processor (6MB Cache, 5.4GHz, Socket AM5, 6 Cores)

Specifications
Reviews

CPU Specifications
CPU # of Cores of Thread	6
CPU Cache	6MB
CPU Manufacturor	AMD
CPU Max Turbo Frequency	-
CPU Processor Based Frequency	-
CPU Socket	AM5
CPU Type	For Desktop
