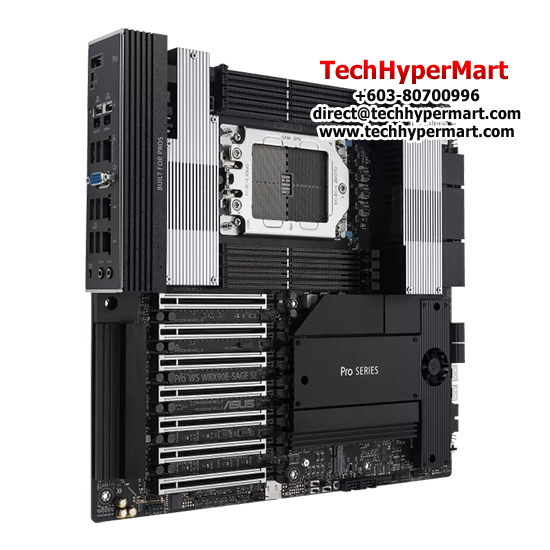

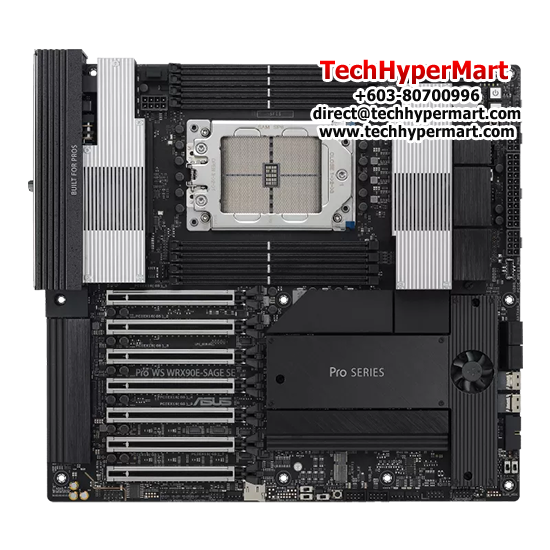

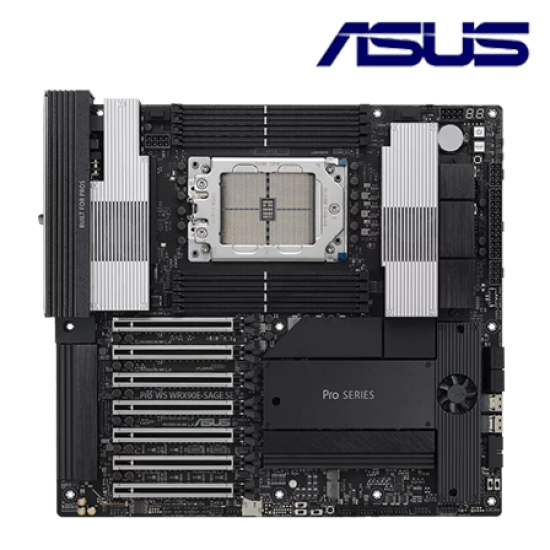

Name: Asus PRO WS WRX90E-SAGE SE Motherboard (EEB, AMD WRX90 Chipset, Socket STR5, DDR5 memory compatibility)
Brand: Asus
SKU: PRO WS WRX90E-SAGE SE
Price: 6219.00 MYR
Availability: InStock

Asus PRO WS WRX90E-SAGE SE Motherboard (EEB, AMD WRX90 Chipset, Socket STR5, DDR5 memory compatibility)

Description

PRODUCT DESCRIPTION

Asus PRO WS WRX90E-SAGE SE Motherboard

EEB | AMD WRX90 Chipset | Socket STR5 | DDR5 memory compatibility

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
* All Prices Exclude delivery/installation/activation fees. *

PACKAGE CONTENTS

Motherboard

ADDITIONAL INFORMATION

View Official Website

Warranty
- 1 years Asus Warranty
- Manufactured and warranty provided by Asus

PRODUCT SPECIFICATIONS

Model	PRO WS WRX90E-SAGE SE
CPU	AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series* *Refer to www.asus.com for CPU support list.
Chipset	AMD WRX90 Chipset
Memory	8 x DIMM slots, DDR5, ECC Registered Memory* 8 Channel Memory Architecture *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Graphics	AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors* 6 x PCIe 5.0 x16 slots 1 x PCIe 5.0 x16 slot (x8 mode) Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/) *To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Expansion Slots	AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors* 6 x PCIe 5.0 x16 slots 1 x PCIe 5.0 x16 slot (x8 mode) Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/) *To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports* AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD WRX90 Chipset 2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600) 1 x Intel® dual 10Gb Ethernet ASUS LANGuard
USB	Rear USB (Total 9 ports) 2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 ports (2 x Type-A ) Front USB (Total 7 ports) 1 x USB 20Gbpsconnector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5G ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio	Realtek ALC1220P Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback Audio Features - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output. This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.
Back I/O Ports	2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (2 x Type-A) 1 x VGA port 2 x mini DisplayPort IN 1 x Intel® dual 10Gb Ethernet ports 1 x Realtek 1Gb Ethernet port 2 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x W_PUMP+ header 5 x 4-pin Chassis Fan headers 2 x 4-pin VRM Fan header (with VRM FAN onboard) 1 x 4-pin M.2 Fan header (with M.2 FAN onboard) Power related 1 x 24-pin Main Power connectors 2 x 8-pin +12V Power connectors 2 x 8-pin PCIe to CPU power connectors 2 x 8-pin PCIe Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 2 x SlimSAS port USB 1 x USB 20Gbps connector supports USB Type-C® 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Chassis intrusion header 1 x COM port header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x LN2 mode jumper 1 x M.2 slot (Key E) 7 x ProbeIt measurement points 1 x ReTry button 1 x RSVD switch 1 x Slow mode switch 1 x Safe boot button 1 x SPI TPM header (14-1 pin) 1 x Start button 1 x 10-1 pin system panel header 1 x Thermal sensor header
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with SPS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - Q-Release Slim (with PCIe SafeSlot) - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate and onboard thermal pads - M.2 heatsink - Steel backplate - VRM heatsink design with active fans ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection BMC Related 1 x BMC switch 1 x BMC LAN fixed IP switch 1 x IPMI switch 1 x Message LED header 1 x microSD card socket 2 x LAN LED headers 1 x Location LED header 1 x Location button header 1 x PSU_SMB header 1 x SMART_PSU switch 1 x VGA switch 1 x VGA header (Dedicated Management for AST2600) 1 x VPP_I2C header
Software Features	ASUS Exclusive Software Armoury Crate - Fan Xpert 4 ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash Utility FlexKey IT Management software supported - ASUS Control Center Express(ACCE)
BIOS	256 Mb Flash ROM, UEFI AMI BIOS(text-based)
Manageability	WOL by PME, PXE (UEFI mode)
Operating System	Windows® 10 64-bit
Form Factor	EEB Form Factor 12 inch x 13 inch (30.5 cm x 33 cm)
Prices, Features, Package Content and Specifications are subject to change without prior notification.

Asus PRO WS WRX90E-SAGE SE Motherboard (EEB, AMD WRX90 Chipset, Socket STR5, DDR5 memory compatibility)

Specifications
Reviews

Motherboard Specifications
Motherboard Chipset	AMD WRX90 Chipset
Motherboard CPU Socket	sTR5
Motherboard Processor Interface	Intel
Motherboard Processors Supported	AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series* *Refer to www.asus.com for CPU support list.
Motherboard Memory
Motherboard Max Memory	-
Motherboard Memory Channel	-
Motherboard RAM DIMM	8
Motherboard RAM Type	DIMM
Motherboard Dimensions
Motherboard Dimension	30.5 cm x 33 cm
Motherboard Form Factor	EEB
