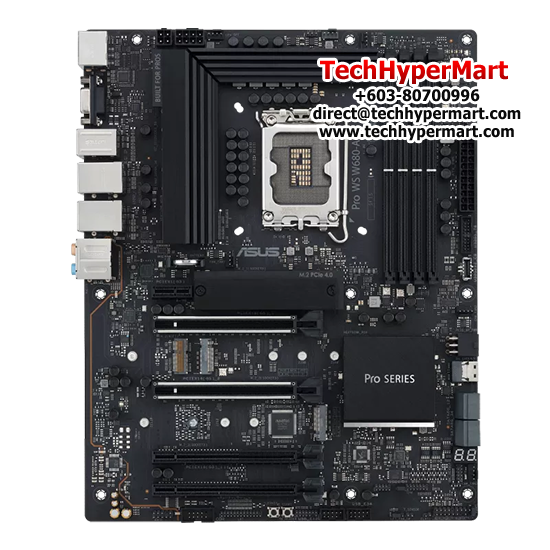

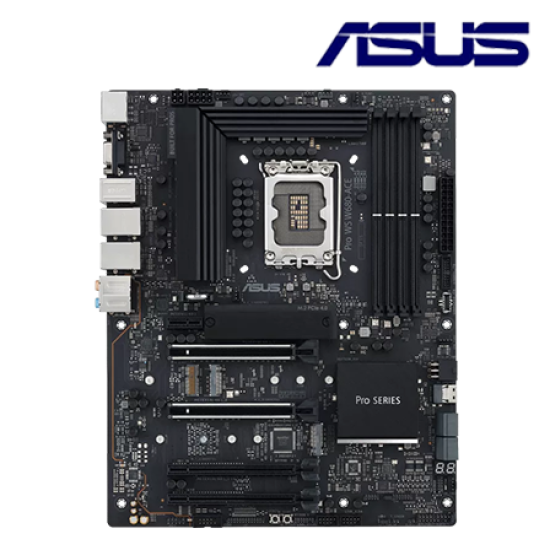

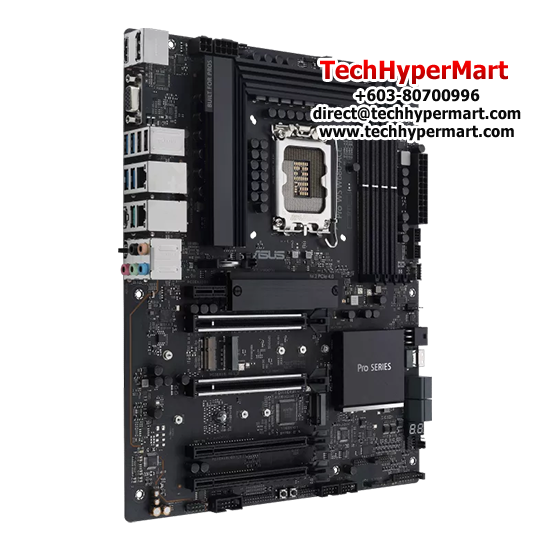

Name: Asus PRO WS W680-ACE Motherboard (ATX, Intel W680 Chipset, Socket LGA1700, DDR5 memory compatibility)
Brand: Asus
SKU: PRO WS W680-ACE
Price: 1899.00 MYR
Availability: InStock

Asus PRO WS W680-ACE Motherboard (ATX, Intel W680 Chipset, Socket LGA1700, DDR5 memory compatibility)

Description

PRODUCT DESCRIPTION

Asus PRO WS W680-ACE Motherboard

ATX | Intel W680 Chipset | Socket LGA1700 | DDR5 memory compatibility

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
* All Prices Exclude delivery/installation/activation fees. *

PACKAGE CONTENTS

Motherboard

ADDITIONAL INFORMATION

View Official Website

Warranty
- 1 years Asus Warranty
- Manufactured and warranty provided by Asus

PRODUCT SPECIFICATIONS

Model	PRO WS W680-ACE
CPU	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* * Refer to www.asus.com for CPU support list.
Chipset	Intel® W680 Chipset
Memory	4 x DIMM, Max. 192GB, DDR5 ECC and Non-ECC Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort 1 x HDMI® port* 1 x VGA port * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 8K@60Hz as specified in DisplayPort 1.4. *Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	Intel® Core™ Processors (14th & 13th & 12th Gen)* - 2 x PCIe 5.0 x16 slots (support x16 or x8 / x8 mode) Intel® W680 Chipset - 2 x PCIe 3.0 x16 slots (supports x4 mode) - 1 x PCIe 3.0 x1 slot * Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).
Storage	Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen) - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® W680 Chipset - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) - 4 x SATA 6Gb/s ports - 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices)* * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. * SlimSAS slot can support up to 4 SATA devices via a transfer cable. the cable is purchased separately.
Ethernet	2 x Intel® 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately.
USB	Rear USB (Total 8 ports) - 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®) - 4 x USB 3.2 Gen 1 ports (4 x Type-A) - 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) - 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) - 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports - 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit
Back I/O Ports	-2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®) -4 x USB 3.2 Gen 1 ports (4 x Type-A) -2 x USB 2.0 ports (2 x Type-A) -1 x DisplayPort -1 x HDMI® port -1 x VGA port -2 x Intel® 2.5Gb Ethernet ports -5 x Audio jacks -1 x BIOS FlashbackTM button
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin W_PUMP+ header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 1 x 6-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS port USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x LPT header 1 x T-sensor 1 x Clear CMOS header 1 x COM Port header 1 x BMC Header 1 x Front Panel Audio header (AAFP) 1 x Start button 1 x Flexkey button 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x M.2 slot (Key E) 1 x LPT_P80 Switch 1 x Thunderbolt™ header
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-Code - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - SafeDIMM - SafeSlot - BIOS FlashBack™ button - BIOS FlashBack™ LED Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability
Software Features	Intel® vPro support ASUS Exclusive Software Armoury Crate - Fan Xpert 4 - Power Saving ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR IT Management software supported - ASUS Control Center Express(ACCE) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 FlexKey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Operating System	Windows® 11, Windows® 10 64-bit
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Prices, Features, Package Content and Specifications are subject to change without prior notification.

Asus PRO WS W680-ACE Motherboard (ATX, Intel W680 Chipset, Socket LGA1700, DDR5 memory compatibility)

Specifications
Reviews

Motherboard Specifications
Motherboard Chipset	Intel® W680 Chipset
Motherboard CPU Socket	LGA1700
Motherboard Processor Interface	Intel
Motherboard Processors Supported	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* * Refer to www.asus.com for CPU support list.
Motherboard Memory
Motherboard Max Memory	192GB
Motherboard Memory Channel	-
Motherboard RAM DIMM	4
Motherboard RAM Type	DIMM
Motherboard Dimensions
Motherboard Dimension	30.5 cm x 24.4 cm
Motherboard Form Factor	ATX
