AMD RYZEN 9 9950X CPU Processor (16MB Cache, 4.3GHz, Socket AM5, 16 Cores)

Description

PRODUCT DESCRIPTION

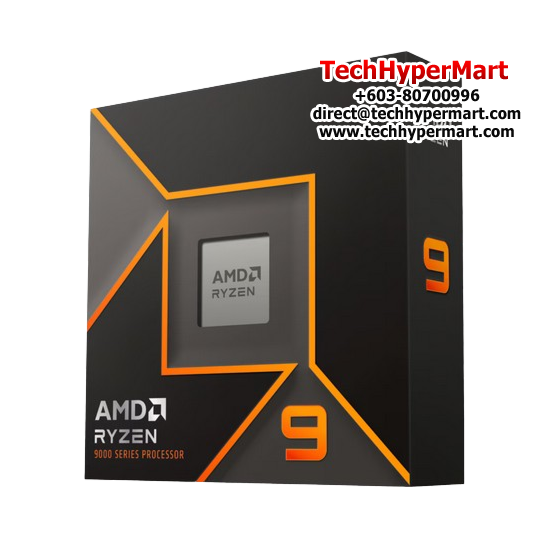

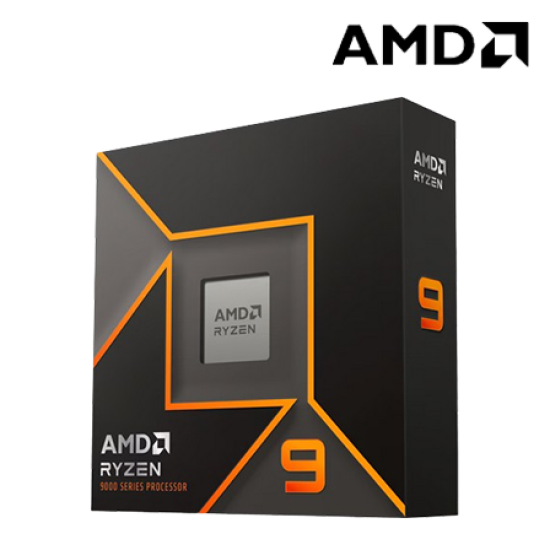

AMD RYZEN 9 9950X CPU Processor

16MB Cache | 4.3GHz | Socket AM5 | 16 Cores

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
* All Prices Exclude delivery/installation/activation fees. *

PACKAGE CONTENTS

Processor

ADDITIONAL INFORMATION

View Official Website

Warranty
- 3 Years AMD Warranty
- Manufactured and warranty provided by AMD

PRODUCT SPECIFICATIONS

Model	AMD RYZEN-9-9950X
Specifications	Name AMD Ryzen™ 9 9950X Family Ryzen Series Ryzen 9000 Series Form Factor Desktops , Boxed Processor Market Segment Enthusiast Desktop AMD PRO Technologies No Consumer Use Yes Regional Availability Global Former Codename Granite Ridge AM5 Architecture Zen 5 # of CPU Cores 16 Multithreading (SMT) Yes # of Threads 32 Max. Boost Clock Up to 5.7 GHz Base Clock 4.3 GHz L1 Cache 1280 KB L2 Cache 16 MB L3 Cache 64 MB Default TDP 170W Processor Technology for CPU Cores TSMC 4nm FinFET Processor Technology for I/O Die TSMC 6nm FinFET Package Die Count 3 Unlocked for Overclocking Yes AMD EXPO™ Memory Overclocking Technology Yes Precision Boost Overdrive Yes Curve Optimizer Voltage Offsets Yes AMD Ryzen™ Master Support Yes CPU Socket AM5 Supporting Chipsets A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 CPU Boost Technology Precision Boost 2 Instruction Set x86-64 Supported Extensions AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 Thermal Solution (PIB) Not Included Recommended Cooler Liquid cooler recommended for optimal performance Max. Operating Temperature (Tjmax) 95°C Launch Date 08/15/2024 *OS Support Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity	Native USB 3.2 Gen 2 (10Gbps) Ports 4 Native USB 2.0 (480Mbps) Ports 1 PCI Express® Version PCIe® 5.0 Native PCIe® Lanes (Total/Usable) 28 , 24 Additional Usable PCIe Lanes from Motherboard X870E 8x Gen4 X870 4x Gen4 X670E 12x Gen4 X670 12x Gen4 B650E 8x Gen4 B650 8x Gen4 NVMe Support Boot , RAID0 , RAID1 , RAID5 , RAID10 System Memory Type DDR5 Memory Channels 2 Max. Memory 192 GB System Memory Subtype UDIMM Max Memory Speed 2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600 ECC Support Yes (Requires mobo support)
Graphics Capabilities	Graphics Model AMD Radeon™ Graphics Graphics Core Count 2 Graphics Frequency 2200 MHz USB Type-C® DisplayPort™ Alternate Mode Yes
Product IDs	Product ID Boxed 100-100001277WOF Product ID Tray 100-000001277 Key Features Supported Technologies AMD EXPO™ Technology , AMD Ryzen™ Technologies
* Prices, Features, Package Content and Specifications are subject to change without prior notification. *

AMD RYZEN 9 9950X CPU Processor (16MB Cache, 4.3GHz, Socket AM5, 16 Cores)

Specifications
Reviews

CPU Specifications
CPU # of Cores of Thread	16
CPU Cache	16MB
CPU Manufacturor	AMD
CPU Max Turbo Frequency	-
CPU Processor Based Frequency	-
CPU Socket	AM5
CPU Type	For Desktop
