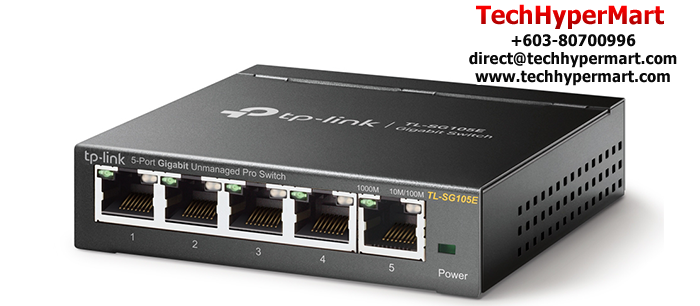

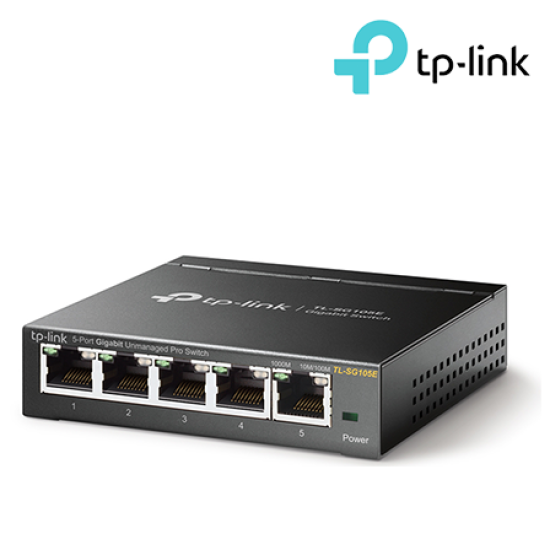

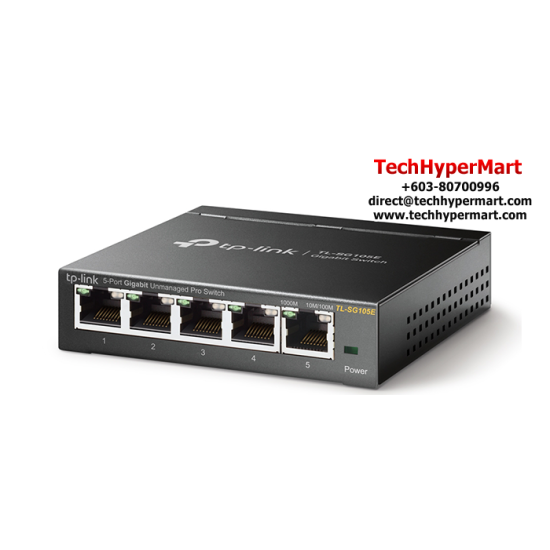

Name: TP-Link TL-SG105E Gigabit Easy Smart Switch (5-Port, 5 10/100/1000Mbps RJ45 Ports, Steel Case)
Brand: TP-Link
SKU: TL-SG105E
Price: 119.00 MYR
Availability: InStock

TP-Link TL-SG105E Gigabit Easy Smart Switch (5-Port, 5 10/100/1000Mbps RJ45 Ports, Steel Case)

Description

PRODUCT DESCRIPTION

TP-Link TL-SG105E Easy Smart Switch

5-Port | 5 10/100/1000Mbps RJ45 Ports

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

Switches

ADDITIONAL INFORMATION

View Official Website

Warranty
- 3 Years TP-Link Warranty
- Manufactured and warranty provided by TP-Link

SPECIFICATIONS

Model	TL-SG105E
Hardware Features
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface	5 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Power Supply	External Power Adapter(Output: 9VDC/0.6A)
Power Consumption	Maximum: 2.49W (220V/50Hz)
Dimensions ( W x D x H )	3.9 * 3.9 1.0 in. (100 98 *25 mm)
Performance
Packet Forwarding Rate	7.4Mpps
MAC Address Table	2K
Packet Buffer Memory	1.5Mb
Jumbo Frame	15KB
Software Features
Quality of Service	Support Port-based/802.1p/DSCP priority 2 Support 4 priority queues Rate Limit Storm Control
L2 Features	IGMP Snooping V1/V2/V3 Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention
VLAN	Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
Transmission Method	Store-And-Forward
Others
Certification	FCC, CE, RoHS
System Requirements	Microsoft® Windows® for running Utility
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*
