Name: TP-Link ES205G Managed Switch (5-Port, 5× 10/100/1000 Mbps RJ45 Ports)
Brand: TP-Link
SKU: ES205G
Price: 169.00 MYR
Availability: InStock

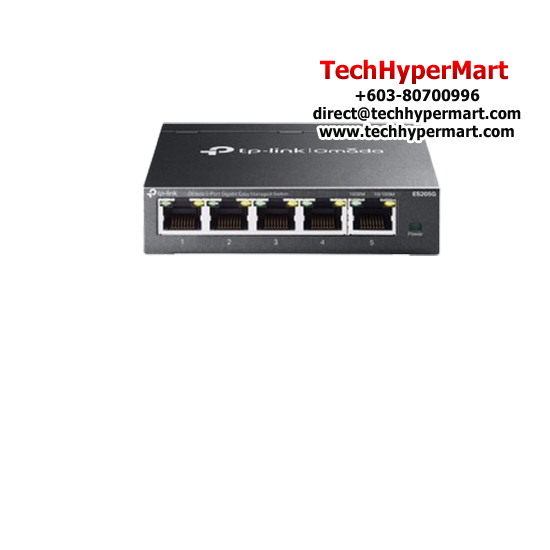

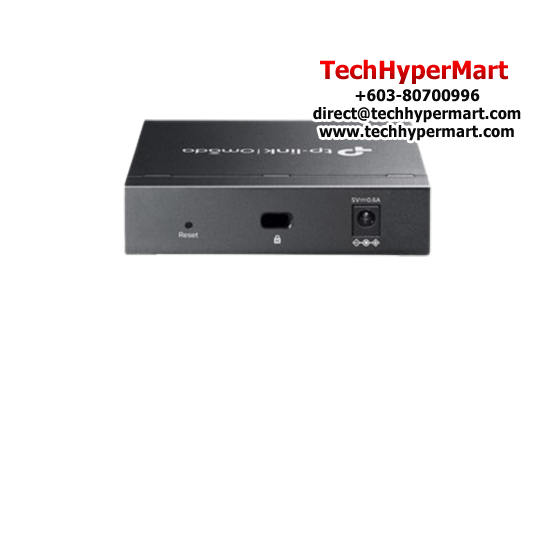

TP-Link ES205G Managed Switch (5-Port, 5× 10/100/1000 Mbps RJ45 Ports)

Description

PRODUCT DESCRIPTION

TP-Link ES205G Managed Switch

5-Port | 5× 10/100/1000 Mbps RJ45 Ports

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

Switches

ADDITIONAL INFORMATION

View Official Website

Warranty
- 3 Years TP-Link Warranty
- Manufactured and warranty provided by TP-Link

SPECIFICATIONS

Model	ES205G
HARDWARE FEATURES	Interface • 5× 10/100/1000 Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX Fan Quantity Fanless Installation • Desktop • Wall Mount Physical Security Lock √ Power Supply External DC Power Adapter (Output: 5 VDC/ 0.6 A) Dimensions ( W x D x H ) 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)
PERFORMANCE	Switching Capacity 10 Gbps Packet Forwarding Rate 7.4 Mpps MAC Address Table 8 K Packet Buffer Memory 4 Mbits Jumbo Frame 15 KB
SOFTWARE FEATURES	Quality of Service • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control△ L2 Features • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP L2 Multicast • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave VLAN • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID Transmission Method Store-And-Forward
MANAGEMENT	Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller Management Features • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration†
OTHERS	Certification FCC, CE, RoHS Package Contents • ES205G • Power Adapter • Installation Guide • Rubber Feet Environment • Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*
