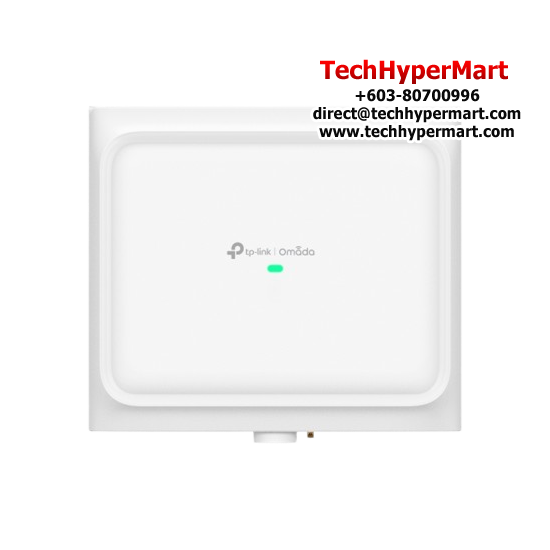

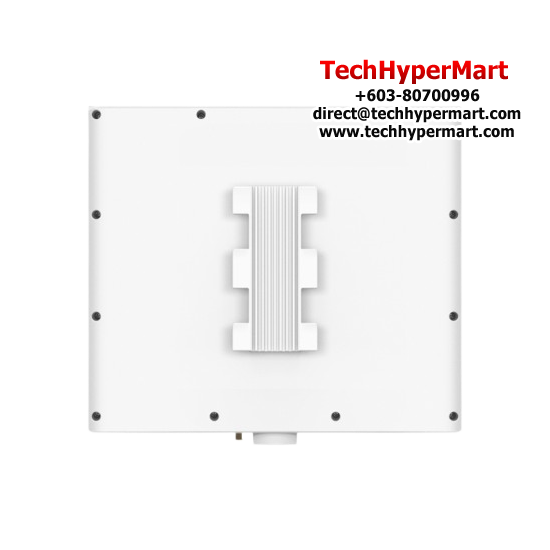

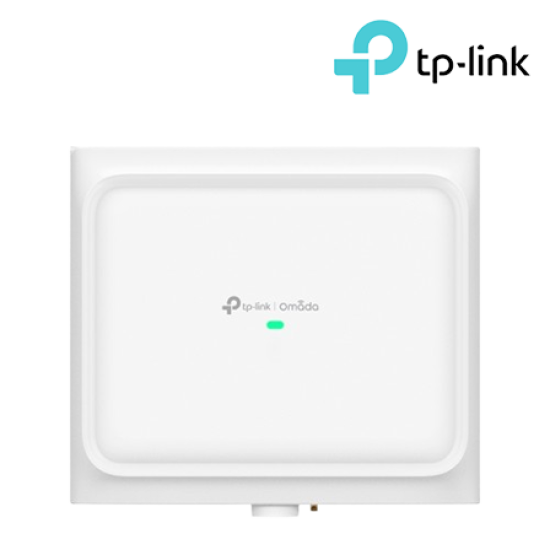

Name: TP-Link EAP772-Outdoor Access Point (574Mbps Wireless AX, 6 Internal Antennas, 2.4 GHz and 5 GHz)
Brand: TP-Link
SKU: EAP772-Outdoor
Price: 1899.00 MYR
Availability: InStock

TP-Link EAP772-Outdoor Access Point (574Mbps Wireless AX, 6 Internal Antennas, 2.4 GHz and 5 GHz)

Description

PRODUCT DESCRIPTION

TP-Link EAP772-Outdoor Access Point

574Mbps Wireless AX | 6 Internal Antennas | 2.4 GHz and 5 GHz

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

Router

ADDITIONAL INFORMATION

View Official Website

Warranty
- 3 Years TP-Link Warranty
- Manufactured and warranty provided by TP-Link

SPECIFICATIONS

Model	EAP772-Outdoor
HARDWARE FEATURES	Interface 1× 2.5G Ethernet (RJ-45) Port (Support 802.3at PoE) Button Reset Power Supply • 802.3at PoE Power Consumption 23W (for PoE) Dimensions ( W x D x H ) 9.1× 8.2 × 2.8 in (230 × 207.5 × 69.7 mm) Antenna • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 6 dBi • 6 GHz: 2× 6 dBi GNSS L1 (1575.42 MHz) receiver, supporting GPS, Galileo, GLONASS, and BeiDou signals Receive sensitivity: -164dBm (tracking) GPS antennas: Integrated 3dBi omnidirectional antennas Bluetooth BLE 5.2 Weatherproof Enclosure IP68 Mounting Pole/Wall Mounting (Kits included)
WIRELESS FEATURES	Coverage • 2.4 GHz: 200m* • 5 GHz: 300m* • 6 GHz: 250m* Concurrent Clients 380+** Wireless Standards IEEE 802.11be/ax/ac/n/g/b/a Frequency 2.4 GHz, 5 GHz, 6 GHz Signal Rate 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz)† Transmit Power • CE: Indoor Mode: < 20 dBm (2.4 GHz, EIRP);, < 23 dBm (5 GHz, band 1 & band 2, ElRP), < 28 dBm (5 GHz, band 3, EIRP); <23dBm (6 GHz, EIRP) Outdoor Mode: < 20 dBm (2.4 GHz, EIRP); < 28 dBm (5 GHz, band 3, EIRP) • FCC: Indoor Mode: < 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 25 dBm (6 GHz) Outdoor Mode:< 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 25 dBm (6 GHz) Wireless Functions • 4k-QAM • OFDMA • Multiple SSIDs: 24 (8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • MU-MIMO • MLO • 320MHz • Omada Mesh§ • Seamless Roaming(802.11k/v/r)§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client • Static IP/Dynamic lP Wireless Security • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
MANAGEMENT	Omada App Yes Centralized Management Yes, through • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller Cloud Access Yes, through • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller Email Alerts Yes Management MAC Access Control Yes SNMP v1, v2c System Logging Local/Remote Syslog Yes SSH Yes Web-based Management Yes L3 Management Yes Multi-site Management Yes Management VLAN Yes Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
OTHERS	Certification CE, FCC, RoHS System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux Environment • Operating Temperature: -30–70 ℃ (-22–158 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*

TP-Link EAP772-Outdoor Access Point (574Mbps Wireless AX, 6 Internal Antennas, 2.4 GHz and 5 GHz)

Specifications
Reviews

USB Hub Spec
Networking Interfaces	1× 2.5G Ethernet (RJ-45) Port (Support 802.3at PoE)
Networking Specifications
Networking Antennas	6 Internal Omni
Networking Frequency	2.4 GHz and 5 GHz
Networking Operation mode	Routers
