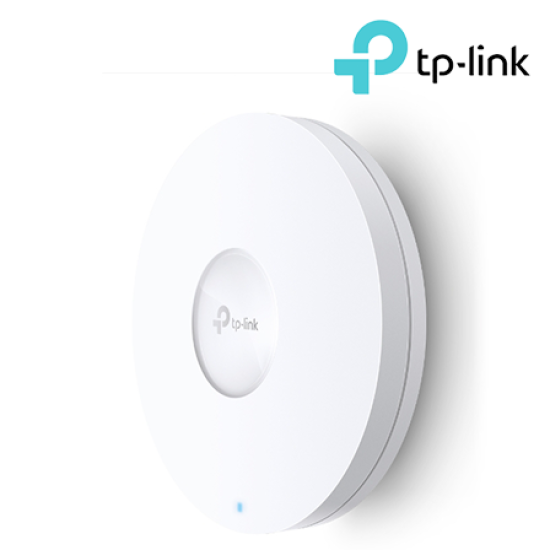

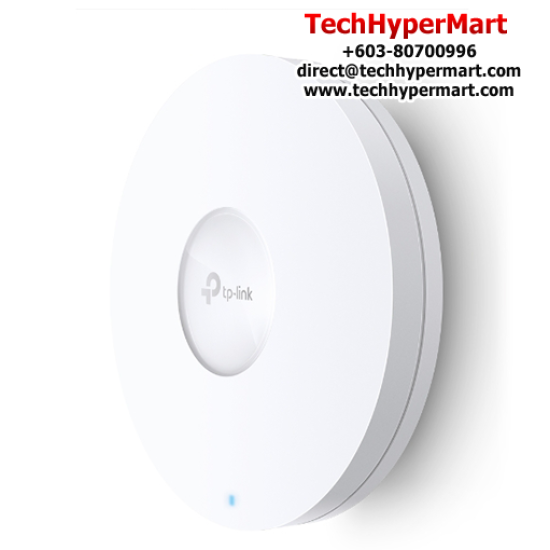

Name: TP-Link EAP660 HD Access Point (3600Mbps Wireless AX, Internal Omni, 2.4 GHz and 5 GHz)
Brand: TP-Link
SKU: EAP660 HD
Price: 1549.00 MYR
Availability: InStock

TP-Link EAP660 HD Access Point (3600Mbps Wireless AX, Internal Omni, 2.4 GHz and 5 GHz)

Description

PRODUCT DESCRIPTION

TP-Link EAP660 HD Access Point

3600Mbps Wireless AX | Internal Omni | 2.4 GHz and 5 GHz

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

Router

ADDITIONAL INFORMATION

View Official Website

Warranty
- 3 Years TP-Link Warranty
- Manufactured and warranty provided by TP-Link

SPECIFICATIONS

Model	EAP660 HD
Hardware Features
Interface	1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE) Button Reset
Power Supply	• 802.3at PoE • 12 V DC
Power Consumption	• EU: 18.5 W • US: 21.5 W
Antenna	Internal Omni • 2.4 GHz: 4× 5 dBi • 5 GHz: 4× 6 dBi
Dimensions ( W x D x H )	9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Mounting	Ceiling /Wall Mounting (Kits included)
Wireless Features
Frequency	2.4 GHz and 5 GHz
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Signal Rate	• 5 GHz: Up to 2402 Mbps • 2.4 GHz: Up to 1148 Mbps
Transmit Power	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, EIRP) • FCC: <26 dBm (2.4 GHz) <26 dBm (5 GHz)
Wireless Functions	• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Seamless Roaming • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
OTHERS
Certification	CE, FCC, RoHS
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*

TP-Link EAP660 HD Access Point (3600Mbps Wireless AX, Internal Omni, 2.4 GHz and 5 GHz)

Specifications
Reviews

USB Hub Spec
Networking Interfaces	1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
Networking Specifications
Networking Antennas	Internal Omni
Networking Frequency	2.4 GHz and 5 GHz
Networking Operation mode	Routers
