Name: TP-Link EAP653 UR Access Point (3000Mbps Wireless AX, 3 Internal Antennas, 2.4 GHz and 5 GHz)
Brand: TP-Link
SKU: EAP653 UR
Price: 899.00 MYR
Availability: InStock

TP-Link EAP653 UR Access Point (3000Mbps Wireless AX, 3 Internal Antennas, 2.4 GHz and 5 GHz)

Description

PRODUCT DESCRIPTION

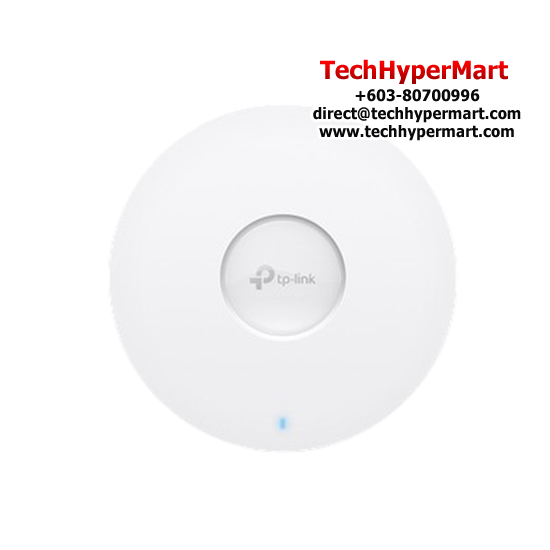

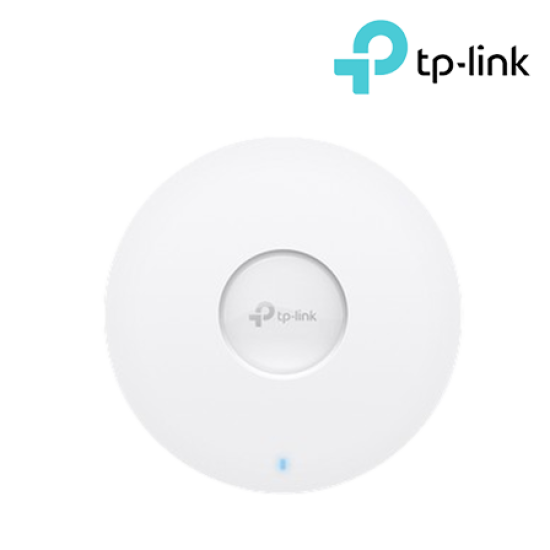

TP-Link EAP653 UR Access Point

3000Mbps Wireless AX | 3 Internal Antennas | 2.4 GHz and 5 GHz

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

Router

ADDITIONAL INFORMATION

View Official Website

Warranty
- 3 Years TP-Link Warranty
- Manufactured and warranty provided by TP-Link

SPECIFICATIONS

Model	EAP653 UR
HARDWARE FEATURES	Interface 1× Gigabit PoE+ Port Button Reset Power Supply • 802.3at PoE • 12V DC / 1.5 A (Power Adapter IS NOT included) • 48V Passive PoE Power Consumption • EU: 14.2 W • US: 15.5 W Dimensions ( W x D x H ) 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) Antenna Type Internal Omni • 2.4 GHz: 2× 5 dBi • 5 GHz: 3× 5 dBi Mounting • Ceiling /Wall Mounting (Kits included) • Junction Box Mounting
WIRELESS FEATURES	Coverage 185 ㎡ (2000 ft²)* Concurrent Clients 250+ Wireless Standards IEEE 802.11ax/ac/n/g/b/a Frequency 2.4 GHz and 5 GHz Signal Rate • 5 GHz: Up to 2402 Mbps† • 2.4 GHz: Up to 574 Mbps† Wireless Functions • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO(2G: 22 MU-MIMO DL/UL; 5G:22 MU-MIMO DL/UL) • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming(802.11k/v/r)§ • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client Wireless Security • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <29 dBm(5 GHz, Band3, EIRP) • FCC: <26 dBm (2.4 GHz) <27 dBm (5 GHz)
MANAGEMENT	Omada App Yes Centralized Management • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1, v2c, v3 System Logging Local/Remote Syslog Local/Remote Syslog SSH Yes Web-based Management HTTP/HTTPS L3 Management Yes Multi-site Management Yes Management VLAN Yes Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS	Certification CE, FCC, RoHS Package Contents • EAP653 UR • Ceiling/Wall Mounting Kit • Installation Guide Note: DC adapter is not included in the package, and is sold separately. System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*

TP-Link EAP653 UR Access Point (3000Mbps Wireless AX, 3 Internal Antennas, 2.4 GHz and 5 GHz)

Specifications
Reviews

USB Hub Spec
Networking Interfaces	1× Gigabit PoE+ Port
Networking Specifications
Networking Antennas	3 Internal Omni
Networking Frequency	2.4 GHz and 5 GHz
Networking Operation mode	Routers
