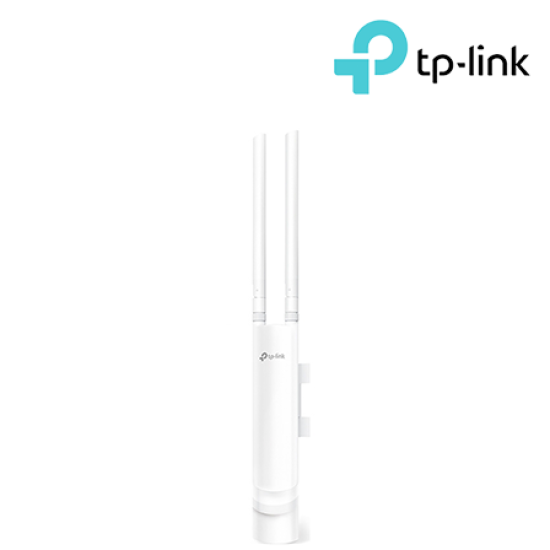

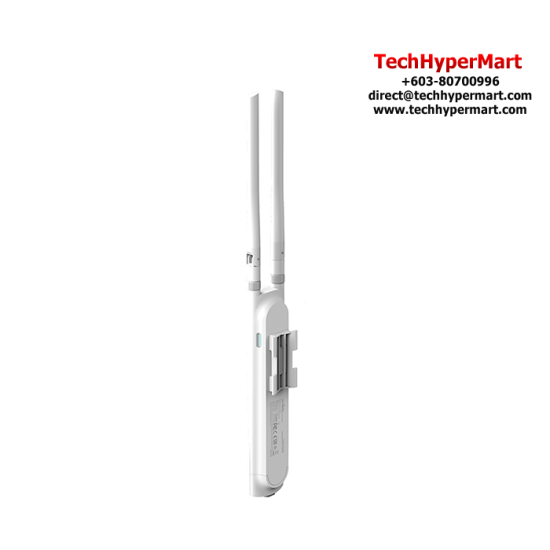

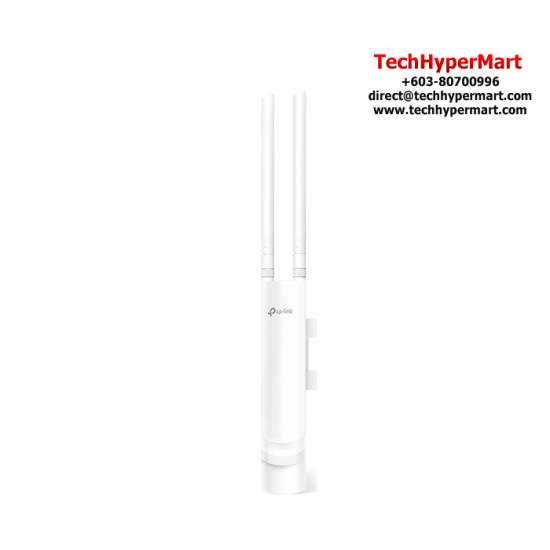

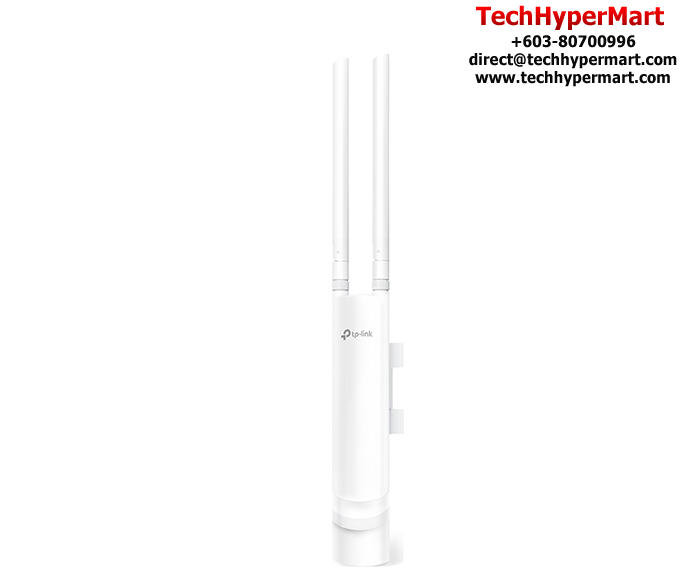

Name: TP-Link EAP225-Outdoor Wireless Access Point (Wireless AC1200, 867Mbps, Gigabit Ethernet RJ-45)
Brand: TP-Link
SKU: EAP225-Outdoor
Price: 569.00 MYR
Availability: InStock

TP-Link EAP225-Outdoor Wireless Access Point (Wireless AC1200, 867Mbps, Gigabit Ethernet RJ-45)

Description

PRODUCT DESCRIPTION

TP-Link EAP225-Outdoor Wireless Access Point

Wireless AC1200 | 867Mbps at 5GHz + 300Mbps at 2.4GHz | Gigabit Ethernet (RJ-45)Port*1 | Passive PoE

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

Access Point

ADDITIONAL INFORMATION

View Official Website

Warranty
- 3 Years TP-Link Warranty
- Manufactured and warranty provided by TP-Link

SPECIFICATIONS

Model	EAP225-Outdoor
Hardware Features
Interface	Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE)
Button	Reset
Power Supply	802.3af/A PoE 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption	10.5W
Dimensions ( W x D x H )	215.74537.7mm (without antenna & mounting kit) 403.890.755.2mm (with antenna & mounting kit)
Antenna	2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi
Weatherproof Enclosure	IP65
Mounting	Pole/Wall Mounting (Kits included)
Hardware Watch Dog	Yes
Wireless Features
Wireless Standards	IEEE 802.11a/b/g/n/ac
Frequency	2.4GHz, 5GHz
Signal Rate	802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3) 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 5.5, 11Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions	Multiple SSIDs（Up to 16 SSIDs, 8 for each band） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) MU-MIMO Airtime Fairness Beamforming Band Steering Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support
Transmission Power	CE:<20dBm(2.4GHz,EIRP),<25dBm(5GHz,EIRP) FCC:<23dBm(2.4GHz),<22dBm(5GHz)
Management
Omada Controller Software	Yes
Email Alerts	Yes
Management MAC Access Control	Yes
System Logging Local/Remote Syslog	Yes
Web-based Management	Yes
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Others
Certification	CE、FCC、RoHS
Environment	Operating Temperature: -30℃~70℃ (-22℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*

TP-Link EAP225-Outdoor Wireless Access Point (Wireless AC1200, 867Mbps, Gigabit Ethernet RJ-45)

Specifications
Reviews

Networking Specifications
Networking Interfaces	Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE)
Networking Antennas	2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi
Networking Frequency	2.4GHz, 5GHz 867Mbps at 5GHz + 300Mbps at 2.4GHz
Networking Operation mode	Access Point
