Name: TP-Link CPE610 Outdoor Antenna (5GHz 300Mbps, Antenna 23dBi, 1 10/100Mbps)
Brand: TP-Link
SKU: CPE610
Price: 429.00 MYR
Availability: InStock

TP-Link CPE610 Outdoor Antenna (5GHz 300Mbps, Antenna 23dBi, 1 10/100Mbps)

Description

PRODUCT DESCRIPTION

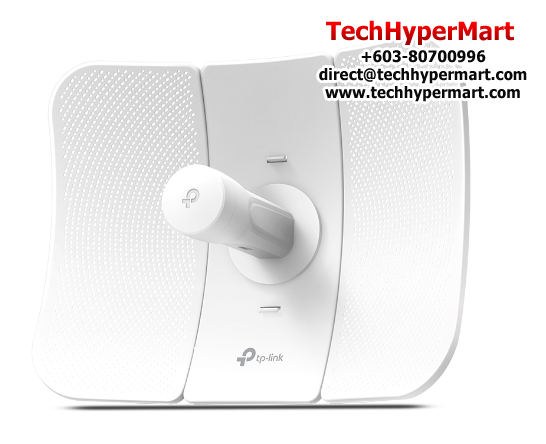

TP-Link CPE610 Outdoor Antenna

5GHz 300Mbps | Antenna 23dBi | 1 10/100Mbps

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

Outdoor Antenna

ADDITIONAL INFORMATION

View Official Website

Warranty
- 3 Years TP-Link Warranty
- Manufactured and warranty provided by TP-Link

SPECIFICATIONS

Model	CPE610
HARDWARE FEATURES
Processor	Qualcomm 560MHz CPU, MIPS 74Kc
Memory	64MB DDR2 RAM,8MB Flash
Interface	1 10/100Mbps Shielded Ethernet Port (LAN/POE)
Power Supply	Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27VDC
Dimensions ( W x D x H )	366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) Dimensions 360 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) (No mount)
Antenna Type	23dBi
Antenna Beamwidth	9°(Azimuth), 7°(Elevation)
Protection	15KV ESD Protection 6KV Lightning Protection
Enclosure	Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design
WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/n
Proprietary Protocol	TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds	Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic)
Frequency	5.15~5.85GHz
Transmission Power	Max. 25dBm (Adjustable power by 1dBm)
SOFTWARE FEATURES
Network Configuration	WAN: Static/Dynamic/PPPoE/L2TP/PPTP LAN: Static/Dynamic/DHCP Forwarding: ALG/UPnP/Virtual Server/Port Trigger Security: SPI Firewall/ Ping Forbidden/DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding
Wireless Configurations	Pharos MAXtream TDMA Technology Selectable Channel Width: 5/10/20/40MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection(DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging(AP Mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management	Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server
System Tools	Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute
System-level Optimizations	Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog
POE ADAPTER FEATURES
Dimensions(W x D x H)	85.8×43.9×29.7 mm
Interfaces	1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data)
Output	24VDC, 0.5A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency	>84.29%
Input	100-240VAC, 50/60Hz
Power Status LEDs	Green
Certifications	CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Button	Remote Reset Button
OTHERS
Certification	CE, FCC, IC, RoHS, IP65
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment	Operating Temperature: -40℃~70℃ (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*
