Name: TP-Link Archer MR505 4G Router (Wireless AC1200, 300Mbps at 2.4GHz, 2 × 10/100/1000 Mbps LAN Ports)
Brand: TP-Link
SKU: Archer MR505
Price: 309.00 MYR
Availability: InStock

TP-Link Archer MR505 4G Router (Wireless AC1200, 300Mbps at 2.4GHz, 2 × 10/100/1000 Mbps LAN Ports)

Description

PRODUCT DESCRIPTION

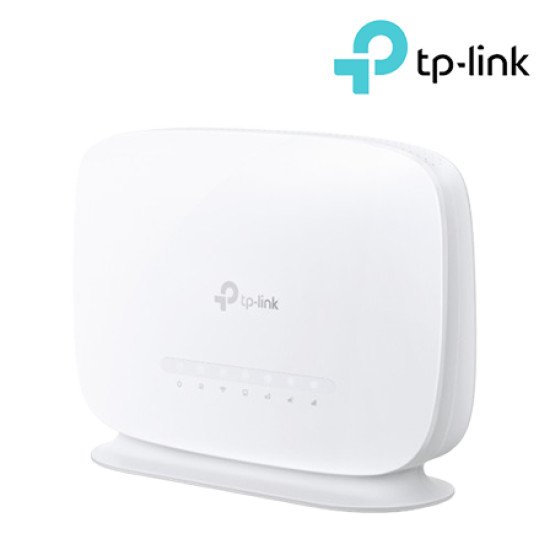

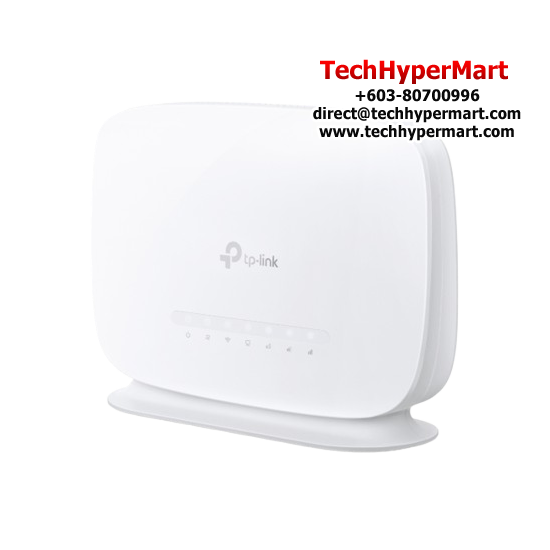

TP-Link Archer MR505 4G Router

Wireless AC1200 | 300Mbps at 2.4GHz | 2 × 10/100/1000 Mbps LAN Ports

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

Router

ADDITIONAL INFORMATION

View Official Website

Warranty
- 3 Years TP-Link Warranty
- Manufactured and warranty provided by TP-Link

SPECIFICATIONS

Model	Archer MR505
Hardware Features

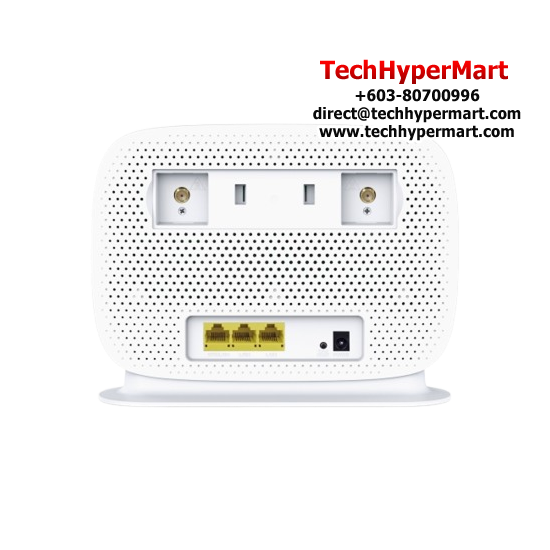

Interface	1 × 10/100/1000 Mbps LAN/WAN Port 2 × 10/100/1000 Mbps LAN Ports 1 × Nano SIM Card Slot 2 × External SMA-F Antenna Interface
Power Supply	12V/1.5A
Antenna	2 Detachable External LTE Antennas
Dimensions ( W x D x H )	212 × 157.5 × 57 mm (8.35 × 6.20 × 2.24 in)
Wireless Features
Wireless Standards	IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency	2.4 GHz and 5 GHz
Signal Rate	300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
Reception Sensitivity	5 GHz: 11a 54M: -77 dBm 11ac HT20: -73 dBm 11ac HT40: -68 dBm 11ac HT80 : -64 dBm 11n HT20: -77 dBm 11n HT40: -73 dBm 2.4 GHz: 11g 54M: -74 dBm 11n HT20: -72 dBm 11n HT40: -69 dBm
Transmit Power	< 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
Wireless Functions	Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
Wireless Security	64/128-bit WEP, WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Network Type	Compatible with the majority of mobile operators and supports 4G/3G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) DC-HSPA+/HSPA/UMTS: B1/B3/B5/B8 (2100/850/900 MHz)
Software Features
Quality of Service	Prioritizes network traffic by device
Security	DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control, Service Filtering
WAN Type	Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management	TP-Link Cloud, Local Management, Remote Management
DHCP	Server, DHCP Client List, Address Reservation
Port Forwarding	ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	TP-Link, DynDns, NO-IP
VPN Pass-Through	VPN Server: PPTP VPN, OpenVPN
Parental Controls	URL Filtering, Time Controls
Protocols	IPv4, IPv6
Guest Network	2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1
Others
Certification	CE, RoHS
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*

TP-Link Archer MR505 4G Router (Wireless AC1200, 300Mbps at 2.4GHz, 2 × 10/100/1000 Mbps LAN Ports)

Specifications
Reviews

Networking Specifications
Networking Interfaces	1 × 10/100/1000 Mbps LAN/WAN Port 2 × 10/100/1000 Mbps LAN Ports 1 × Nano SIM Card Slot 2 × External SMA-F Antenna Interface
Networking Antennas	2 Detachable External LTE Antennas
Networking Frequency	2.4 GHz and 5 GHz 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
Networking Operation mode	3G/4G Router, Wireless Router
