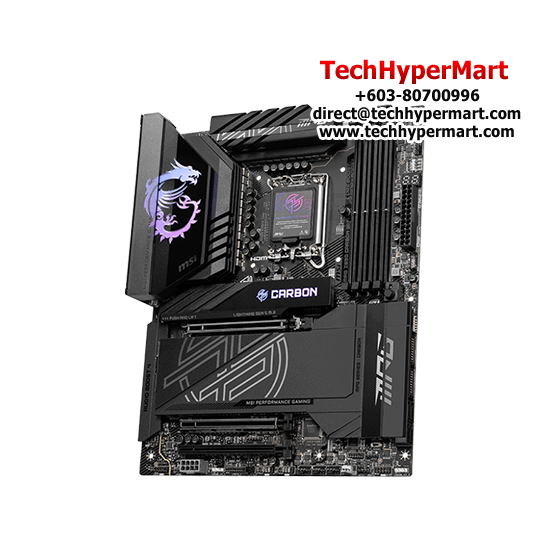

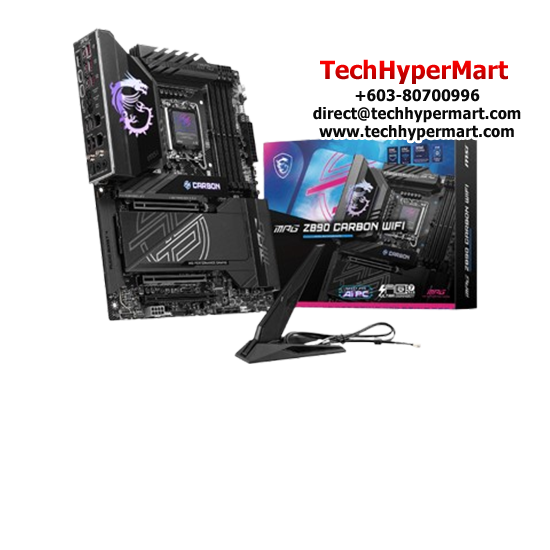

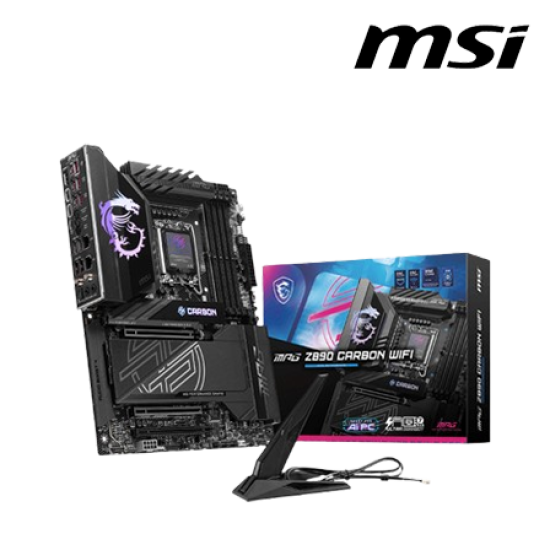

Name: MSI MPG-Z890-CARBON-WIFI Motherboard (ATX Form Factor, Intel Z890 Chipset, Socket LGA1851, 4 x DDR5 up to 256GB)
Brand: MSI
SKU: MPG-Z890-CARBON-WIFI
Price: 2559.00 MYR
Availability: InStock

MSI MPG-Z890-CARBON-WIFI Motherboard (ATX Form Factor, Intel Z890 Chipset, Socket LGA1851, 4 x DDR5 up to 256GB)

Description

PRODUCT DESCRIPTION

MSI MPG-Z890-CARBON-WIFI Motherboard

ATX Form Factor | Intel Z890 Chipset | Socket LGA1851 | 4 x DDR5 up to 256GB

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
* All Prices Exclude delivery/installation/activation fees. *

PACKAGE CONTENTS

Motherboard

ADDITIONAL INFORMATION

View Official Website

Warranty
- 1 Year MSI Warranty
- Manufactured and warranty provided by MSI

PRODUCT SPECIFICATIONS

Model	MPG-Z890-CARBON-WIFI
Chipset	INTEL Z890
CPU	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Slot	3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) • PCI_E1 supports BIOS adjustment to x8+x4+x4* • PCI_E2 supports BIOS adjustment to x4+x4*
Onboard Graphics	1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort ThundeboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Audio	Realtek® ALC1220P Codec 7.1-Channel USB High Defination Audio Supports S/PDIF output
Storage	5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	•Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices •Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices Onboard Thunderbolt 2x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 10x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN	1x Intel® Killer™ E5000B 5G LAN 1x Intel® I226V 2.5G LAN
WIRELESS LAN & BLUETOOTH	Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Internal connectors	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
LED FEATURE	4x EZ Debug LED 1x EZ Digit Debug LED
Back panel ports	USB 10Gbps Type-A Flash BIOS Button Clear CMOS Button Smart Button 2.5G LAN 5G LAN Audio Connectors HDMI™ Thunderbolt 4 USB 10Gbps Type-C USB 10Gbps Type-A Wi-Fi / Bluetooth Optical S/PDIF Out
Operating System	Support for Windows® 11 64-bit
PCB Info	ATX 243.84mmx304.8mm
* Prices, Features, Package Content and Specifications are subject to change without prior notification. *

MSI MPG-Z890-CARBON-WIFI Motherboard (ATX Form Factor, Intel Z890 Chipset, Socket LGA1851, 4 x DDR5 up to 256GB)

Specifications
Reviews

Motherboard Specifications
Motherboard Chipset	Intel Z890
Motherboard CPU Socket	Socket LGA1851
Motherboard Processor Interface	Intel
Motherboard Processors Supported	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Motherboard Memory
Motherboard Max Memory	256 GB
Motherboard Memory Channel	Dual
Motherboard RAM DIMM	4
Motherboard RAM Type	DDR5
Motherboard Dimensions
Motherboard Dimension	243.84mmx304.8mm
Motherboard Form Factor	ATX
