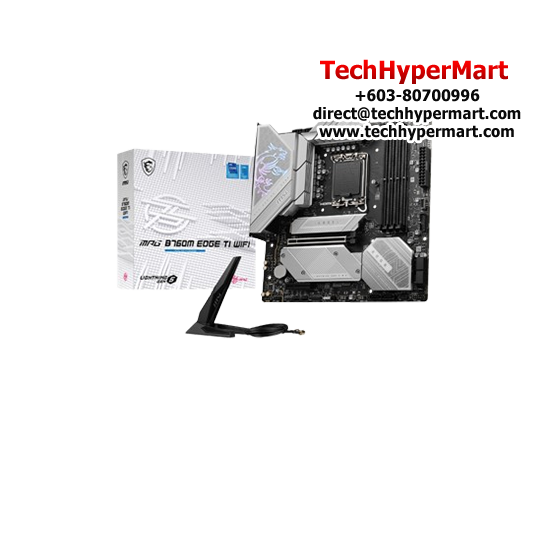

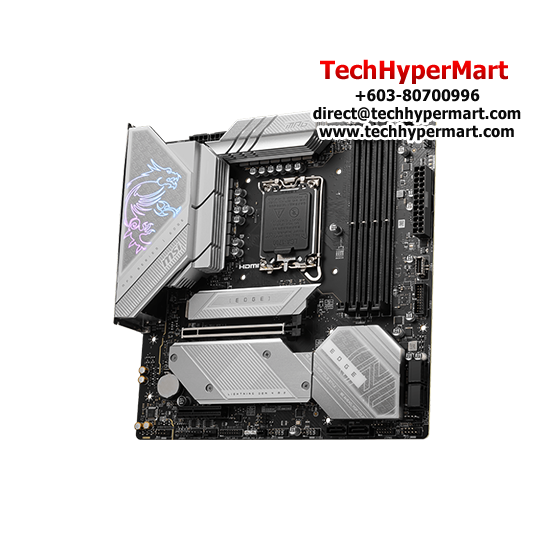

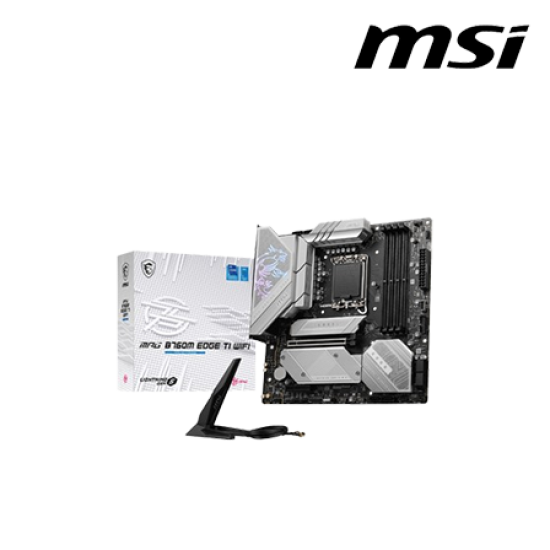

Name: MSI MPG B760M EDGE TI WIFI Motherboard (mATX Form Factor, Intel B760 Chipset, Socket LGA1700, 4 x DDR5 up to 256GB)
Brand: MSI
SKU: MPG B760M EDGE TI WIFI
Price: 1249.00 MYR
Availability: InStock

MSI MPG B760M EDGE TI WIFI Motherboard (mATX Form Factor, Intel B760 Chipset, Socket LGA1700, 4 x DDR5 up to 256GB)

Description

PRODUCT DESCRIPTION

MSI MPG B760M EDGE TI WIFI Motherboard

mATX Form Factor | Intel B760 Chipset | Socket LGA1700 | 4 x DDR5 up to 256GB

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
* All Prices Exclude delivery/installation/activation fees. *

PACKAGE CONTENTS

Motherboard

ADDITIONAL INFORMATION

View Official Website

Warranty
- 1 Year MSI Warranty
- Manufactured and warranty provided by MSI

PRODUCT SPECIFICATIONS

Model	MPG B760M EDGE TI WIFI
Chipset	INTEL B760
CPU SUPPORT	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA1700
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile
Onboard Graphics	1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	1x PCI-E x16 slot Supports x16/x4 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
Multi-GPU	-
Storage	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices 6x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
LAN	Realtek® 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio	Realtek® ALC897 Codec 7.1-Channel High Performance Audio Supports S/PDIF output
Internal I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	USB 2.0 DisplayPort 1.4 USB 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI™ 2.1 Port Clear CMOS Button USB 20Gbps Type-C Optical S/PDIF OUT
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension	mATX 243.84mmx243.84mm
* Prices, Features, Package Content and Specifications are subject to change without prior notification. *

MSI MPG B760M EDGE TI WIFI Motherboard (mATX Form Factor, Intel B760 Chipset, Socket LGA1700, 4 x DDR5 up to 256GB)

Specifications
Reviews

Motherboard Specifications
Motherboard Chipset	INTEL B760
Motherboard CPU Socket	LGA 1700
Motherboard Processor Interface	Intel
Motherboard Processors Supported	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Motherboard Memory
Motherboard Max Memory	256 GB
Motherboard Memory Channel	Dual
Motherboard RAM DIMM	4
Motherboard RAM Type	DDR5
Motherboard Dimensions
Motherboard Dimension	-
Motherboard Form Factor	m-ATX
