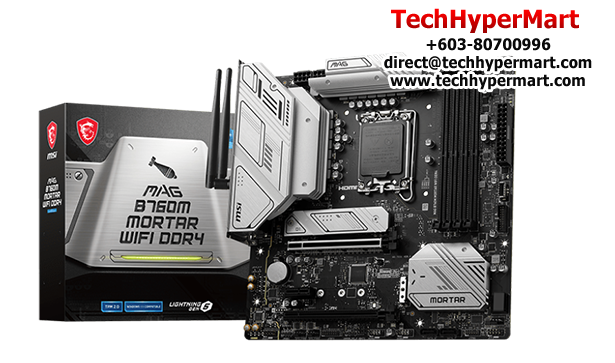

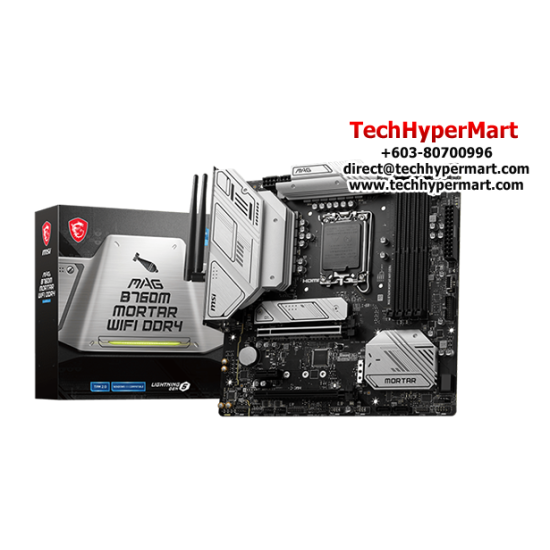

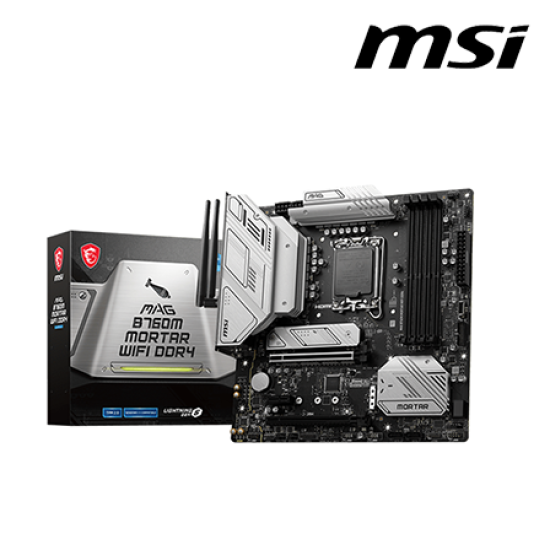

Name: MSI MAG B760M MORTAR WIFI DDR4 Motherboard (M-ATX Form Factor, Intel B760 Chipset, Socket LGA1700, 4 x DDR4 up to 128GB)
Brand: MSI
SKU: MAG B760M MORTAR WIFI DDR4
Price: 1049.00 MYR
Availability: InStock

MSI MAG B760M MORTAR WIFI DDR4 Motherboard (M-ATX Form Factor, Intel B760 Chipset, Socket LGA1700, 4 x DDR4 up to 128GB)

Description

PRODUCT DESCRIPTION

MSI MAG B760M MORTAR WIFI DDR4 Motherboard

M-ATX Form Factor | Intel B760 Chipset | Socket LGA1700 | 4 x DDR4 up to 128GB

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
* All Prices Exclude delivery/installation/activation fees. *

PACKAGE CONTENTS

Motherboard

ADDITIONAL INFORMATION

View Official Website

Warranty
- 1 Year MSI Warranty
- Manufactured and warranty provided by MSI

PRODUCT SPECIFICATIONS

Model	MAG B760M MORTAR WIFI DDR4
Chipset	INTEL B760
CPU SUPPORT	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
Memory	4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slots	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
Audio	Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio
LAN	Realtek® 2.5Gbps LAN WIRELESS / BLUETOOTH Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11."
Internal connectors	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
LED Feature	4x EZ Debug LED
Back panel ports	USB 2.0 Display Port USB 3.2 Gen 2 10Gbps 2.5G LAN Audio Connectors HDMI™ USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps Wi-Fi / Bluetooth Optical S/PDIF OUT
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
Dimensions	mATX 243.84mmx243.84mm
* Prices, Features, Package Content and Specifications are subject to change without prior notification. *

MSI MAG B760M MORTAR WIFI DDR4 Motherboard (M-ATX Form Factor, Intel B760 Chipset, Socket LGA1700, 4 x DDR4 up to 128GB)

Specifications
Reviews

Motherboard Specifications
Motherboard Chipset	INTEL B760
Motherboard CPU Socket	LGA1700
Motherboard Processor Interface	Intel
Motherboard Processors Supported	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
Motherboard Memory
Motherboard Max Memory	128 GB
Motherboard Memory Channel	Dual
Motherboard RAM DIMM	4
Motherboard RAM Type	DDR4
Motherboard Dimensions
Motherboard Dimension	243.84mmx243.84mm
Motherboard Form Factor	M-ATX
