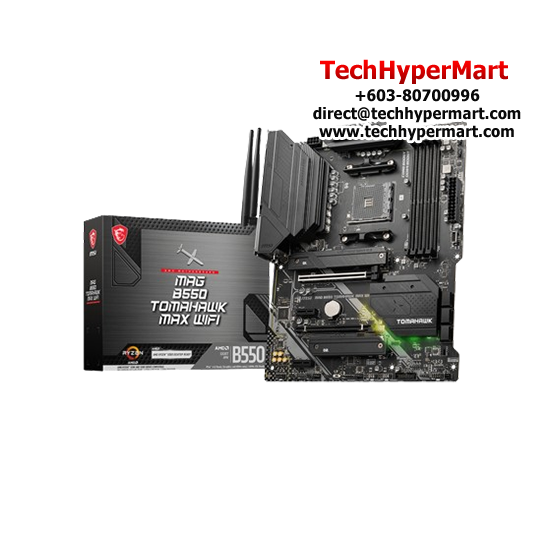

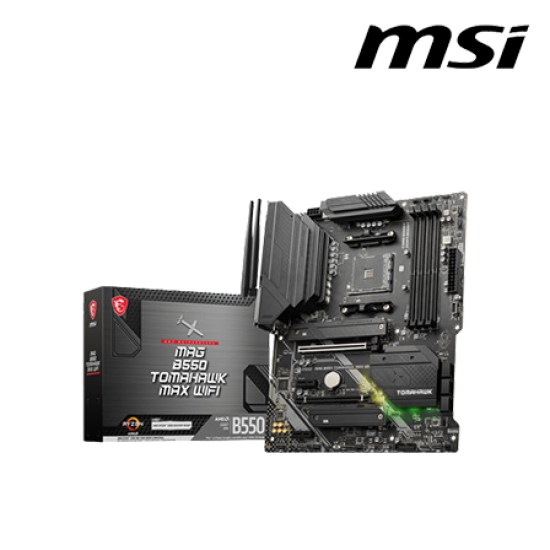

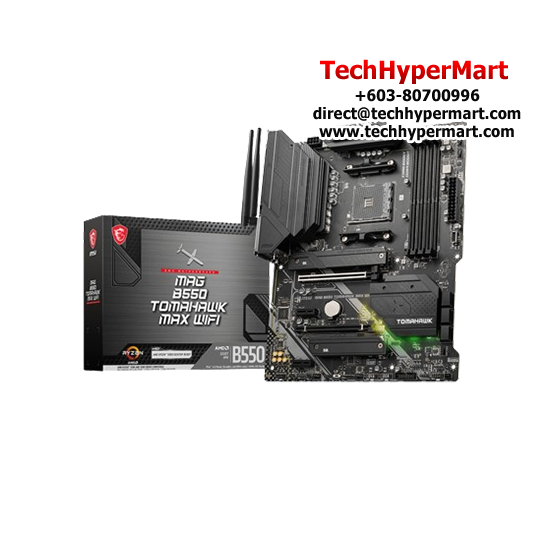

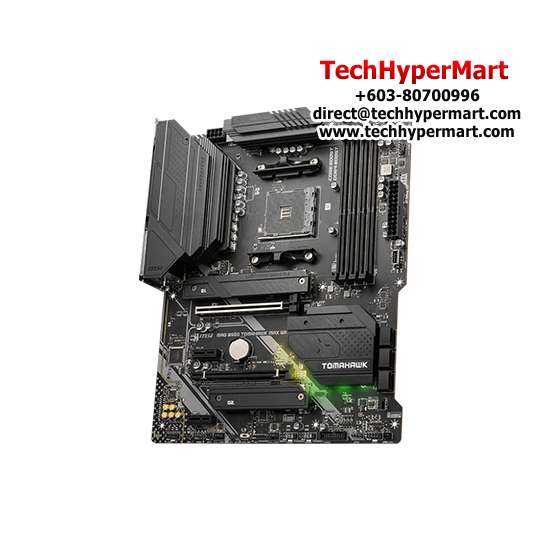

Name: MSI MAG B550 TOMAHAWK MAX WIFI Motherboard (ATX Form Factor, AMD B550 Chipset, Socket AM4, 4 x DDR5 up to 128GB)
Brand: MSI
SKU: MAG B550 TOMAHAWK MAX WIFI
Price: 899.00 MYR
Availability: InStock

MSI MAG B550 TOMAHAWK MAX WIFI Motherboard (ATX Form Factor, AMD B550 Chipset, Socket AM4, 4 x DDR5 up to 128GB)

Description

PRODUCT DESCRIPTION

MSI MAG B550 TOMAHAWK MAX WIFI Motherboard

ATX Form Factor | AMD B550 Chipset | Socket AM4 | 4 x DDR4 up to 128GB

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
* All Prices Exclude delivery/installation/activation fees. *

PACKAGE CONTENTS

Motherboard

ADDITIONAL INFORMATION

View Official Website

Warranty
- 1 Year MSI Warranty
- Manufactured and warranty provided by MSI

PRODUCT SPECIFICATIONS

Model	MAG B550 TOMAHAWK MAX WIFI
Chipset	AMD B550 Chipset
Memory	4 x DDR4 memory slots, support up to 128GB 1 Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE 1DPC 1R max speed 5100 MHZ 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory
Slot	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2 2x PCIe 3.0 x1 slots
Multi-GPU	Supports AMD CrossFire™ Technology
Onboard Graphics	1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2 Support HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1 Maximum shared memory of 16 GB
Storage	AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek® RTL8125B 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH	AMD® Wi-Fi 6E1 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.22
Internal connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x TPM module connector 1x Clear CMOS jumper
Back panel ports	Keyboard / Mouse DisplayPort 1.4 2.5G LAN Port USB 3.2 Gen 2 10Gbps Type-A Wi-Fi / Bluetooth Antenna Audio Connectors Flash BIOS Button USB 2.0 Port HDMI™ 2.1 Port USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-C Optical S/PDIF OUT
Dimensions	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting	9 mounting holes
Operating System	Support for Windows® 11 64-bit, Windows® 10 64-bit
* Prices, Features, Package Content and Specifications are subject to change without prior notification. *

MSI MAG B550 TOMAHAWK MAX WIFI Motherboard (ATX Form Factor, AMD B550 Chipset, Socket AM4, 4 x DDR5 up to 128GB)

Specifications
Reviews

Motherboard Specifications
Motherboard Chipset	AMD B550
Motherboard CPU Socket	Socket AM4
Motherboard Processor Interface	AMD
Motherboard Processors Supported	4 x DDR4 memory slots, support up to 128GB 1 Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE 1DPC 1R max speed 5100 MHZ 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory
Motherboard Memory
Motherboard Max Memory	128 GB
Motherboard Memory Channel	Dual
Motherboard RAM DIMM	4
Motherboard RAM Type	DDR4
Motherboard Dimensions
Motherboard Dimension	-
Motherboard Form Factor	ATX
