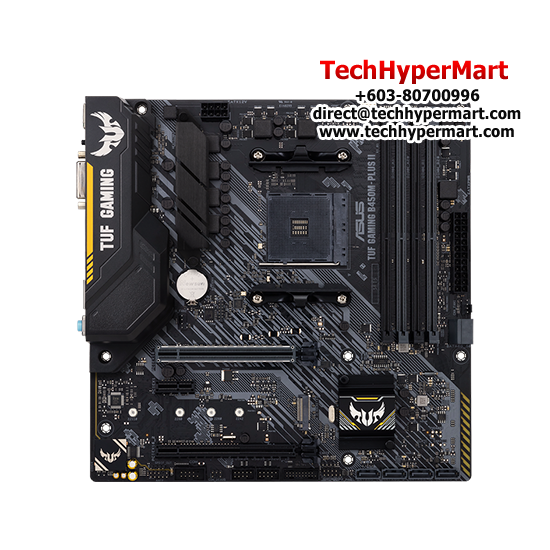

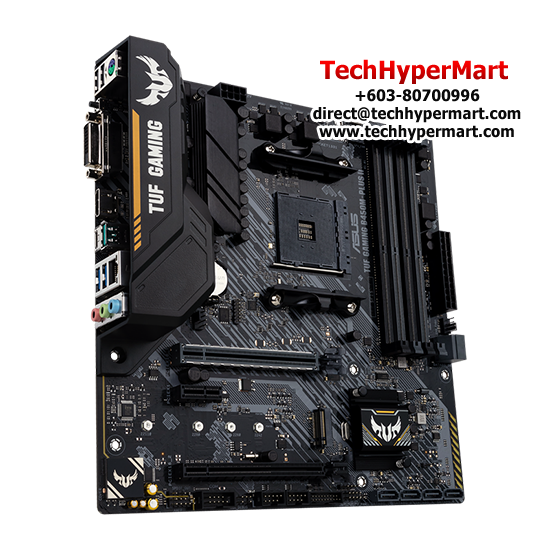

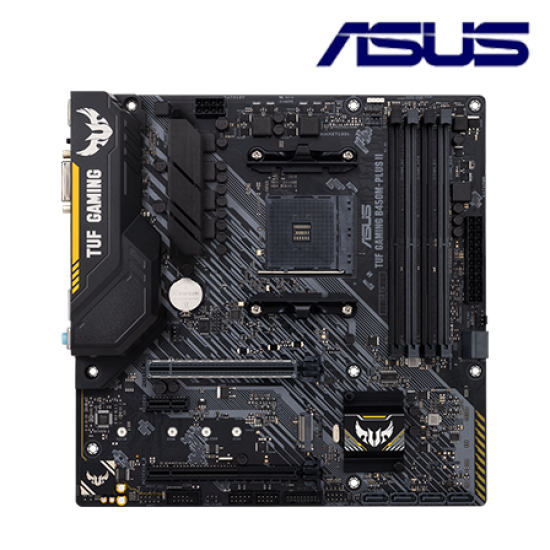

Name: Asus TUF GAMING B450M-PLUS II Motherboard (mATX, AMD B450 Chipset, Socket AM4, DDR4 memory compatibility)
Brand: Asus
SKU: TUF GAMING B450M-PLUS II
Price: 459.00 MYR
Availability: InStock

Asus TUF GAMING B450M-PLUS II Motherboard (mATX, AMD B450 Chipset, Socket AM4, DDR4 memory compatibility)

Description

PRODUCT DESCRIPTION

Asus TUF GAMING B450M-PLUS II Motherboard

mATX | AMD B450 Chipset | Socket AM4 | DDR4 memory compatibility

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
* All Prices Exclude delivery/installation/activation fees. *

PACKAGE CONTENTS

Motherboard

ADDITIONAL INFORMATION

View Official Website

Warranty
- 1 years Asus Warranty
- Manufactured and warranty provided by Asus

PRODUCT SPECIFICATIONS

Model	TUF GAMING B450M-PLUS II
CPU	* Refer to www.asus.com for CPU support list.,AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
Chipset	AMD B450
Memory	* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3533(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory ,3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU., The maximum memory frequency supported varies by processor.
Graphics	1 x HDMI™ port,*Graphics specifications may vary between CPU types.,Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Multi-GPU Support	Supports AMD 2-Way CrossFireX Technology
Expansion Slots	Athlon™ with Radeon™ Vega Graphics Processors,3rd/2nd/1st Gen AMD Ryzen™ Processors,1 x PCIe 2.0 x16 (x4 mode),AMD B450 chipset,1 x PCIe 3.0/2.0 x16 (x16 mode),1 x PCIe 3.0/2.0 x16 (x8 mode),1 x PCIe 3.0/2.0 x16 (max at x4 mode),1 x PCIe 2.0 x1
Storage	1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support1,Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports,Athlon™ with Radeon™ Vega Graphics Processors : ,3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors : ,3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : ,1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)1,2 x SATA 6Gb/s port(s),,AMD B450 chipset : ,Support Raid 0, 1, 10,4 x SATA 6Gb/s port(s),
Ethernet	Realtek RTL8111H 1Gb Ethernet,TUF LANGuard
USB	3 x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C),1 x USB 3.2 Gen 2 port(s)(1 x Type-A),4 x USB 2.0 port(s)(4 x Type-A),Front USB Port ( Total 6 ),Rear USB Port ( Total 6 ),2 x USB 3.2 Gen 1 port(s)(2 x Type-A),2 x USB 2.0 port(s)(2 x Type-A)
Audio	Realtek ALC887/8977.1 Surround Sound High Definition Audio CODEC,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- Audio Shielding,- Dedicated audio PCB layers,- Audio Cover,- Premium Japanese audio capacitors,Audio Feature :,- Exclusive DTS Custom for GAMING Headsets.
Back I/O Ports	1 x USB 3.2 Gen 1 (black) Type-C,1 x USB 3.2 Gen 2 (teal blue)Type-A,,1 x BIOS FlashBack™ Button(s),2 x USB 3.2 Gen 1 (blue) Type-A,1 x PS/2 keyboard/mouse combo port(s),1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s),1 x DVI-D
Internal I/O Ports	1 x COM port header,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x CPU Fan connector(s),2 x Chassis Fan connector(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x SPI TPM header,6 x SATA 6Gb/s connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin EATX 12V Power connectors,1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s),1 x System panel connector,1 x COM port header,1 x Speaker connector,1 x Aura RGB Strip Header
Special Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - AI Noise-Canceling Microphone AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update - PC Cleaner TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Software Features	ASUS TUF PROTECTION - ASUS DIGI+ VRM - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED AURA Sync - AURA RGB header
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PXE
Operating System	Windows® 7 64-bit *2,Windows® 10 64-bit
Form Factor	mATX Form Factor,9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Prices, Features, Package Content and Specifications are subject to change without prior notification.

Asus TUF GAMING B450M-PLUS II Motherboard (mATX, AMD B450 Chipset, Socket AM4, DDR4 memory compatibility)

Specifications
Reviews

Motherboard Specifications
Motherboard Chipset	AMD B450 Chipset
Motherboard CPU Socket	AM4
Motherboard Processor Interface	AMD
Motherboard Processors Supported	AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors , Refer to www.asus.com for CPU support list
Motherboard Memory
Motherboard Max Memory	128GB
Motherboard Memory Channel	-
Motherboard RAM DIMM	4
Motherboard RAM Type	DIMM
Motherboard Dimensions
Motherboard Dimension	24.4 cm x 24.4 cm
Motherboard Form Factor	mATX
