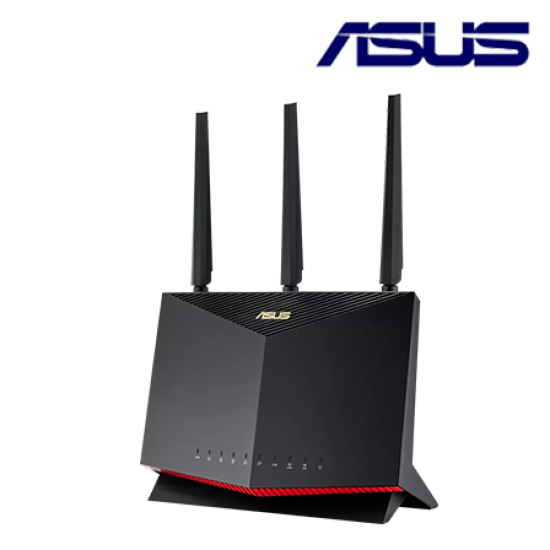

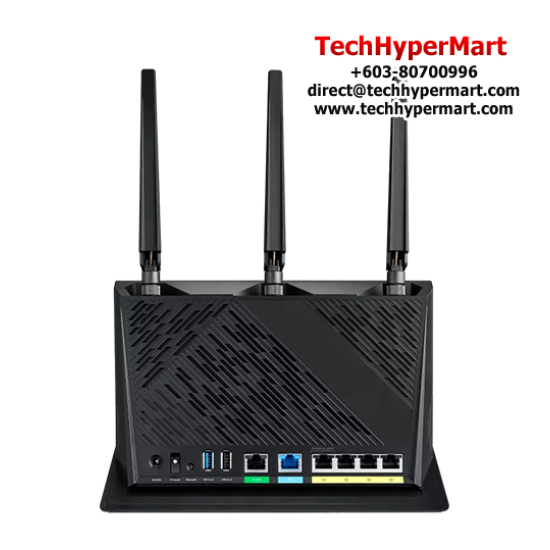

Name: Asus RT-AX86U Pro Router (5700Mbps Wireless AX, External antenna x 3, 2.4 GHz)
Brand: Asus
SKU: RT-AX86U Pro
Price: 1489.00 MYR
Availability: InStock

Asus RT-AX86U Pro Router (5700Mbps Wireless AX, External antenna x 3, 2.4 GHz)

Description

PRODUCT DESCRIPTION

Asus RT-AX86U Pro Router

5700Mbps Wireless AX | External antenna x 3 | 2.4 GHz

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

Router

ADDITIONAL INFORMATION

View Official Website

Warranty
- 3 Year Asus Warranty
- Manufactured and warranty provided by Asus

SPECIFICATIONS

Model	RT-AX86U Pro
Network Standard	IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6
Product Segment	AX5700 ultimate AX performance : 861+4804 Mbps
AX technology	Yes
Data Rate	802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 450 Mbps WiFi 4 (802.11n) (1024QAM) : up to 750 Mbps WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 861 Mbps WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
Antenna	External antenna x 3 Internal PCB antenna x 1
Transmit/Receive	2.4GHz 3x3 5GHz 4x4
Processor	2.0GHz quad-core processor
Memory	256 MB Flash and 1 GB RAM
Boosts speed	OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth
Operating Frequency	2.4 GHz / 5 GHz
Ports	RJ45 for 10/100/1000 BaseT for WAN x 1 RJ45 for 10/100/1000 BaseT for LAN x 4 Five (5) 10/100/1000 Mbps Gigabit Ethernet ports + one (1) 2.5G/1Gbps multi-Gig port (configurable) -- LAN: 4xGbE (2x port aggregation LAN) -- WAN: 1 GbE -- WAN/LAN: 2.5G/1Gbps multi-Gig port (configurable) -- Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently. USB 3.2 Gen1 x1, 2.0 x1
Button	WPS Button, Reset Button, Power Switch, LED on/off Button
LED Indicator	Power x 1 2.4GHz x 1 5GHz x 1 2.5G Port x 1 WAN x 1 LAN x 4 WPS x 1
Power Supply	19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current or 12 V with max.3 A current / 19.5 V with max. 2.31 A current
Weight	814.5 g
AiMesh	AiMesh Primary AiMesh router AiMesh node
Router APP	ASUS Router APP
Game	Game Boost / Acceleration
Alexa	Support Alexa skill
AiProtection	AiProtection Pro AiProtection Malicious site blocking Two-Way IPS Infected Device Prevention and Blocking
Parental Control	Parental Control Parental Control Customized Internet schedule Maximum Parental Control profile : 64 Maximum Parental Control content filter rule : 64
Traffic Control	Bandwidth Monitor Bandwidth limiter Maximum Bandwidth limiter rule : 32 Maximum Traditional QoS rule : 32 Real-time traffic monitor Wired Traffic Monitor Wireless Traffic Monitor Traffic analysis period : Daily, Weekly, Monthly Yes
Wireless	MU-MIMO Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support Maximum Guest Network rule : 2.4GHz x3, 5GHz x3 Guest Network Connection time limit Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS WiFi MAC address filter Maximum MAC filters : 64 RADIUS Client Yes
WAN	Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP WAN Aggregation 3G/4G LTE dongle Android tethering Maximum port forwarding rule : 64 Maximum port triggering rule : 32 Yes NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay Let's Encrypt Safe browsing DNS-over-TLS
LAN	DHCP Server IPTV LAN Link Aggregation Manually assign IP address Maximum manually assign IP address rule : 64
VPN	Instant Guard VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Server WireGuard VPN Fusion
USB application	File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 3G/4G LTE dongle HDD hibernation Safely Remove disk AiCloud Download master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder privileges
Administration	Operating mode : Wireless router mode,Access point mode,Media bridge mode,Repeater mode,AiMesh node mode Operating system : ASUSWRT Free OS upgrade Maximum Firewall keyword filter : 64 Maximum Firewall network service filter : 32 Maximum Firewall URL filter : 64 Yes New Device Connect Notification Login Captcha Connection Diagnosis Security Scan Auto Firmware Update
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*

Asus RT-AX86U Pro Router (5700Mbps Wireless AX, External antenna x 3, 2.4 GHz)

Specifications
Reviews

USB Hub Spec
Networking Interfaces	AX5700 ultimate AX performance
Networking Specifications
Networking Antennas	External antenna x 3
Networking Frequency	2.4 GHz
Networking Operation mode	Wireless router mode,Access point mode,Media bridge mode
