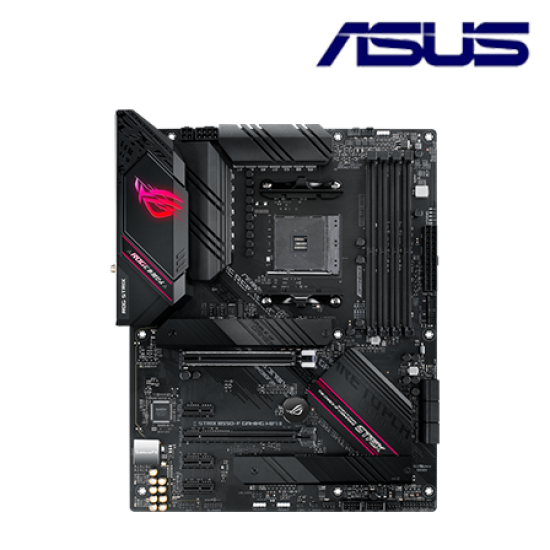

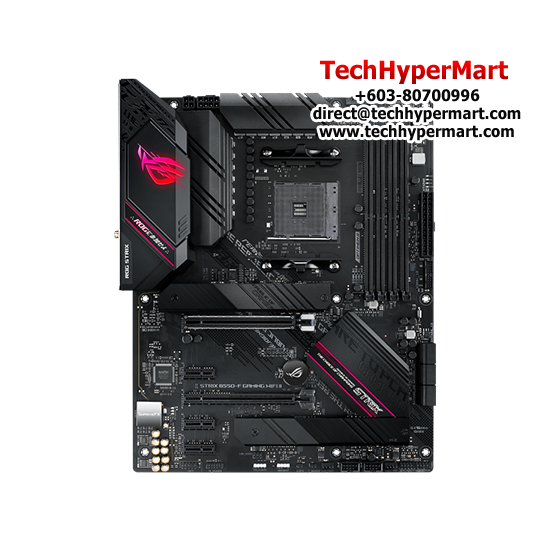

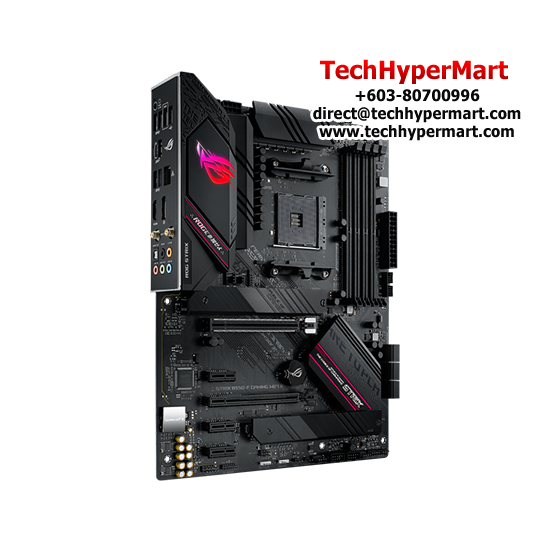

Name: Asus ROG STRIX B550-F GAMING WIFI II Motherboard (ATX, AMD B650 Chipset, Socket AM4, DDR5 memory compatibility)
Brand: Asus
SKU: ROG STRIX B550-F GAMING WIFI II
Price: 1219.00 MYR
Availability: InStock

Asus ROG STRIX B550-F GAMING WIFI II Motherboard (ATX, AMD B650 Chipset, Socket AM4, DDR5 memory compatibility)

Description

PRODUCT DESCRIPTION

Asus ROG STRIX B550-F GAMING WIFI II Motherboard

ATX | AMD B550 Chipset | Socket AM4 | DDR5 memory compatibility

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
* All Prices Exclude delivery/installation/activation fees. *

PACKAGE CONTENTS

Motherboard

ADDITIONAL INFORMATION

View Official Website

Warranty
- 1 years Asus Warranty
- Manufactured and warranty provided by Asus

PRODUCT SPECIFICATIONS

Model	ROG STRIX B550-F GAMING WIFI II
CPU	AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors *Refer to www.asus.com for the AMD® CPU support list.
Memory	Memory Channels: 4DDR4 (Dual channel) Max Memory Size: 128GB AMD Ryzen™ 5000 and 3000 Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4666(O.C.)/4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory * AMD Ryzen™ 5000 and 4000 G-Series Processors 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory * ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics	1 x DisplayPort 1.2 1 x HDMITM port *Graphics specifications may vary between CPU types.
Expansion Slots	AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors 1 x PCIe 4.0 x16 SafeSlot (supports x16 mode) AMD B550 chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 3 x PCIe 3.0 x1 slots *Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3
Ethernet	1 x Intel® 2.5Gb Ethernet 1 x Intel® I225-V 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
USB	Rear USB: Total 8 ports 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports Front USB: Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio	ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback* Audio Features - SupremeFX Shielding Technology - Dual OP Amplifiers - Premium audio capacitors - Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 8-Channel audio.
Back I/O Ports	2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports 1 x Wi-Fi Module 1 x DisplayPort 1 x HDMI® port 1 x Intel® I225-V 2.5G Ethernet 1 x Optical S/PDIF out 5 x Audio jacks 1 x BIOS FlashBackTM button
Internal I/O Ports	Fan and cooling related 1 x 4-Pin AIO_Pump header 1 x 4-Pin CPU fan header 1 x 4-Pin CPU_OPT fan header 3 x 4-Pin Chassis fan headers Power related 1 x 24-pin main power connector 1 x 8-pin +12V power connector 1 x 4-pin +12V power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front panel audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal sensor header 1 x Thunderbolt™ header
Special Features	ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - M.2 heatsink AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot
Software Features	ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Two-Way AI Noise Cancelation AI Suite 3: - Performance And Power Saving Utility EPU DIGI+ VRM Fan Xpert 4 TurboV EVO - EZ update WinRAR DAEMON Tools Norton Anti-virus software (Free Trial version) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Form Factor	ATX 30.5cm x 24.4cm
Prices, Features, Package Content and Specifications are subject to change without prior notification.

Asus ROG STRIX B550-F GAMING WIFI II Motherboard (ATX, AMD B650 Chipset, Socket AM4, DDR5 memory compatibility)

Specifications
Reviews

Motherboard Specifications
Motherboard Chipset	AMD B550 Chipset
Motherboard CPU Socket	AM4
Motherboard Processor Interface	AMD
Motherboard Processors Supported	AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors *Refer to www.asus.com for the AMD® CPU support list.
Motherboard Memory
Motherboard Max Memory	128GB
Motherboard Memory Channel	-
Motherboard RAM DIMM	4
Motherboard RAM Type	DIMM
Motherboard Dimensions
Motherboard Dimension	30.5cm x 24.4cm
Motherboard Form Factor	ATX
