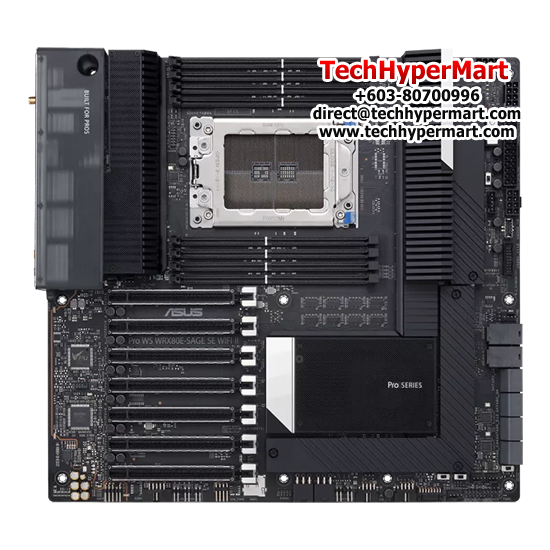

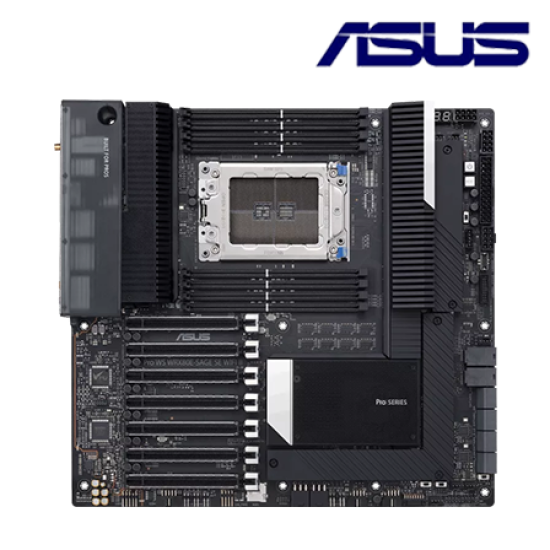

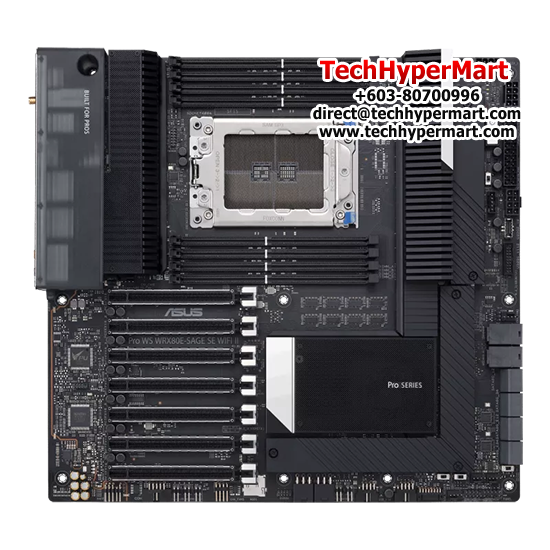

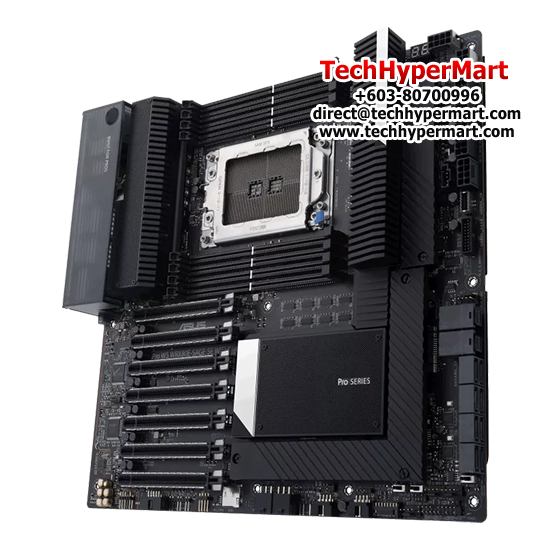

Name: Asus PRO WS WRX80E-SAGE SE WIFI II Motherboard (E-ATX, AMD WRX80 Chipset, Socket SWEX8, DDR4 memory compatibility)
Brand: Asus
SKU: PRO WS WRX80E-SAGE SE WIFI II
Price: 5009.00 MYR
Availability: InStock

Asus PRO WS WRX80E-SAGE SE WIFI II Motherboard (E-ATX, AMD WRX80 Chipset, Socket SWEX8, DDR4 memory compatibility)

Description

PRODUCT DESCRIPTION

Asus PRO WS WRX80E-SAGE SE WIFI II Motherboard

E-ATX | AMD WRX80 Chipset | Socket SWRX8 | DDR4 memory compatibility

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
* All Prices Exclude delivery/installation/activation fees. *

PACKAGE CONTENTS

Motherboard

ADDITIONAL INFORMATION

View Official Website

Warranty
- 1 years Asus Warranty
- Manufactured and warranty provided by Asus

PRODUCT SPECIFICATIONS

Model	PRO WS WRX80E-SAGE SE WIFI II
CPU	AMD Socket sWRX8 for AMD Ryzen™ Threadripper™ PRO Series Processors* * Refer to www.asus.com for CPU support list.
Chipset	AMD WRX80 Chipset
Memory	8 x DDR4 8 x DIMM, Max. 2048GB, DDR4 Non-ECC and ECC Unbuffered DIMM* 8 x DIMM, Max. 2048GB, DDR4 ECC R-DIMM and LR-DIMM* 8 Channel Memory Architecture * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Graphics	AMD Ryzen™ Threadripper™ PRO Series Processors 7 x PCIe 4.0/3.0 x16 slot(s)* * Support PCIe bandwidth bifurcation for RAID on CPU function.
Multi-GPU Support	Supports NVIDIA 4-Way/3-Way/2-Way SLI® Technology
Storage	Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports AMD Ryzen™ Threadripper™ PRO Series Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices* AMD WRX80 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices* 4 x SATA 6Gb/s ports ASMedia ASM1061 Controller 4 x SATA 6Gb/s ports Supports NVMe RAID configurations via M.2 storages The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is purchased separately Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports AMD Ryzen™ Threadripper™ PRO Series Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices AMD WRX80 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices* 4 x SATA 6Gb/s ports ASMedia ASM1061 Controller 4 x SATA 6Gb/s ports Supports NVMe RAID configurations via M.2 storages *The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is purchased separately.
Ethernet	1 x Intel® X550-AT2 dual 10Gb Ethernet
Wireless & Bluetooth	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3** * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 9 x USB 3.2 Gen 2 ports (8 x Type-A + 1 x USB Type-C®) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (suppport USB Type-C®) 1 x USB 3.2 Gen 1 header support additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio	Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback
Back I/O Ports	1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C®) 1 x Wi-Fi Module 2 x Intel® X550-AT2 dual 10Gb Ethernet ports 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 6 x 4-pin Chassis Fan header(s) 1 x VRM heatsink Fan header 1 x Chipset Fan header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 2 x 6-pin PCIe Graphics Card connector 1 x 8-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 8 x SATA 6Gb/s ports 2 x U.2 slots USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports BMC Related 1 x BMC switch 1 x IPMI switch 1 x Messange LED header 1 x Micro SD card socket 2 x LAN LED header(s) 1 x Location LED header 1 x Location button header 1 x PSU_SMB header 1 x SMART_PSU switch 1 x VGA switch 1 x VGA header 1 x VPP_I2C header Miscellaneous 1 x COM Port header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x RTC Battery header 1 x Thermal Sensor header
Special Features	ASUS Q-Design - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot Bespoke Motherboard Design & Business Focused Features - Event Log in ASMB9-iKVM - 24/7 Reliability - Overcurrent Protection ASMB9-iKVM for KVM-over-Internet
Software Features	ASUS Exclusive Software Armoury Crate ASUS CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS:X® Ultra Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Operating System	Windows® 11 Windows® 10 64-bit
Form Factor	EATX(EEB) Form Factor 12.2 inch x 13 inch ( 30.98 cm x 33.02 cm )
Prices, Features, Package Content and Specifications are subject to change without prior notification.

Asus PRO WS WRX80E-SAGE SE WIFI II Motherboard (E-ATX, AMD WRX80 Chipset, Socket SWEX8, DDR4 memory compatibility)

Specifications
Reviews

Motherboard Specifications
Motherboard Chipset	AMD WRX80 Chipset
Motherboard CPU Socket	sWRX8
Motherboard Processor Interface	AMD
Motherboard Processors Supported	AMD Socket sWRX8 for AMD Ryzen™ Threadripper™ PRO Series
Motherboard Memory
Motherboard Max Memory	2048GB
Motherboard Memory Channel	-
Motherboard RAM DIMM	8
Motherboard RAM Type	DIMM
Motherboard Dimensions
Motherboard Dimension	30.98 cm x 33.02 cm
Motherboard Form Factor	E-ATX
