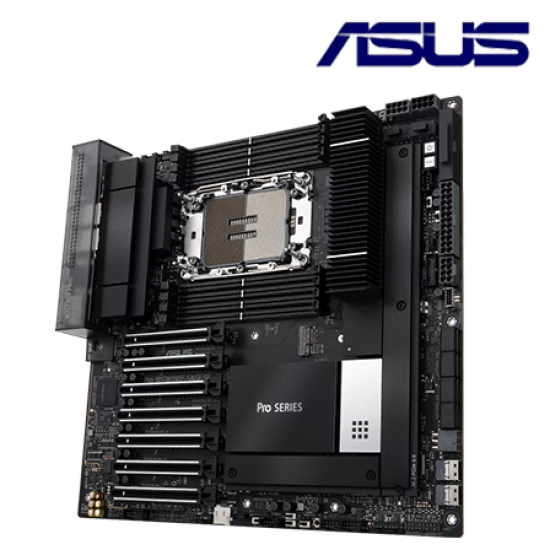

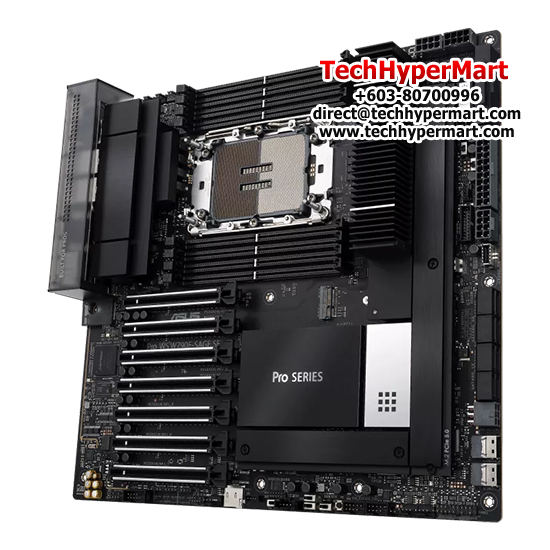

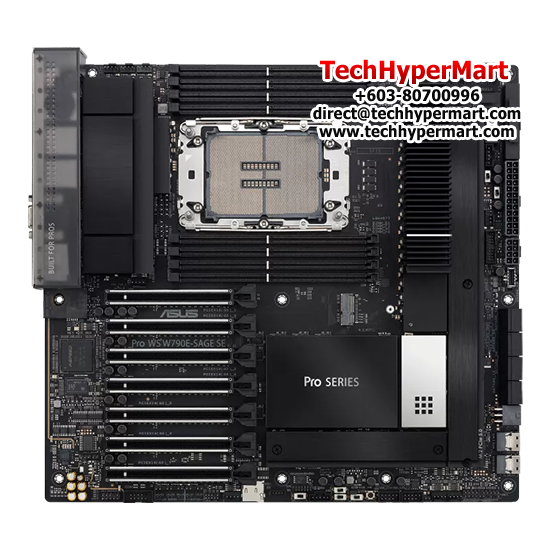

Name: Asus PRO WS W790E-SAGE SE Motherboard (EEB, Intel W790 Chipset, Socket LGA4677, DDR5 memory compatibility)
Brand: Asus
SKU: PRO WS W790E-SAGE SE
Price: 5449.00 MYR
Availability: InStock

Asus PRO WS W790E-SAGE SE Motherboard (EEB, Intel W790 Chipset, Socket LGA4677, DDR5 memory compatibility)

Description

PRODUCT DESCRIPTION

Asus PRO WS W790E-SAGE SE Motherboard

EEB | Intel W790 Chipset | Socket LGA4677 | DDR5 memory compatibility

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
* All Prices Exclude delivery/installation/activation fees. *

PACKAGE CONTENTS

Motherboard

ADDITIONAL INFORMATION

View Official Website

Warranty
- 1 years Asus Warranty
- Manufactured and warranty provided by Asus

PRODUCT SPECIFICATIONS

Model	PRO WS W790E-SAGE SE
CPU	Intel® Socket LGA4677 for Xeon® W-3400 and W-2400 Series Processors* Supports Intel® Turbo Boost Max Technology 3.0 * Refer to www.asus.com for CPU support list.
Chipset	Intel® W790 Chipset
Memory	8 x DIMM slots, Max. 2048GB, DDR5 6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 ECC Registered Memory* 8-Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
Graphics	1 x VGA port from AST2600
Expansion Slots	Intel® Xeon® W-3400 Series Processors* 7 x PCIe 5.0 slot(s) (Seven at x16/x16/x16/x16/x16/x8/x16)** Intel® Xeon® W-2400 Series Processors* 4 x PCIe 5.0 slot(s) (Four at x16/x16/x16/x16)** * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** Please refer to the block diagrams in the Appendix for more details. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Total supports 3 x M.2 slots, 2 x SlimSAS slots and 8 x SATA 6Gb/s ports* Intel® Xeon® W-3400 Series Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)* M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)* Intel® W790 Chipet** M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) SlimSAS_1 port supports PCIe 4.0 x4 mode NVMe device SlimSAS_2 port supports PCIe 4.0 x4 mode NVMe device 8 x SATA 6Gb/s ports * Supports Intel® Virtual RAID on CPU (Intel® VROC) and Intel Volume Management Device (Intel®VMD) Intel® VROC Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC_HW_Key is purchased separately. * M.2_1 and M.2_2 slots will be disabled once an Intel® Xeon® W-2400 Series Processor is installed.
Ethernet	1 x Intel® dual 10Gb Ethernet 1 x Realtek 1Gb Ethernet ASUS LANGuard
USB	Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C®) 2 x USB 2.0 port(s) (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
Audio	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Back I/O Ports	1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C®) 2 x USB 2.0 port(s) (2 x Type-A) 1 x VGA port 2 x Intel® dual 10Gb Ethernet ports 1 x Realtek 1Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 5 x 4-pin Chassis Fan header(s) 1 x W_PUMP+ header(s) Power related 2 x 24-pin Main Power connector 4 x 8-pin +12V Power connector 1 x 8-pin PCIe Power connector 1 x 6-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 2 x SlimSAS connector(s) 8 x SATA 6Gb/s ports 1 x VROC Key connector USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C® ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 1 x COM Port header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 1 x M.2 slot (Key E) 1 x ReTry button 1 x Safe Boot button 1 x SPI TPM header (14-1pin) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header BMC Related 1 x BMC switch 1 x VGA switch 1 x BMC LAN fixed IP switch 1 x IPMI switch 2 x Q_PSU switch 2 x PSU SMBus header 1 x Front panel location LED header 1 x Location button header 1 x VPP_I2C header 1 x Micro SD card socket 1 x BMC_T_SENSOR header 1 x BMC LED 1 x Location LED 1 x Message LED header
Special Features	Extreme OC Kit - FlexKey button - LN2 Mode - ReTry button - Safe boot button - Start button Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - Steel backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Caterr1 LED - Box Headers - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection
Software Features	ASUS Exclusive Software Armoury Crate - Fan Xpert 4 AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash Utility FlexKey
BIOS	512 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE (UEFI mode)
Operating System	Windows® 11, Windows® 10 64-bit
Form Factor	EEB Form Factor 12 inch x 13 inch (30.5 cm x 33 cm)
Prices, Features, Package Content and Specifications are subject to change without prior notification.

Asus PRO WS W790E-SAGE SE Motherboard (EEB, Intel W790 Chipset, Socket LGA4677, DDR5 memory compatibility)

Specifications
Reviews

Motherboard Specifications
Motherboard Chipset	Intel® W790 Chipset
Motherboard CPU Socket	LGA4677
Motherboard Processor Interface	Intel
Motherboard Processors Supported	Intel® Socket LGA4677 for Xeon® W-3400 and W-2400 Series Processors* Supports Intel® Turbo Boost Max Technology 3.0 * Refer to www.asus.com for CPU support list.
Motherboard Memory
Motherboard Max Memory	2048GB
Motherboard Memory Channel	-
Motherboard RAM DIMM	8
Motherboard RAM Type	DIMM
Motherboard Dimensions
Motherboard Dimension	30.5 cm x 26.67 cm
Motherboard Form Factor	EEB
