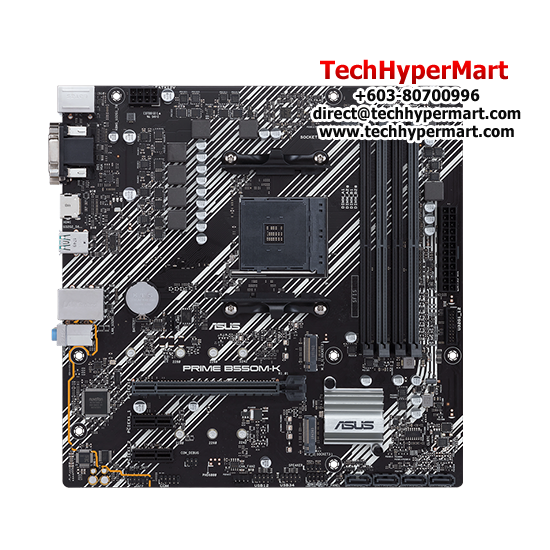

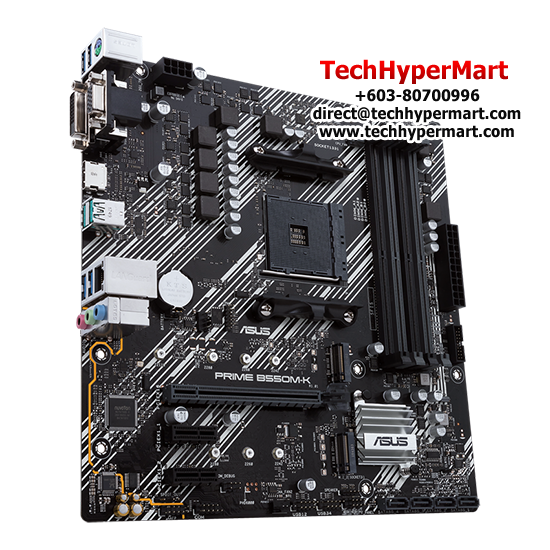

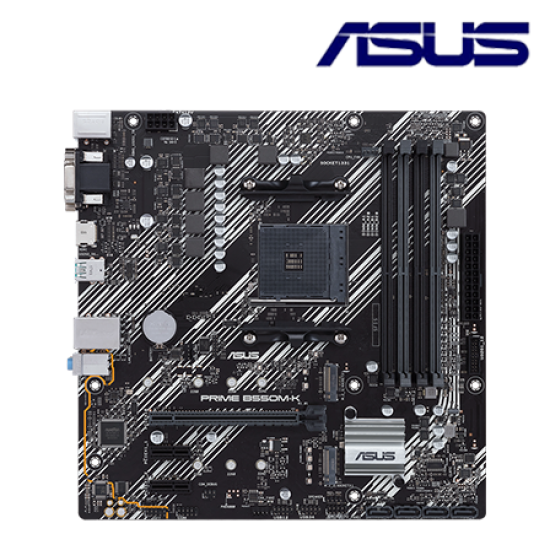

Name: Asus PRIME B550M-K-CSM Motherboard (mATX, AMD B550 Chipset, Socket AM4, DDR4 memory compatibility)
Brand: Asus
SKU: PRIME B550M-K-CSM
Price: 519.00 MYR
Availability: InStock

Asus PRIME B550M-K-CSM Motherboard (mATX, AMD B550 Chipset, Socket AM4, DDR4 memory compatibility)

Description

PRODUCT DESCRIPTION

Asus PRIME B550M-K-CSM Motherboard

mATX | AMD B550 Chipset | Socket AM4 | DDR4 memory compatibility

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
* All Prices Exclude delivery/installation/activation fees. *

PACKAGE CONTENTS

Motherboard

ADDITIONAL INFORMATION

View Official Website

Warranty
- 1 years Asus Warranty
- Manufactured and warranty provided by Asus

PRODUCT SPECIFICATIONS

Model	PRIME B550M-K-CSM
CPU	AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors , Refer to www.asus.com for CPU support list
Chipset	AMD B550
Memory	4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory , Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.,ECC Memory (ECC mode) support varies by CPU.,Dual Channel Memory Architecture
Graphics	1 x HDMI 2.1(4K@60HZ),*Graphics specifications may vary between CPU types.
Expansion Slots	AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors,AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors,AMD B550 Chipset,2 x PCIe 3.0 x1,1 x PCIe 4.0 x16 (x16 mode),1 x PCIe 3.0 x16 (x16 mode)
Storage	AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors : ,AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : ,Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports,1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support,AMD B550 Chipset : ,4 x SATA 6Gb/s port(s),,Support Raid 0, 1, 10,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
Ethernet	Realtek RTL8111H 1Gb Ethernet,ASUS LANGuard
USB	4 x USB 2.0 port(s)(4 x Type-A),Front USB Port ( Total 6 ),Rear USB Port ( Total 6 ),2 x USB 3.2 Gen 2 port(s)(2 x Type-A),4 x USB 3.2 Gen 1 port(s)(4 x Type-A),2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
Audio	Realtek ALC887/8977.1 Surround Sound High Definition Audio CODEC ,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- LED-illuminated design,- Audio Shielding,- Dedicated audio PCB layers,- Premium Japanese audio capacitors,Audio Feature :, Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Back I/O Ports	2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A),4 x USB 3.2 Gen 1 (blue) Type-A,1 x PS/2 keyboard/mouse combo port(s),1 x DVI-D,1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),3 x Audio jack(s)
Internal I/O Ports	1 x COM port header,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),1 x CPU Fan connector(s),2 x Chassis Fan connector(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x SPI TPM header,4 x SATA 6Gb/s connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin EATX 12V Power connectors,1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s),1 x System panel connector,1 x COM port header,1 x Speaker connector,1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode),1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
Special Features	ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Software Features	ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE,WOL by PME, PXE
Operating System	Windows® 10 64-bit
Form Factor	mATX Form Factor,9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Prices, Features, Package Content and Specifications are subject to change without prior notification.

Asus PRIME B550M-K-CSM Motherboard (mATX, AMD B550 Chipset, Socket AM4, DDR4 memory compatibility)

Specifications
Reviews

Motherboard Specifications
Motherboard Chipset	AMD B550 Chipset
Motherboard CPU Socket	AM4
Motherboard Processor Interface	AMD
Motherboard Processors Supported	AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors , Refer to www.asus.com for CPU support list
Motherboard Memory
Motherboard Max Memory	128GB
Motherboard Memory Channel	-
Motherboard RAM DIMM	4
Motherboard RAM Type	DIMM
Motherboard Dimensions
Motherboard Dimension	24.4 cm x 24.4 cm
Motherboard Form Factor	mATX
