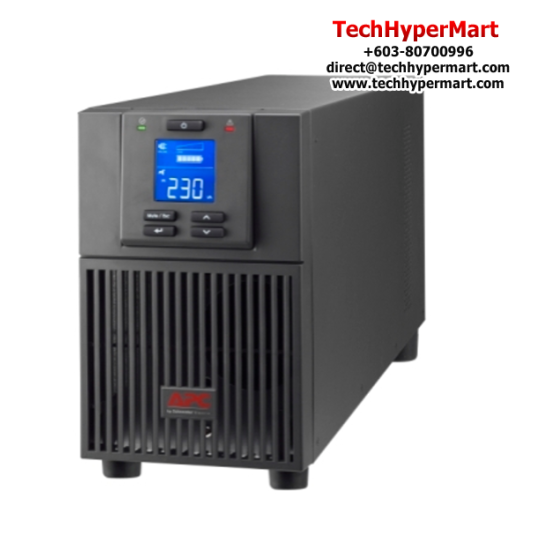

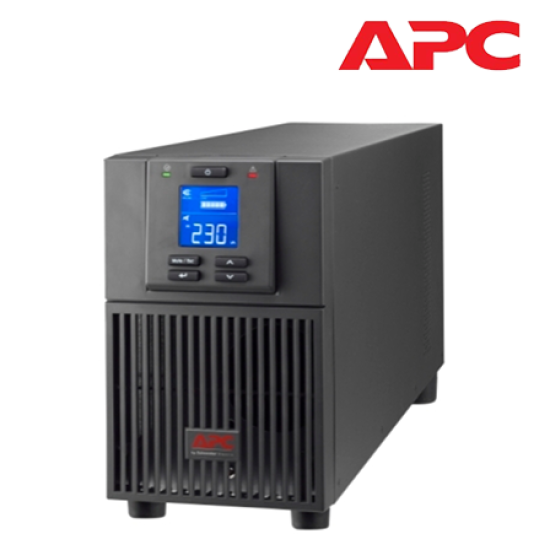

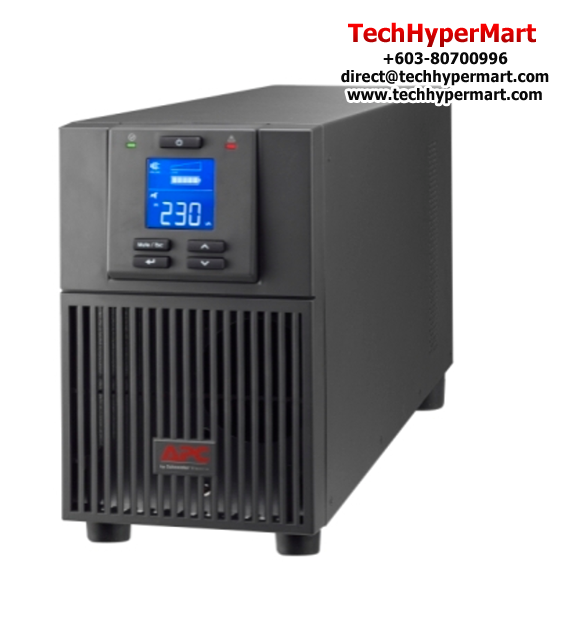

Name: APC SRV2KI-E UPS (1800VA, 230Watts, RJ-45 Serial, USB)
Brand: APC
SKU: SRV2KI-E
Price: 2679.00 MYR
Availability: InStock

APC SRV2KI-E UPS (1800VA, 230Watts, RJ-45 Serial, USB)

Description

PRODUCT DESCRIPTION

APC SRV2KI-E UPS

1800VA | 230Watts | RJ-45 Serial, USB

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

ADDITIONAL INFORMATION

View Official Website

Warranty
- 2 year APC Manufacturer Limited Warranty
- TechHyperMart Products

SPECIFICATIONS

Model	SRV2KI-E

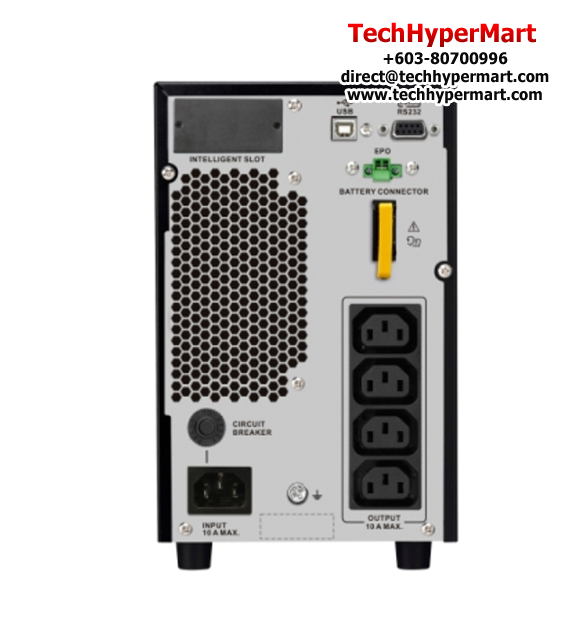

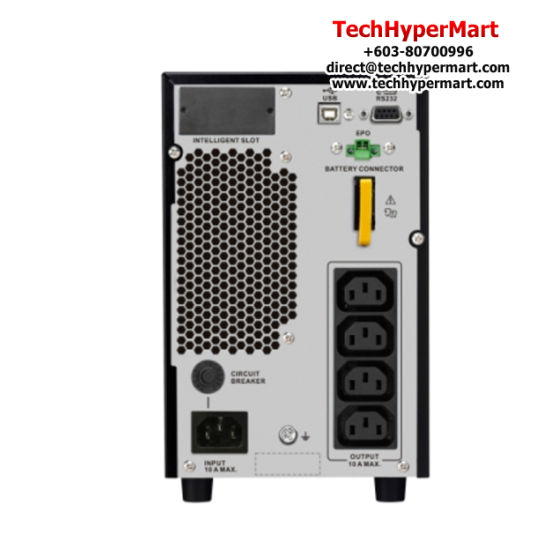

Specifications	Main Main Input Voltage 230 V Other Input Voltage 220 V 240 V Main Output Voltage 230 V Other Output Voltage 220 V 240 V rated power in W 1800 W rated power in VA 2000 VA plug standard IEC 60320 C14 nb of power socket outlets 4 IEC 60320 C13 cable length 1.5 m number of cables 1 provided equipment Basic UPS signalling RS-232 cable USB cable Rack mounting brackets User manual IEC-C14 - Shuko input power cord C13-C14 power cord General max runtime 3 min Number of power module filled slots 0 Number of power module free slots 0 redundant No Physical colour Black height 23.8 cm width 14.5 cm depth 40 cm net weight 17.0 kg mounting location Front mounting preference No preference mounting mode Not rack-mountable USB compatible Yes mounting position Vertical Input input voltage limits 110...285 V half load 180...285 V full load network frequency 40...70 Hz auto sensing Output Maximum configurable power in VA 2000 VA Maximum configurable power in W 1800 W output frequency 50/60 Hz +/- 3 Hz sync to mains harmonic distortion 3 % UPS type Double conversion online Wave type Sine wave efficiency 88 % (full load) additional information Configurable for 220 : 230 or 240 nominal output voltage bypass type Internal bypass (automatic and manual) crest factor 3 : 1 Conformance product certifications CE standards EN/IEC 62040-1 EN/IEC 62040-2 Environmental ambient air temperature for operation 0…40 °C relative humidity 0…95 % non-condensing operating altitude 0...3000 m ambient air temperature for storage -20…50 °C storage Relative Humidity Non-condensing 0…95 % storage altitude 0…15000 m acoustic level 50 dBA IP degree of protection IP20 Batteries & Runtime battery type Lead-acid battery battery voltage 48 V number of battery filled slots 0 number of battery free slots 0 Battery recharge time 4 h battery life 3…5 year(s) battery charger power 70 W rated Communications & Management alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm control panel Multifunction LCD status and control console free slots 1 Surge Protection and Filtering Surge energy rate 945 J
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*

APC SRV2KI-E UPS (1800VA, 230Watts, RJ-45 Serial, USB)

Specifications
Reviews

AVR / UPS Specifications
AVR / UPS Backup Time	-
AVR / UPS Capacity	230Watts
AVR / UPS Output	1800V
AVR / UPS Protection
AVR / UPS Protection	-
AVR / UPS Dimensions
AVR / UPS Dimension	height 23.8 cm width 14.5 cm depth 40 cm
AVR / UPS Weight	17.0 kg
