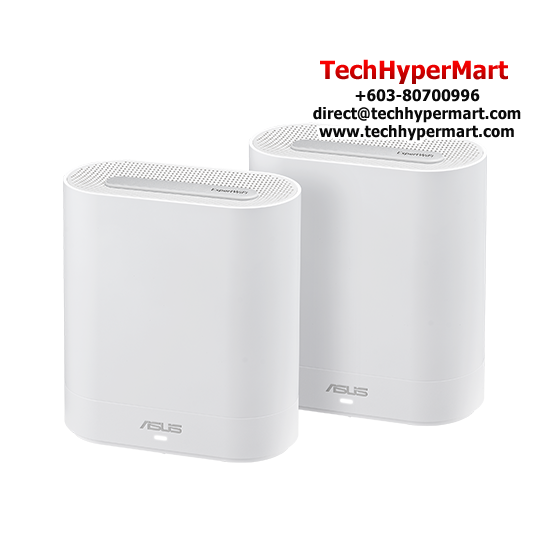

Name: Asus EBM68W-2P WiFi System (800Mbps, Internal antenna x 6, 256MB Flash, 1GB RAM)
Brand: Asus
SKU: EBM68W-2P
Price: 2489.00 MYR
Availability: InStock

Asus EBM68W-2P WiFi System (800Mbps, Internal antenna x 6, 256MB Flash, 1GB RAM)

Description

PRODUCT DESCRIPTION

Asus EBM68W-2P WiFi System

800Mbps | Internal antenna x 6 | 256MB Flash, 1GB RAM

* Please Call for order to make sure stock are ready. *
* Images & product color may vary from actual products.*
*All Prices Exclude delivery/installation/activation fees.*

PACKAGE CONTENTS

WiFi System

ADDITIONAL INFORMATION

View Official Website

Warranty
- 3 Year Asus Warranty
- Manufactured and warranty provided by Asus

SPECIFICATIONS

Model	EBM68W-2P
Network Standard	IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6
Product Segment	AX7800 ultimate AX performance : 574+2402+4804Mbps
WiFi Data Rate	802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 300 Mbps WiFi 5 (802.11ac) (1024QAM): up to 4333Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps WiFi 6 (802.11ax) (5GHz-1) : up to 2402Mbps WiFi 6 (802.11ax) (5GHz-2) : up to 4804Mbps
Antenna	Internal antenna x 6
Transmit/Receive	2.4GHz 2x2 5GHz-1 2x2 5GHz-2 4x4
Processor	1.7 GHz quad-core processor
Memory	256 MB Flash 1 GB RAM
Boosts speed	OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
Operating Frequency	2.4 GHz 5 GHz-1 5 GHz-2
Operating Mode	Wireless Router Mode AiMesh Node Mode Access Point Mode
Ports	RJ45 for 2.5G BaseT for WAN x 1 RJ45 for Gigabits BaseT for LAN x 3 USB 3.2 Gen 1 x 1
Button	WPS Button Reset Button Power Switch
LED Indicator	Power x 1
Power Supply	AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 3 A current Mounting Wall Mount
Weight	808g
Product Dimensions	167x77x186 mm
AiMesh	AiMesh • Primary AiMesh Router • AiMesh Node
AiProtection	VPN WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise WPS Let's Encrypt DNS-over-TLS SSH Firewall • Maximum Firewall Keyword Filter :64 • Maximum Firewall Network Service Filter :32 • Maximum Firewall URL Filter : 64 AiProtection AiProtection Pro • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking
Parental Control
Traffic Control	• Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Website History
Wireless	UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler USB application 4G / 5G Auto Mobile Tethering Media Server Samba Server FTP Server Shared Folder Privileges User Interface WEB: ASUSWRT APP: ASUS ExpertWiFi APP Management Multiple Site Management Administration Configuration Backup and Restore Diagnosis Tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update
WAN	Internet Connection Type • PPPoE • PPTP • L2TP • Automatic IP • Static IP • IPSec Dual WAN 3G / 4G LTE Dongle 4G / 5G Auto Mobile Tethering Port Forwarding Port Triggering DMZ DDNS NAT Passthrough • PPTP Pass-Through • L2TP Pass-Through • IPSec Pass-Through
LAN	DHCP Server IGMP Snooping IPTV LAN Link Aggregation VLAN
VPN	Captive Portal for Free WiFi VPN WiFi WiFi Scheduling: One Time Access WiFi Scheduling: Weekly Schedule WiFi share: QR code, PDF file Bandwidth Limiter AP isolate DNS Server Connection Security VPN Client L2PT VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion Support Surfshark Traffic Control Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*

Asus EBM68W-2P WiFi System (800Mbps, Internal antenna x 6, 256MB Flash, 1GB RAM)

Specifications
Reviews

Networking Specifications
Networking Antennas	Internal antenna x 6
Networking Frequency	800Mbps
Networking Operation mode	Wireless Router Mode AiMesh Node Mode Access Point Mode
